- Page 1 SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide Doc. No. 002-09737 Rev. *B Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 http://www.cypress.com...
- Page 2 Copyrights Copyrights © Cypress Semiconductor Corporation, 2015-2017. This document is the property of Cypress Semiconductor Corporation and its subsidiaries, including Spansion LLC (“Cypress”). This document, including any software or firmware included or referenced in this document (“Software”), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries worldwide.
-
Page 3: Table Of Contents
Contents Introduction ..................................4 Windows USB Driver Installation ..........................6 Install the Virtual Communication Port ........................7 Powering SK-FM4-176l-S6E2CC Starter Kit ......................... 8 Run PCB Board Test Demonstration ........................... 9 Additional Resources ..............................12 Revision History ................................... 13 Document Revision History ............................13 SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. -
Page 4: Introduction

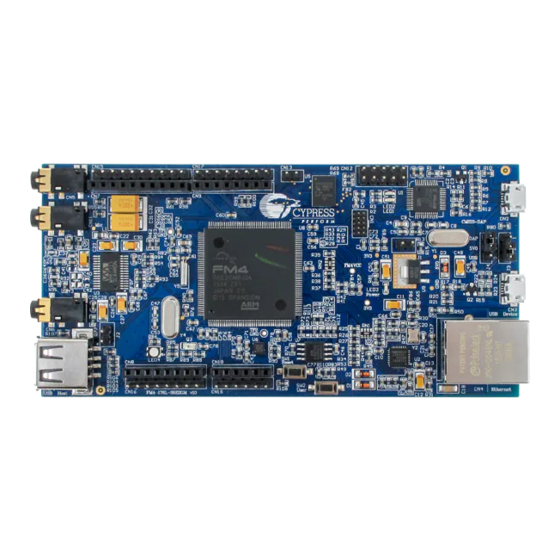

1. Introduction ® SK-FM4-176L-S6E2CC Starter Kit provides a low-cost solution to quickly start development on an ARM ® Cortex -M4 microcontroller. The board features peripheral devices to demonstrate the features of the FM4 S6E2CCA microcontroller. It also has an Arduino-compatible interface to connect with shields, making application development options limitless. - Page 5 Introduction RGB LED Acceleration Sensor Phototransistor User Button Arduino-compatible interface 10-pin JTAG interface (*SK-FM4-176L-S6E2CCA-ETH, *SK-FM4-176L-S6E2CCA Setup Requirements: PC with USB interface, Windows OS 7, or later SK-FM4-176L-S6E2CCAstarter kit with USB cable (A/micro-B) ...
-
Page 6: Windows Usb Driver Installation
2. Windows USB Driver Installation SK-FM4-176L-S6E2CCA Windows USB drivers that are specific to the starter kit need to be installed to run the virtual communication port. Follow these instructions to install the Windows USB drivers. SK-FM4-176L-S6E2CCA In the downloaded _CDvnn* (*version number) folder browse to /drivers/driverinstaller.exe and run the application. -
Page 7: Install The Virtual Communication Port
3. Install the Virtual Communication Port The SK-FM4-176L-S6E2CCA _CDvnn* download includes a serial communication terminal, Cypress Serial Port Viewer and Terminal, for the communication interface. Follow these instructions to install. Open the SK-FM4-176L-S6E2CCA _CDvnn folder and browse to /tools/serial port viewer/setup.exe and run the application. -
Page 8: Powering Sk-Fm4-176L-S6E2Cc Starter Kit
4. Powering SK-FM4-176l-S6E2CC Starter There are two options for powering the SK-FM4-176L-S6E2CCA starter kit. This document will use the USB connection at either CN2. Connect the USB cable to CN2 to power the board. The green power LED3 will illuminate. If it does not, ensure that jumper J4 is in 1-2 position as shown below. SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. -
Page 9: Run Pcb Board Test Demonstration
5. Run PCB Board Test Demonstration The pre-programmed demonstration tests the on-board features for proper functionality. The application will already be running in the S6E2CCA microcontroller when the SK-FM4-176L-S6E2CCA starter kit is powered on. Follow these instructions to connect the virtual communication port created by test application to the Cypress Serial Port Viewer and Terminal. - Page 10 Run PCB Board Test Demonstration Set the baud rate to 115200 in the drop down menu and click disconnected above the green arrow to connect. Once the terminal is connected, press enter on PC keyboard and the welcome message will display. To run each of the tests enter the number next to the test description and follow the prompts.
- Page 11 Run PCB Board Test Demonstration To run the Audio test, CN5 needs to have a headphone set connected. To run the microphone test, leave the headphones connected to CN5 and connect a microphone at CN11. Any noise into the microphone will be repeated in the headphones. If any issue or failureis encountered, ensure all jumpers are in default position as listed: ...
-
Page 12: Additional Resources
6. Additional Resources ® ® The S6E2CCAMCU with ARM Cortex -M4 core is part of Cypress’s FM4 Family of microcontrollers. The SK- FM4-176L-S6E2CCA_CDvnndownload folder includes additional resources for users to easily and quickly develop their own applications on Cypress’s FM4 Family of microcontrollers: ... -
Page 13: Revision History
Revision History Document Revision History Document Title: SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide Document Number: 002-09737 Revision Issue Date Origin of Description of Change Change 07/14/2015 JHHO Initial release 06/14/2016 JHHO Migrated Spansion Guide from MCU-176L-S6E2CC to Cypress format 06/02/2017 AESATMP9 Updated logo and copyright. - Page 14 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for category: Development Boards & Kits - ARM Click to view products by manufacturer: Cypress Other Similar products are found below : SAFETI-HSK-RM48 PICOHOBBITFL CC-ACC-MMK-2443 EVALSPEAR320CPU TMDX570LS04HDK TXSD-SV70 TXSD-SV71 YGRPEACHNORMAL PICODWARFFL YR8A77450HA02BG 3580 VISIONSTK-6ULL V.2.0 DEV-17717 EAK00360 YR0K77210B000BE RTK7EKA2L1S00001BE SLN-VIZN-IOT 1410 LPC-H2294 CHIPKIT WI-FIRE QC-DB-H00003 2125 2126 EVALSP1310CPU ATSAM4C32-EK ATSAM4CMP32-DB ATSAM4CMS32-DB ATSAM4CP16C-EK ATSAM4S-WPIR-RD...
