Setting up:

• Unscrew the top cap of the fog fluid tank and remove to fill with the selected fog fluid.
• Replace the cap and close securely, ensuring the pipe is fed down to the bottom of the bottle so that a consistent
flow of fluid is supplied to the machine.
• Connect the supplied wireless remote receiver to the 5-pin DIN connector on the rear panel.
• Connect the IEC mains lead supplied to the rear mains inlet.
• If controlling via DMX, connect the incoming DMX control signal via the 3-pin or 5-pin XLR labelled DMX IN.
• Connect any further DMX equipment to the relevant XLR outlet labelled DMX OUT.
• Set the DMX start address using the rear control panel.
• Switch the mains power on and the machine will begin to heat up and display "Warming up". Heat up time for
fog effect is usually between 8-10 minutes. When the machine is ready for use "Ready to fog" will be displayed.
• During prolonged use, periodically check that the fluid level is not empty.
• Switch off when not in use. Unplug from mains if not in use for long periods.
• This unit is fitted with a failsafe to prevent damage to the pump and heater when the fluid levels are exhausted.
When the screen displays "No Fluid" you need to reset the unit before topping up and using again.
Warning: There will be hot surfaces on the housing even after the machine is switched off

Menu display instructions:

• On start up the display will read "Warming Up", when it is ready to fog it will display "Ready To Fog"
• Interval Set: Fog interval timing set up (1-200s)
• Duration Set: Fog duration timing set up: (1-200s)
• DMX 512 Add: DMX address setup (1-512)
• Volume Out: Select the required fog volume (1-100)
• Red Colour: Select the required brightness (0-253)
• Green Colour: Select the required brightness (0-253)
• Blue Colour: Select the required brightness (0-253)
•
Glint: Select strobe effect - slow to fast (0-255)
• Skip: Select colour skip speed - slow to fast (0-255)
• Gradual: Select colour fade speed - slow to fast (0-255)

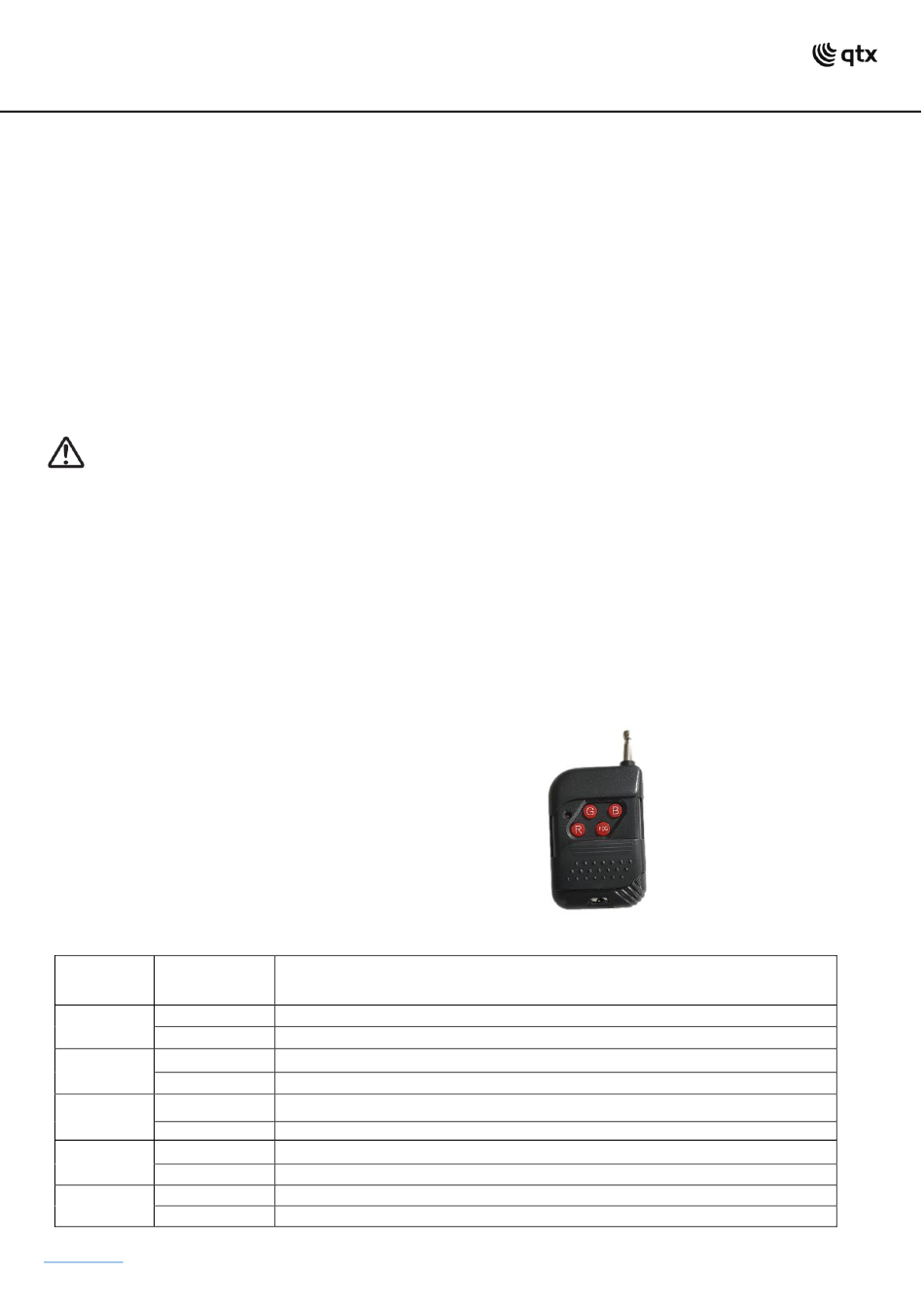

Wireless remote control:

R: Red LED control
G: Green LED control
B: Blue LED control
FOG: Press and release for fog on demand

DMX operation:

Channel Value
CH1 0-5
6-255
CH2 0-5
6-255
CH3 0-5
6-255
CH4 0-5
6-255
CH5 0-5
6-255
www.avsl.com
Content
No fog
Fog low to high
Invalid
Red LED low to high
Invalid
Green LED low to high
Invalid
Blue LED low to high
Invalid
Strobe effect slow to fast
160.478UK User Manual
