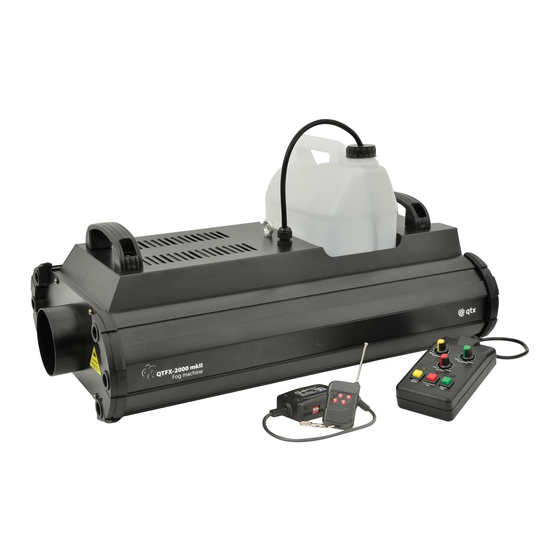

- Page 1 QTFX-2000 mkII HIGH POWER FOG MACHINE Item ref: 160.473UK User Manual...
- Page 2 To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture. If liquids are spilled on areas other than inside the fluid tank, disconnect the mains, allow the QTFX-2000 mkII to dry out and have it checked by qualified service personnel before further use.
-
Page 3: Rear Panel
Placement The QTFX-2000 mkII has a built-in fluid container and should be operated in an upright position. Ensure that the QTFX-2000 mkII is positioned on a stable, non-slip surface. Allow adequate space for access to the controls and to avoid straining cables and connections. -
Page 4: Wireless Remote Control
You may now press the Manual (3) button for fog on demand – releasing button stops the fog effect When the ready indicator is off, the QTFX-2000 mkII needs time to re-heat and will not produce fog For constant fog effect, use the latching Continuous (2) button and the Continuous LED (6) will light ... -
Page 5: Specifications
Specifications Power supply 230Vac, 50Hz (IEC) Fuse F10A (5 x 20mm) Heating element 2000W Reheat time 8 to 10 mins (approx.) Fog output (approx.) 40,000 Cu Ft (1133m³)/ min Tank capacity Remote control Wireless remote, wired timer remote, DMX512 Remote cable length RF Remote frequency 433MHz DMX connection... - Page 6 160.473UK User Manual...
