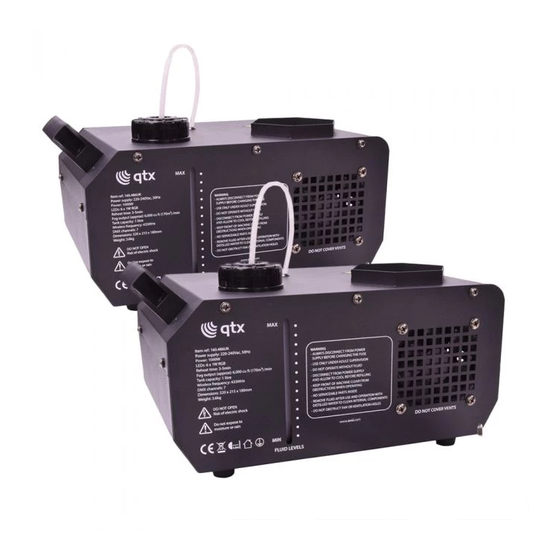

- Page 1 FLARE-1000 Item ref: 160.486UK User Manual LED Vertical Fog Machine Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 No user serviceable parts inside - do not open the case. Allow the FLARE-1000 to acclimatize to room temperature before operating. Placement The FLARE-1000 has a built-in fluid container and should be operated in an upright position. Ensure that the FLARE-1000 is positioned on a stable, non-slip surface. Safety •...
-
Page 3: Recommended Fluid
Premium Fog Fluid (clear) 5 Litre The FLARE-1000 has a labelled window in the side panel to show the fluid level in the bottle. Check this level periodically to ensure that the FLARE-1000 does not run empty. Use power supply with Earth connection and adequate current capacity for the unit... -
Page 4: Operation
After heat-up of 3-5 minutes, the green LED on the remote receiver will light. The FLARE-1000 is now ready to use. Operation DMX start address and LED light settings for the FLARE-1000 are made using the control panel and display (3, 4) as described below. Press MODE Press ... -
Page 5: Dmx Operation
DMX operation If a DMX signal is connected, the unit will operate from DMX as follows. DMX Channel Value Function CH1 (start address) 000-255 Fog volume setting (1%-100%) 000-255 RED 0%-100% dimming 000-255 Green 0%-100% dimming 000-255 Blue 0%-100% dimming 000-255 Strobe speed 0%-100% 000-030... - Page 6 160.486UK User Manual...
