Summary of Contents for Qtx QTFX-700 mkII

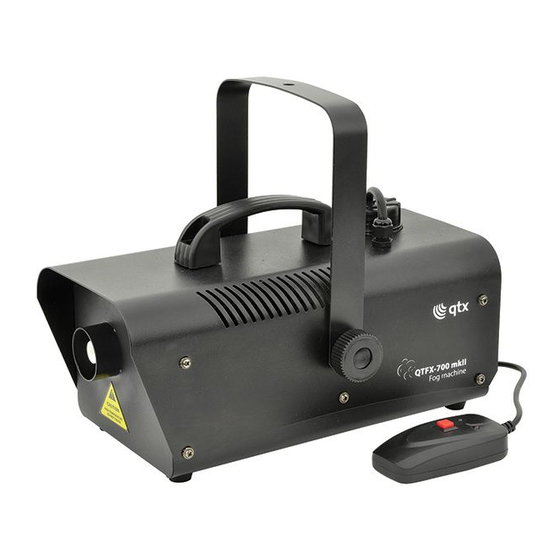

- Page 1 QTFX-700 mkII Item ref: 160.477UK User Manual Fog Machine...
- Page 2 Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the QTFX-700 mkII fog machine as part of your stage effects system. This product is designed to offer reliable fog and smoke effects for stage and theatre use.
-
Page 3: Operation
Placement The QTFX-700 mkII has a built-in fluid tank and should be operated in an upright position. If free-standing, ensure that the QTFX-700 mkII is positioned on a stable, non-slip surface. If mounted at height, use the integral bracket and it is advisable to add a safety cable. -
Page 4: Specifications
Specifications Power supply 240Vac, 50Hz Fuse F5A (5 x 20mm) Heating element 700W Tank capacity 0.9l Fog output (approx.) 15000 Cu Ft (425m³) / min (approx) Reheat time 5 - 8 minutes Remote control Momentary switch, IEC connection Dimensions 230 x 180 x 210mm Weight 3.2kg Troubleshooting... - Page 5 160.477UK User Manual...
