- Page 1 QTFX-V1 Item ref: 160.456UK User Manual Fog Machine...
- Page 2 Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the QTFX-V1 as part of your stage effects system. This machine is designed to provide powerful fog output and reliable service for spectacular stage effects.

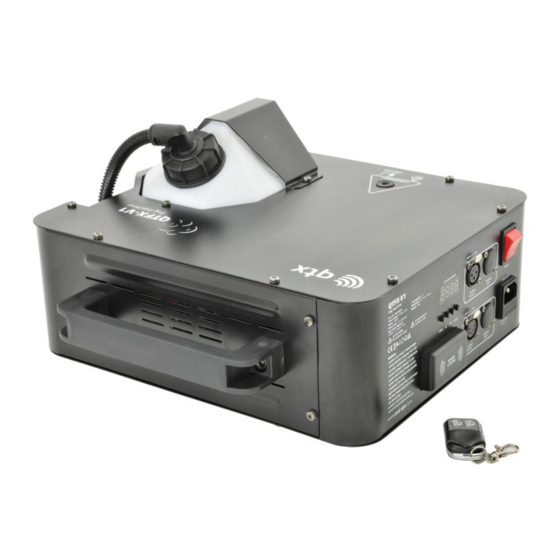

- Page 3 General layout Fluid tank filler cap Fluid tank safety retainer Carrying handle Fog output nozzle Wireless remote fob Connections LED display Power on/off Built-in wireless receiver IEC mains inlet DMX out (3-pin XLR) DMX out (5-pin XLR) DMX in (3-pin XLR) DMX in (5-pin XLR) Control panel MENU:...
- Page 4 Mounting to trussing If the QTFX-V1 is to be mounted to trussing, please follow the 4 steps shown below. Remove the fluid tank from the fog machine Turn the machine upside down and remove the 4 screws to release the bottle panel...
- Page 5 Once released, turn the machine around and fit the bottle panel on the top side securely. Turn the machine upside down again and fit the bottle securing the bottle lock. Fit your G Clamps in the highlighted M8 screw sockets. 160.456UK User Manual...
- Page 6 Setting up and operation The QTFX-V1 requires fog fluid to produce the effect. It is recommended to use one of the range of qtx fog fluids for best results. A chart for recommended fog fluids is included further along in this document ...
-
Page 7: Specifications
General maintenance To maintain optimum performance and minimize wear, the item should be cleaned frequently. Usage and environment are contributing factors in determining frequency. As a general rule, fixtures should be cleaned after use to avoid dust build-up and blockages, which can result in poor performances, overheating and breakages. - Page 8 160.456UK User Manual...
