Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

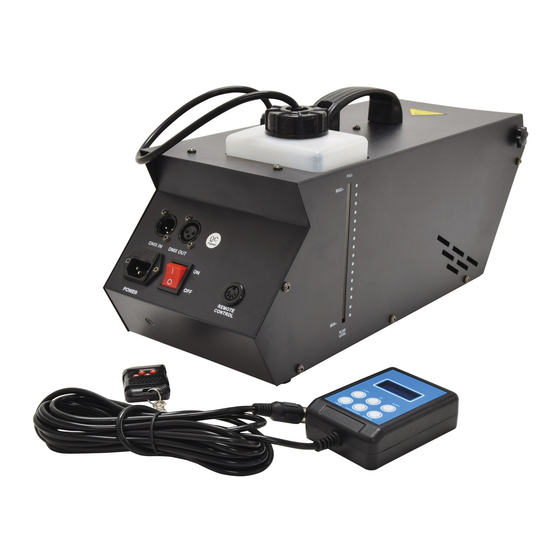

The HZ-800 is a high efficiency 800W haze machine capable of producing 12,000 cu.ft per
minute of haze to rapidly fill venues. The volume and speed of fill can be easily controlled
using the included wired controller with LCD panel or keyfob-style RF wireless remote. For
automated operation, a 2 channel DMX connection is also available. The fluid bottle can be
removed for easy refilling and there is a slot window to indicate the current fluid level.
•
800W Haze Vaporiser
•
Haze output ~12,000 cu.ft/min
•
Wired Controller with button control and LCD display
•
433Mhz keyfob-style RF wireless remote
•
2-Channel DMX connections
•
Removable fluid tank
In the box:
Please check the contents to ensure that the product has been received in good condition.
•
HZ-800 Haze Machine
•
Wired Controller
•
RF Remote Control
If you find any accessory is missing or the machine has arrived with damage, please contact
your local dealer at once. Do not try to fix this item yourself or you will invalidate the
warranty. Please keep the original packaging and invoice for any possible replacement or
return demands.
Warnings:
1.
To prevent risk of fire or electric shock, do not expose electrical parts to rain or
moisture.
www.avsl.com
HAZE MACHINE
Order ref: 160.498UK
•
UK Mains Lead
•
User Guide
HZ-800
User Manual
160.498UK Manual
Advertisement
Related Manuals for Qtx HZ-800
Summary of Contents for Qtx HZ-800
- Page 1 Damage caused by misuse is not covered by the warranty The HZ-800 is a high efficiency 800W haze machine capable of producing 12,000 cu.ft per minute of haze to rapidly fill venues. The volume and speed of fill can be easily controlled using the included wired controller with LCD panel or keyfob-style RF wireless remote.
- Page 2 No user serviceable parts inside - do not open the case. Allow the unit to acclimatise to room temperature before operating. The HZ-800 has a built-in fluid container and should be operated in an upright position. Ensure that the unit is positioned on a stable, non-slip surface.
- Page 3 Setting Up: Unpack the HZ-800 unit. Unscrew the top cap of the tank and remove to fill with haze fluid. Replace the bottle and screw the cap securely, making sure that the pipe is fed down to the bottom of the bottle to ensure a consistent flow of fluid.
- Page 4 If the LCD panel display is showing the DMX address, the unit will operate from DMX control as follows: Channel 1 (start address) 1-255 Pump control 1-100% Channel 2 (start address +1) 0-255 Fan speed slow to fast Specifications: Power supply 220-240Vac, 50/60Hz (IEC) Fuse rating Power...
