Quick Links

HZ-3
HAZE MACHINE
Order ref: 160.451UK
User Manual
Please read through this manual thoroughly before use, any damage
Caused by misuse of product will not be covered by warranty.
www.avsl.com
160.451UK User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HZ-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Qtx HZ-3

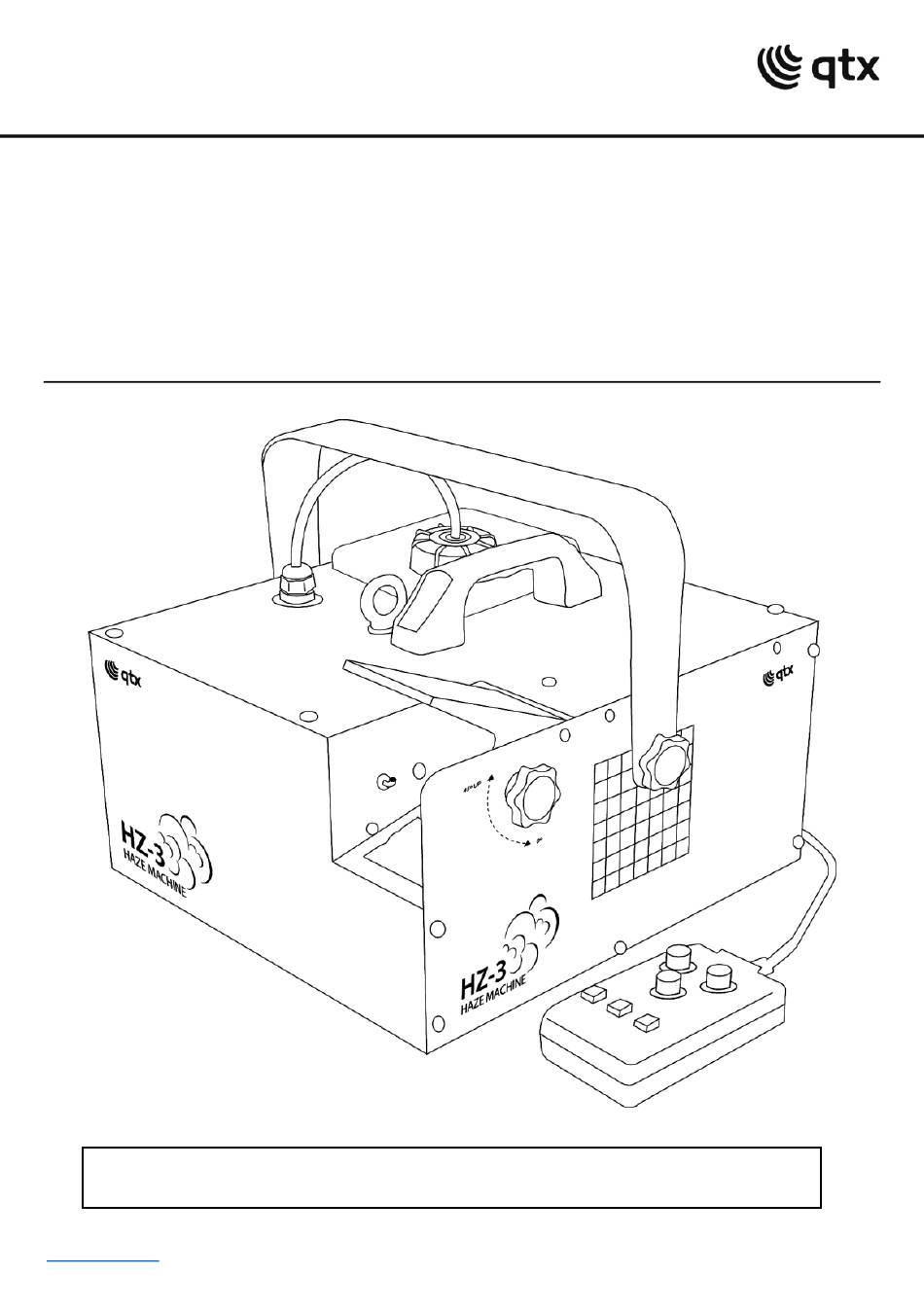

  • Page 1 HZ-3 HAZE MACHINE Order ref: 160.451UK User Manual Please read through this manual thoroughly before use, any damage Caused by misuse of product will not be covered by warranty. www.avsl.com 160.451UK User Manual...
  • Page 2: Package Contents

    INTRODUCTION: HZ-3 Haze Machine The HZ-3 haze machine features a range of upgrades to ensure it remains the top haze machine in its class. An improved 700W heater ensures all fluid is vaporised quickly as well as decreasing the warm up time. The LED digital display allows for standalone operation whilst still allowing for the use of a timer remote or 2 channel DMX operation.
  • Page 3: Recommended Fluid

    RECOMMENDED FLUID: For the HZ-3 haze machine we strongly recommend the following fluid which has been specifically formulated to perform best with any heater-based haze machines. QTX Ref Code Description Size Results High quality professional High quality ultra Haze fluid fine mist 160.591UK...
  • Page 4: Quick Troubleshooting

    QUICK TROUBLESHOOTING If the unit is not functioning properly Check if main power is on ◼ Check the fuse hasn’t blown ◼ Check the unit isn’t in DMX mode ◼ Check there is fluid in the tank and the pipe is pushed down to the bottom of the bottle ◼...

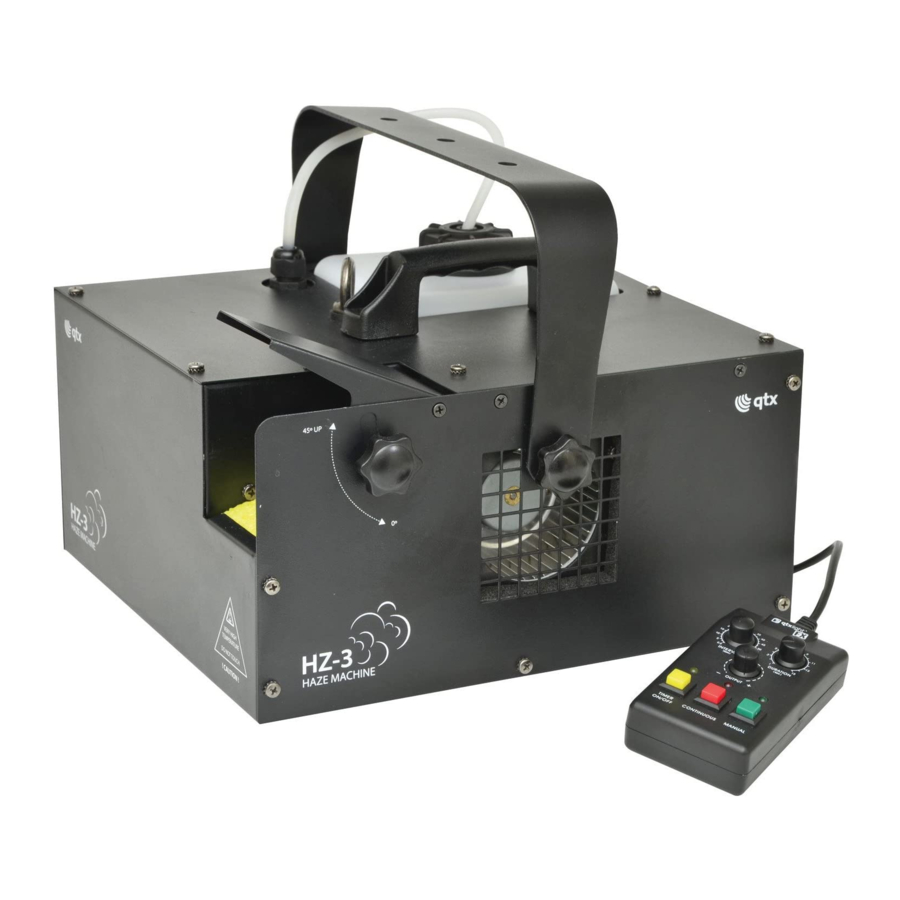

  • Page 5 LAYOUT HZ-3: Mounting Handle Carry handle Adjustable output flap Haze nozzle output Removable bottle Thumb screw for mounting bracket Thumb screw for adjustable out put flap. Handheld Remote controller www.avsl.com 160.451UK User Manual...
  • Page 6: Layout And Connections

    DMX Out DMX In OPERATION FOR HZ-3 When you first turn on the Haze machine it will display “HEAt” for around 2-3 minutes while the unit warms up. When completed you will have access to various options if the wired remote control is not connected Press menu to scroll through the various options listed below.
  • Page 7: Display Function

    000 - 255 0% - 100% Haze Output TIMER CONTROLLER The timer controller can be used to control the HZ-3 remotely. Please note Fan Speed (FS) and Haze Output (HO) must be set to zero for the remote timer controller to operate.
  • Page 8: Technical Specification

    Adjust the duration the Haze / Haze is released at each interval (between 0 – 15 seconds approximately) For best results select “continuous” and adjust output to achieve desired effect, note it can take around 30 seconds for the machine to produce the correct output. TECHNICAL SPECIFICATION Power supply 230Vac, 50Hz...
