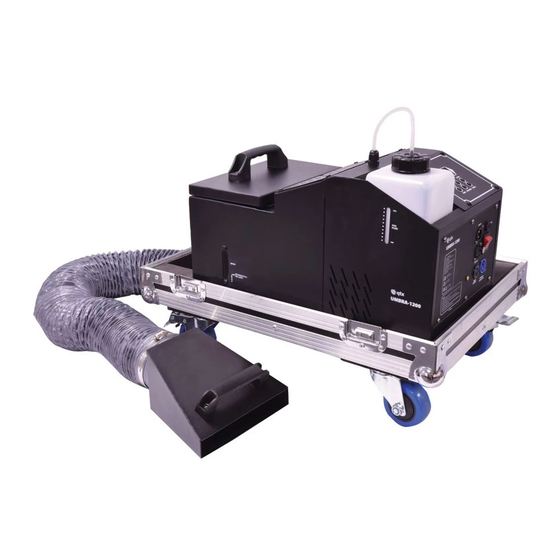

- Page 1 UMBRA-1200 Item ref: 160.480UK User Manual Low Mist Generator Version 2.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
-
Page 2: Recommended Fluid
When in place, ensure that the cap is securely sealed and the bottle is not inverted. The UMBRA-1200 also has a water reservoir, which should be filled to the required level. The unit in its flight case should be positioned on a stable surface. -
Page 3: International Symbol
Safety • Check for correct mains voltage and condition of IEC lead before connecting to mains • This unit must be earthed • This unit uses a heating element – be aware that parts of the housing may be hot in use! Use power supply with Earth connection and adequate current capacity for the unit Use the plug to connect to the main power supply as follows: Wire... - Page 4 Unfasten the 4 butterfly catches on the case and completely remove the lid. The UMBRA-1200 has a funnel and a flexible duct, which should be placed on the floor and aimed at the area where the low-lying mist is to be produced.
-
Page 5: Operation
Operation Before mist can be produced, the UMBRA-1200 needs to heat up, for 3 to 5 minutes. If the display shows “Warming”, the heater is pre-heating. If the display shows “Ready to Fog”, it is at the required temperature for operation. -
Page 6: Specifications
Specifications Power supply 220-240Vac, 50Hz (IEC) Power consumption 1200W Fuse F8AL Connection DMX in & out (3-pin XLR), RF receiver (5-pin DIN) DMX channels Warm up time 3-5 minutes Fluid capacity 0.8 litre (fog fluid) Fog output 9000 cu ft (255m³) /min Dimensions 590 x 510 x 410mm (in flight case) Weight... - Page 7 160.480UK User Manual...
