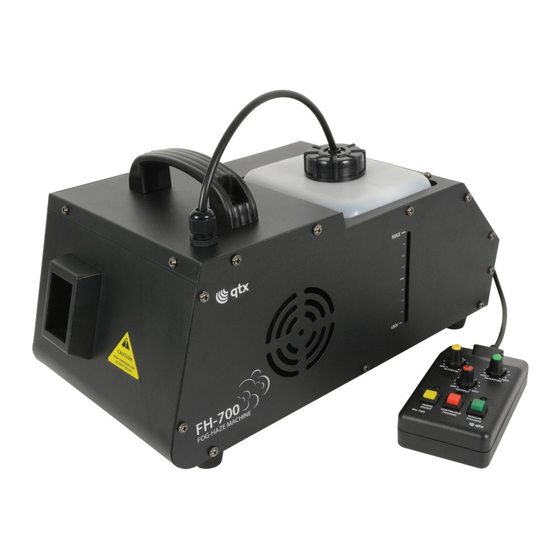

Qtx FH-700 User Manual

Qtx fog/haze machine user manual
Hide thumbs

Advertisement

Quick Links

Download this manual
FH-700
Item ref: 160.458UK
User Manual
Fog/Haze Machine

Advertisement

loading

Related Manuals for Qtx FH-700

Summary of Contents for Qtx FH-700

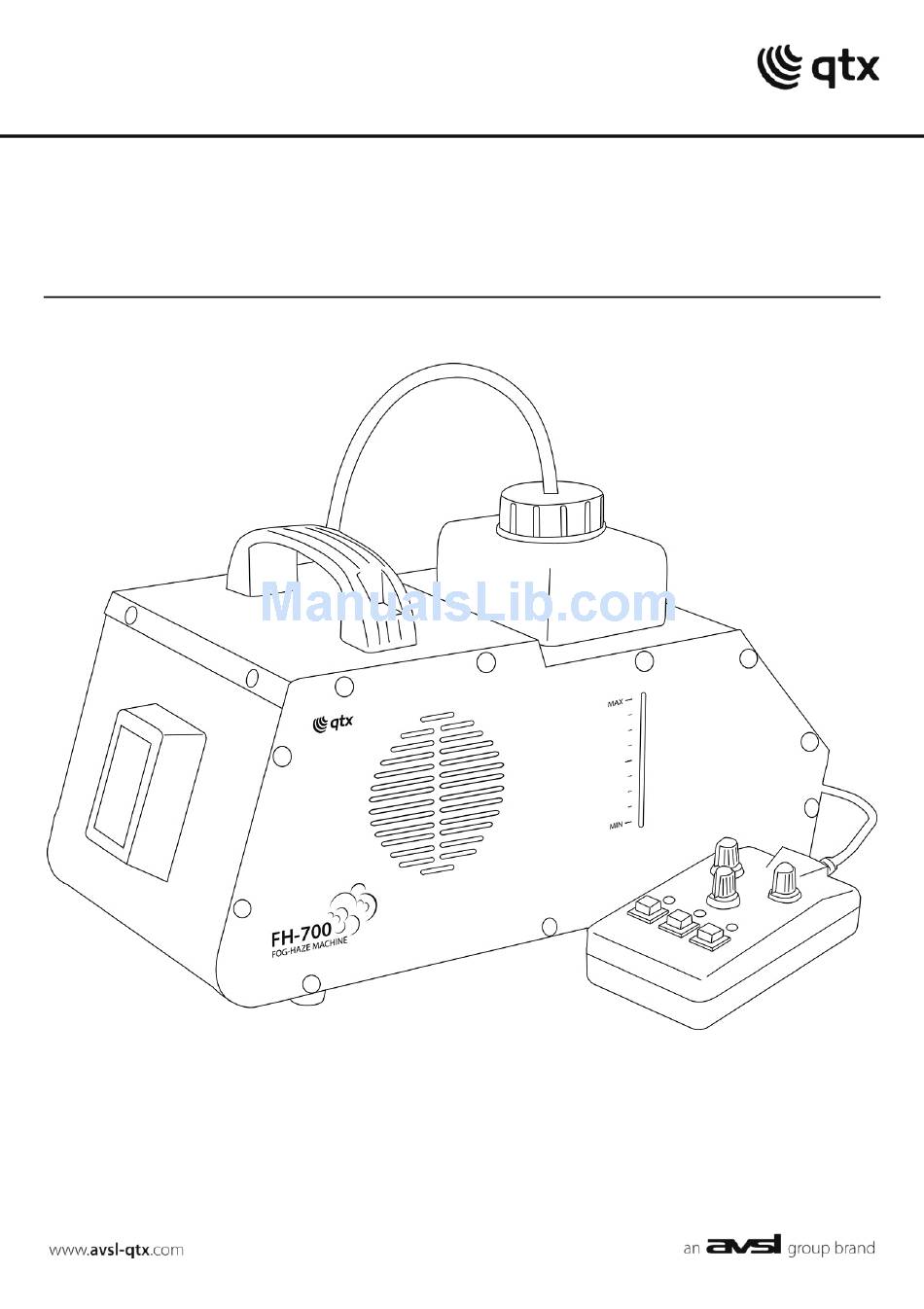

  • Page 1 FH-700 Item ref: 160.458UK User Manual Fog/Haze Machine...
  • Page 2 INTRODUCTION: FH-700 Fog/Haze Effect Machine This mini effects unit produces both a fog and haze. The flow rate and internal rotary fan can be adjusted to produce either thick fog effects or light haze depending on your requirements. Supplied with a handheld timer remote control, making it suitable for a wide variety of applications such as nightclubs, laser shows mobile DJs and theatres.

  • Page 3: Package Contents

    Please keep the original package and invoice for any possible replacement or returned demand. RECOMMENDED FLUID: For the FH-700 haze machine we strongly recommend the following fluid which has been specifically formulated to perform best with any heater based haze machines. QTX Ref Code...
  • Page 4 SETUP: Unpack the FH-700 unit. Unscrew the top cap of the tank and remove to fill with the recommended haze fluid. Replace the bottle and screw the cap securely ensuring the pipe is fed down to the bottom of the bottle so a consistent flow of fluid is supplied to the machine.
  • Page 5 CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE CONNECTED: Use the plug to connect to the main power supply as follows: Wire Connection International signal Brown Live Blue Neutral Yellow /Cyan Earth QUICK TROUBLE SHOOTING If the unit is not functioning properly Check if main power is on.
  • Page 6 LAYOUT FH-700: Carry handle Haze nozzle output Bottle cap and feed tube Removable bottle Fill level indication 160.458UK User Manual...
  • Page 7 Controller connection Fan Speed* *Fan Speed control: The FH-700 features a manually adjustable fan to control the distance the fog / haze can be dispersed. Generally low speeds are suitable for small areas where as higher speeds are for larger areas.

  • Page 8: Timer Controller

    TIMER CONTROLLER Timer on/off button Continuous output Manual override button Timer LED indicator (Illuminated Yellow when timer active) Manual ready indicator (Illuminates Green when ready) Power indicator (Illuminates red when power is on) Adjust the output level between 0-100%. Generally 0-30% is haze effect and 31-100% is Fog level output.
  • Page 9 160.458UK User Manual...

  • Page 10: Technical Specification

    TECHNICAL SPECIFICATION Power supply 230Vac, 50Hz Fuse Power 700W Re-heat time 5-6 min (approx.) Haze Output 6,000 Cu Ft (170m³) per minute Tank capacity 2.5 Litres Dimensions 400 x 215 x 210mm Weight 5.3kg DISPOSAL: Please disposal of the unserviceable device according to the current statutory requirements. Errors and omissions excepted.
