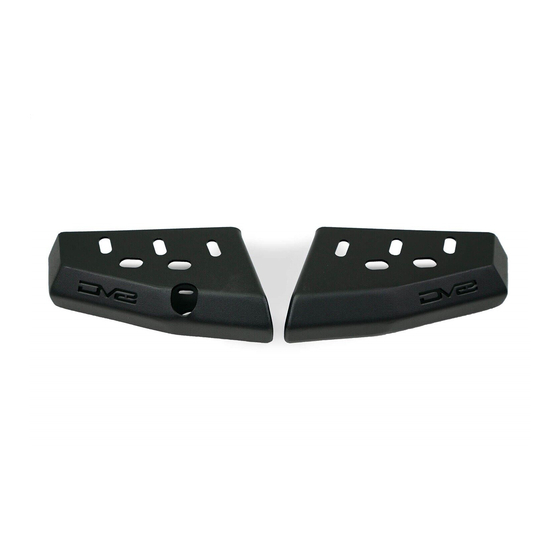

A-Pillar Light Mount
2021+ Bronco
LBBR-02
TOOLS
REQUIRED
- T30
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 persons
Little skill level required, you can
easily install it by yourself.
Read and understand all
PRODUCT
INSTALLATION
TIME
- .5 Hour
Time to install this should
Approximately .5 Hour.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 LBBR-02
Summary of Contents for DV8 LBBR-02
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 STEP Loosely install the lights onto your brackets using the hardware provided with the lights. Note: We are using four 3” DV8 elite pod lights for our install. STEP We installed the lights onto the two outer holes. We left our lights loose so we can access the two front mounting holes on each bracket.
- Page 3 INSTALLATION MANUAL STEP On the passenger side, unscrew the antenna and set off to the side. STEP Using a T30 torx bit, remove the two screws on each side of the windshield cowl. 855-680-9595 NEED HELP?
- Page 4 T30 torx bit. Ensure bracket is alighted with windshield cowl and tighten until secure. STEP Tighten the lights to the LBBR-02 bracket and check to ensure all hardware is secure. Reinstall antenna through passenger side bracket. 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP Double check to ensure all hardware is secure and complete wiring the lights to your preference. 855-680-9595 NEED HELP?
