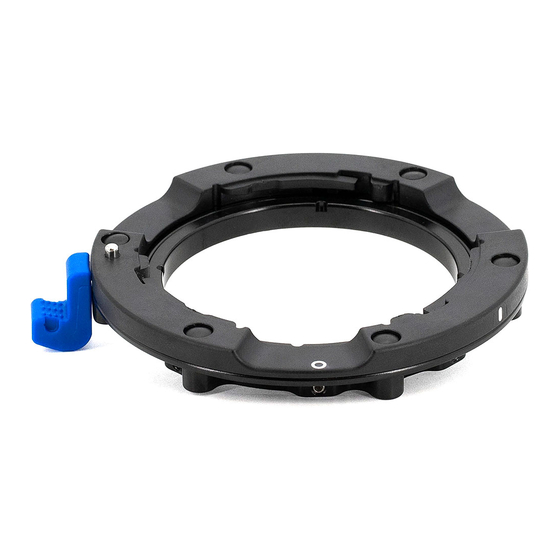

Nauticam M67 Quick Start Manual

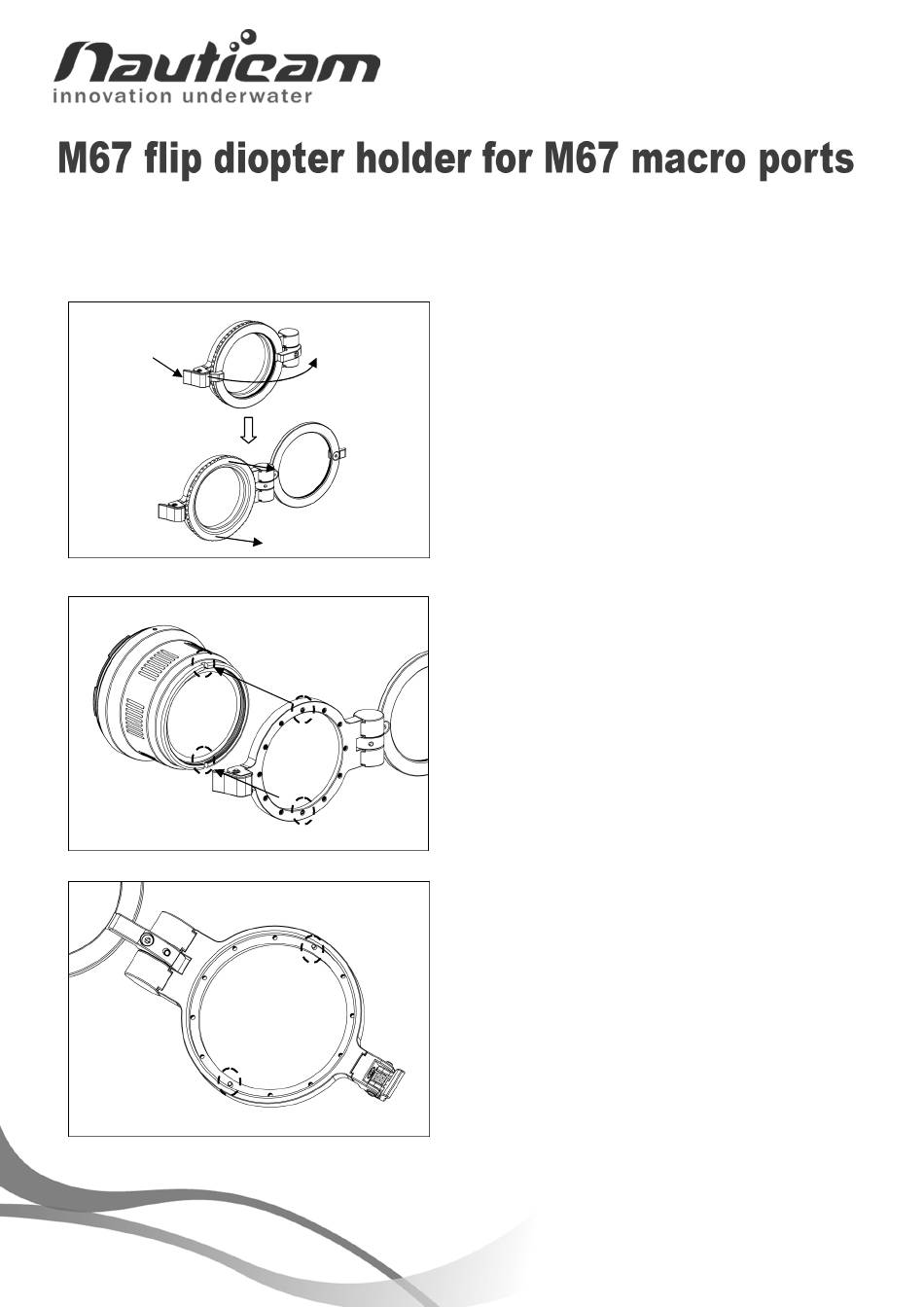

Flip diopter holder for m67 macro ports

Please follow the instructions below to mount the flip diopter holder on Nauticam 67mm threaded ports.

Press

1. Press the lever and flip the diopter holder to the

side then remove the locking ring from the flip

diopter holder.

2. Align the two positioning screws on the back of

the holder with the slots on the front of the port.

3. The position of the flip diopter holder can be

changed by relocating the two screws in the

threaded holes around holder.

Table of Contents

Need help?

Do you have a question about the M67 and is the answer not in the manual?

Page 1 Please follow the instructions below to mount the flip diopter holder on Nauticam 67mm threaded ports. 1. Press the lever and flip the diopter holder to the side then remove the locking ring from the flip Press diopter holder. 2. Align the two positioning screws on the back of the holder with the slots on the front of the port.
Page 2 4. Fasten the holder by screwing the locking ring into the thread on the front of the port. 5. To un-mount the flip diopter holder from the port, reverse the above steps.
