Connecting to the PC Using EMUBOOST

3.1

CC31XXEMUBOOST

3.1.1 Overview
The CC31XXEMUBOOST is designed to connect the BoosterPack to a PC using a USB connection. This
updates the firmware patches, which are stored in the serial flash, on the BoosterPack; and in software
development using SimpleLink Studio.
3.1.2 Hardware Details
The board has two FTDI ICs to enumerate multiple COM and D2XX ports. The details of the ports are
given in Table 6.
Port
Number Port Type Usage
1 D2XX
2 D2XX
3 VCP
4 VCP
NOTE: On the PC, only two of the four ports would be visible on the Device Manager. The D2XX
ports are not listed under the "Ports" tab.
SWRU371B – June 2014 – Revised January 2015
Submit Documentation Feedback

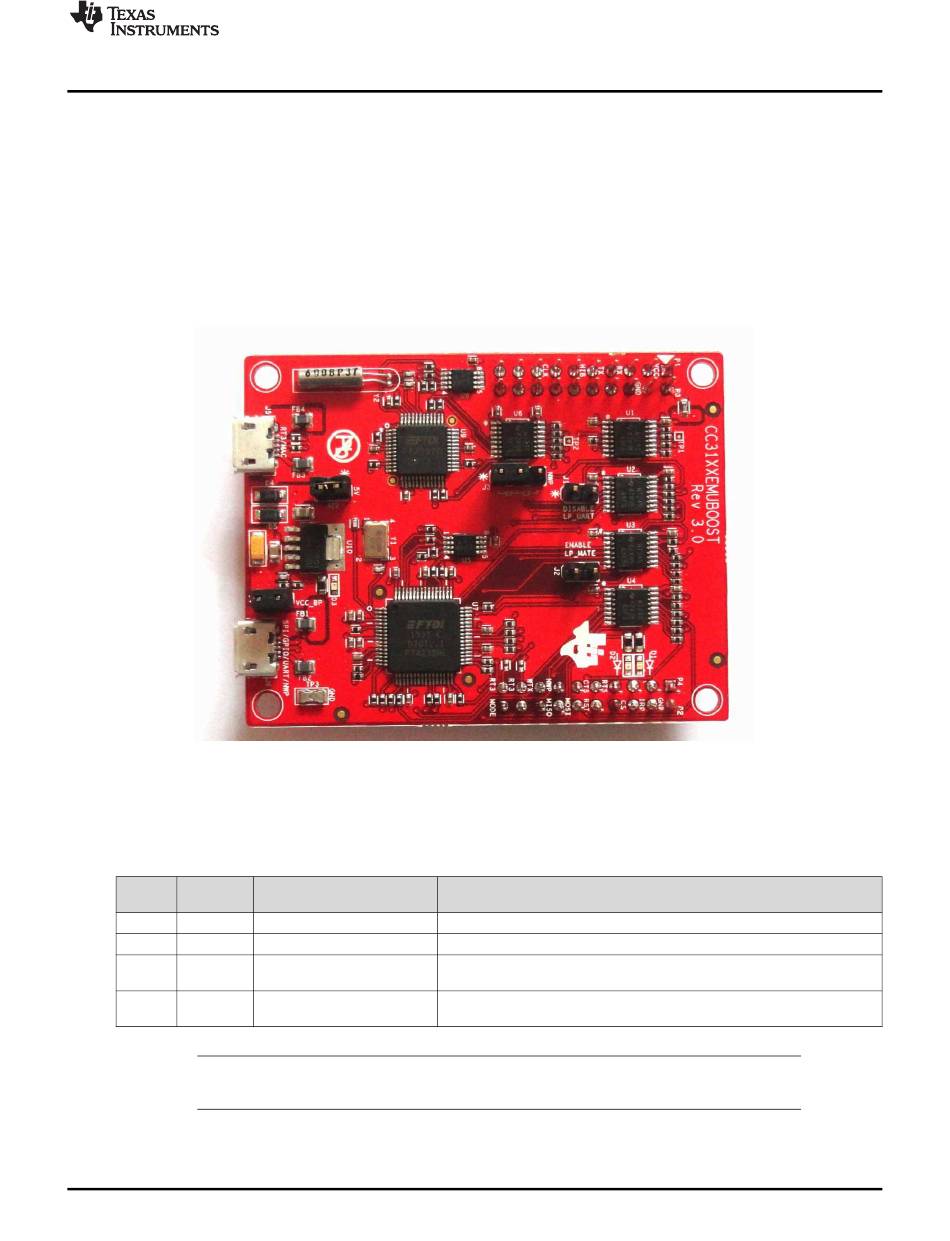

Figure 12. CC31XXEMUBOOST Board
Table 6. Ports Available on J6
SPI port for SL Studio
GPIO for SL Studio
COM port for Flash
programming
NWP
CC3100 SimpleLink™ Wi-Fi
Copyright © 2014–2015, Texas Instruments Incorporated
Connecting to the PC Using EMUBOOST
Comments
Control the nRESET, nHIB, IRQ
Network processor logger output. Used with specific tools to analyze the
network processor logs. For TI use only.
