Summary of Contents for Tech Controllers EU-F-4z v2

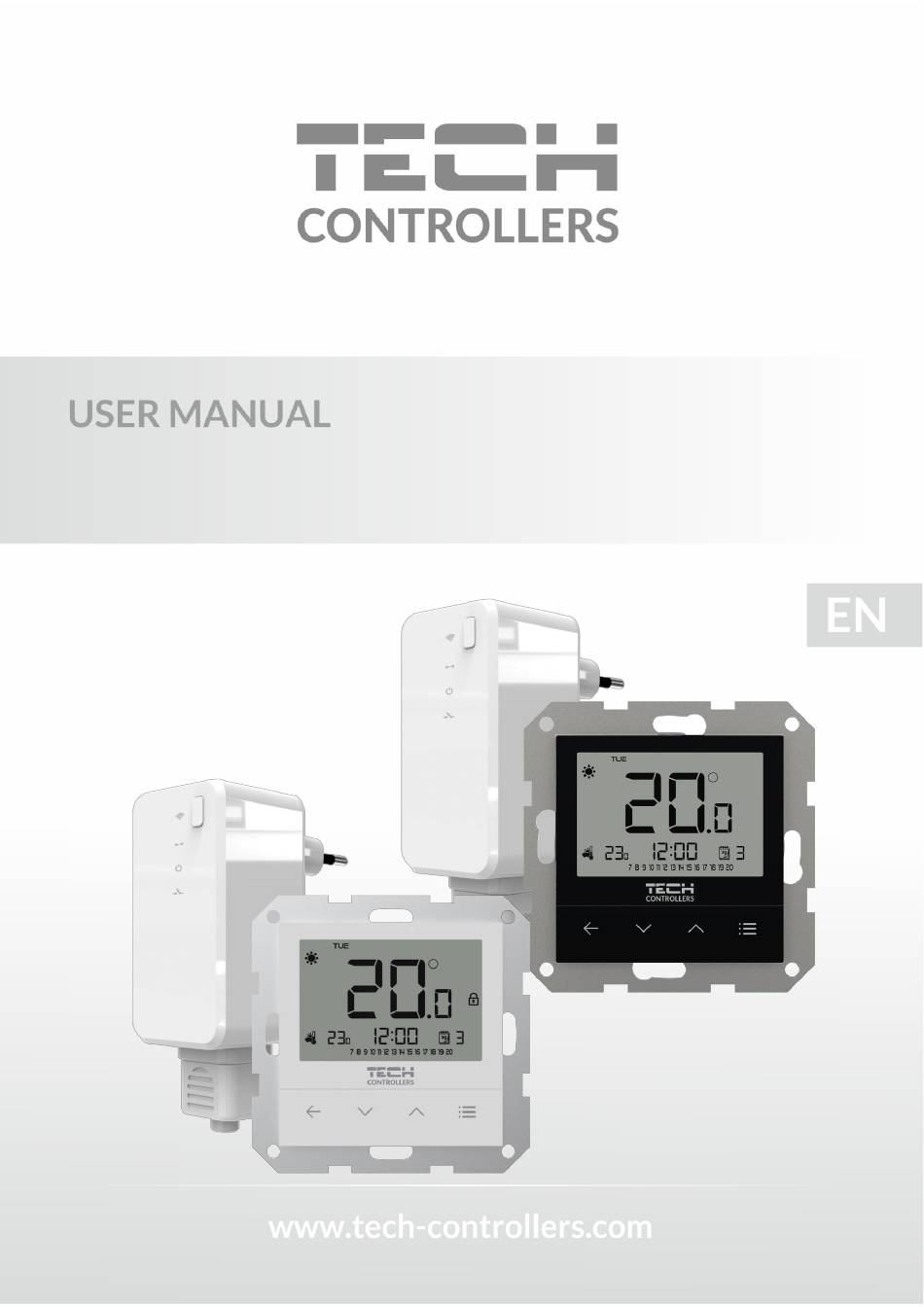

  • Page 1 EU-F-4z v2...

  • Page 2: Table Of Contents

    TECH TABLE OF CONTENTS I. Safety ..................................3 II. Device description ..............................4 III. How to install the controller ............................. 5 IV. Wireless receiver EU-MW-3............................8 V. Regulator functions ..............................9 1. Operation modes ................................. 9 2. Regulator functions ..............................10 Day of the week ................................

  • Page 3: Safety

    EU-F-4z v2 SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.

  • Page 4: Device Description

    TECH DEVICE DESCRIPTION The EU-F-4z v2 room regulator is intended for controlling the heating device. Its main task is to maintain the pre-set room temperature by sending a signal to the heating device when the room temperature has been reached.

  • Page 5: How To Install The Controller

    EU-F-4z v2 Current temperature is displayed on the screen. Hold the EXIT button to display current humidity. Hold the button again to display the pre-set temperature screen . display TECH CONTROLLERS EXIT MENU  Use EXIT to activate weekly control or day/night mode and to deactivate manual mode. In the controller menu, use this button to confirm new settings and return to the main screen view.
  • Page 6 TECH The diagrams below illustrate how the regulator should be mounted.
  • Page 7 EU-F-4z v2 TECH CONTROLLERS How to install particular elements:...

  • Page 8: Wireless Receiver Eu-Mw-3

    WIRELESS RECEIVER EU-MW-3 The EU-F-4z v2 regulator communicates with the heating device (or the CH boiler controller) by means of a radio signal sent to the receiver. The receiver is connected to the heating device (or the CH boiler controller) using a two-core cable.

  • Page 9: Regulator Functions

    EU-MW-3 are flashing one after another from one side to the other - the EU-MW-3 module has not received the signal from the controller;  the EU-F-4z v2 regulator screen displays Err and all the control lights in EU-MW-3 light up continuously - the registration attempt failed. REGULATOR FUNCTIONS 1.

  • Page 10: Regulator Functions

    TECH  Manual mode - the user sets the temperature manually directly from the main screen view. When the manual mode is activated, the previous operation mode enters sleep mode and remains inactive until the next pre-programmed change of the pre-set temperature. Manual mode can be disabled by pressing the EXIT button.

  • Page 11: Weekly Control

    EU-F-4z v2 WEEKLY CONTROL This function enables the user to set current weekly control program and edit the days and time when particular temperature value will apply. HOW TO CHANGE THE WEEKLY PROGRAM NUMBER Select this function and hold the MENU button. Every time you hold the button, the program number will change. Press EXIT to confirm - the controller will return to the main screen and the new setting will be saved.

  • Page 12: Floor Sensor

    TECH of relays have been registered (max 6), the screen displays dEL option, which enables the user to remove a previously registered relay. FLOOR SENSOR This function is active in heating mode after connecting the floor sensor. In order to display specific parameters of the floor sensor, select ON.

  • Page 13: Pre-Set Temperature

    EU-F-4z v2 3. PRE-SET TEMPERATURE It is possible to adjust the pre-set temperature directly from the room regulator using the buttons . The regulator switches then to manual mode. In order to confirm changes, press the MENU button. TECHNICAL DATA EU-F-4z v2 230V ±...
  • Page 14 TECH Hereby, we declare under our sole responsibility that the EU-F-4z v2 room regulator manufactured by TECH, head- quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available...
  • Page 15 EU-F-4z v2...
  • Page 16 TECH...
