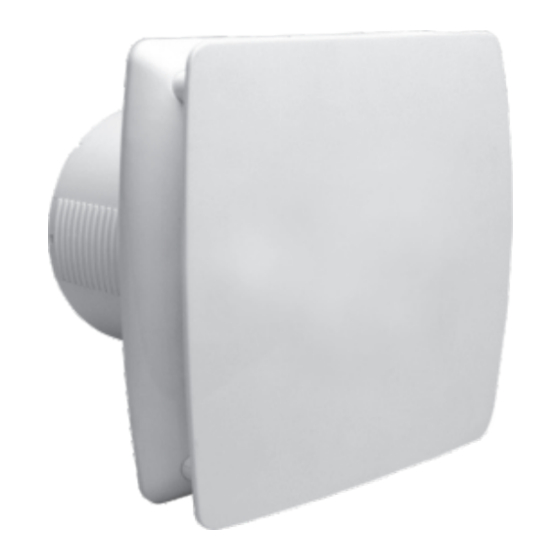

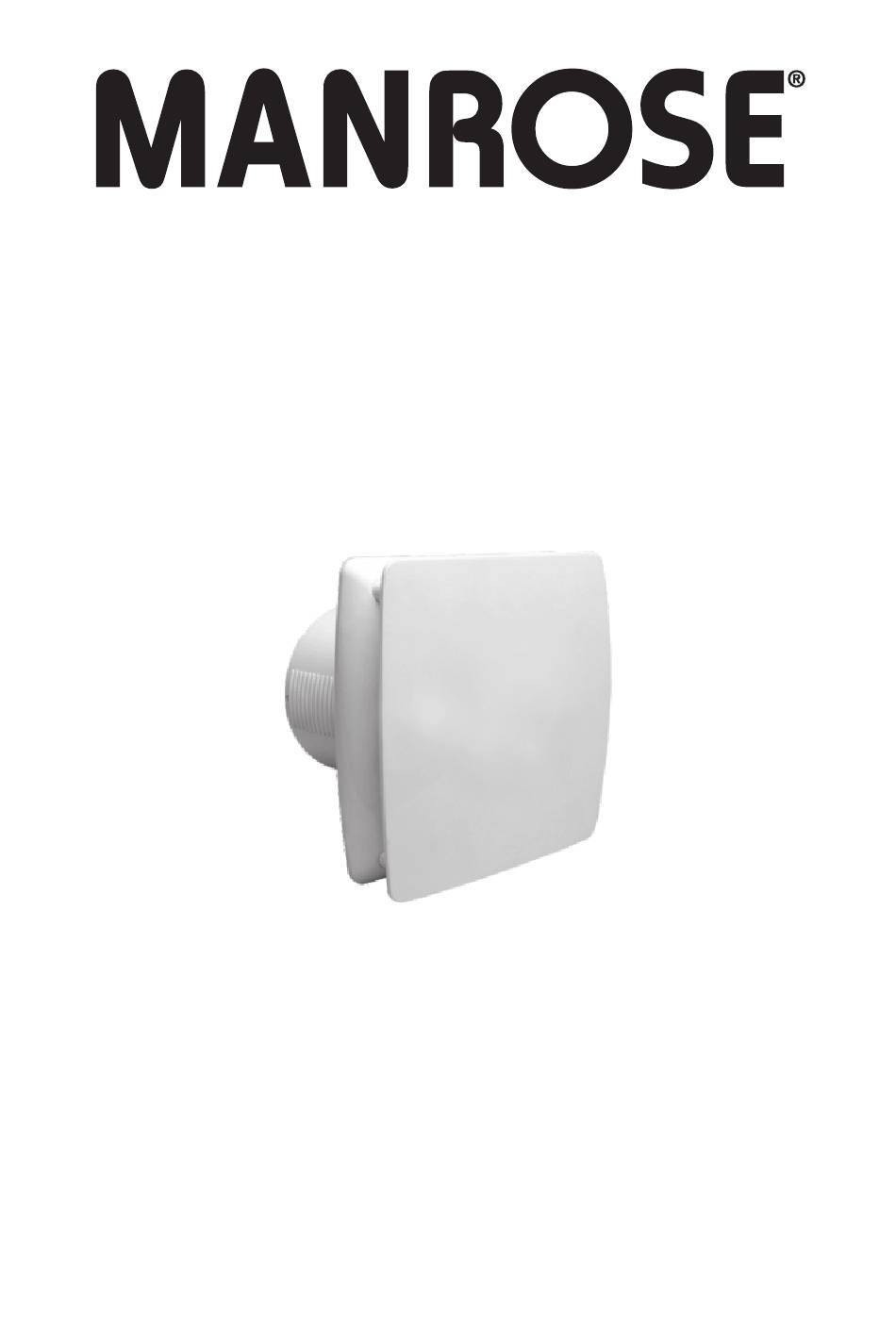

- Page 1 PREMIUM EXHAUST FANS INSTALLATION AND WIRING INSTRUCTIONS INSTALLATION AND WIRING INSTRUCTIONS MODELS: MRUF150WH VUF150WH MODEL: VUF150WH MODEL: MRUF125WH MRUF100WH READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLING READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND OPERATING AND OPERATING...
- Page 2 193X193 VUF150WH Motor house cover Motor MRUF125 170mm 32mm 108mm 116mm Quick fits MRUF150 193mm 33mm 120mm 145mm Fan body Fig. 1 Panel CUT-OUT DIMENSION (mm) MRUF100WH - Ø100mm MRUF125WH - Ø120mm Model MRUF150WH - Ø150mm 193X193 VUF150WH Fig. 2...
- Page 3 Ensure the electrical specifications label corresponds to your electrical supply carefully. PARTS IDENTIFICATIONS Terminal Blade Motor house cover Motor Quick fits Fig. 2 Fan body Fig. 1 Panel WIRING DIAGRAM DIMENSION (mm) Model 193X193 VUF150WH Terminal block Supply cable Fig. 3 entry IMPORTANT CONSIDERATIONS BEFORE INSTALLING 1.Adhere to the latest national wiring rules AS/NZS 3000, for wiring and when installing in...
- Page 4 INSTALLATION INSTALLATION INSTALLATION Warning: For your safety, all electrical work must be carried out by a licensed electrician INSTALLATION Warning: For your safety, all electrical work must be carried out by a licensed electrician. Warning: For your safety, all electrical work must be carried out by a licensed electrician. Warning: Ensure the power supply to the exhaust fan is switched OFF before carrying ou Warning: For your safety, all electrical work must be carried out by a licensed electrician.
- Page 5 CEILING INSTALLATION 1.Find a suitable location and cut the appropriate size (150mm) diameter. Ensure there are no cables or pipes above the ceiling when cutting. 2.Remove the front panel of the exhaust fan and position against the ceiling mounting surface and mark the four fixing screw points and cable entry, and then drill to suit.
- Page 6 Turn screw clock-wise to make the metal clip come out to the side and lock into place against the side of the ceiling. (Above) SPECIFICATION Rated voltage Input Air-Flow Noise Size Model (V/Hz) Four mounting (m³/h) (dB) (mm) Rated Voltage Input Airflow Noise...
