INSTALLATION
INSTRUCTIONS

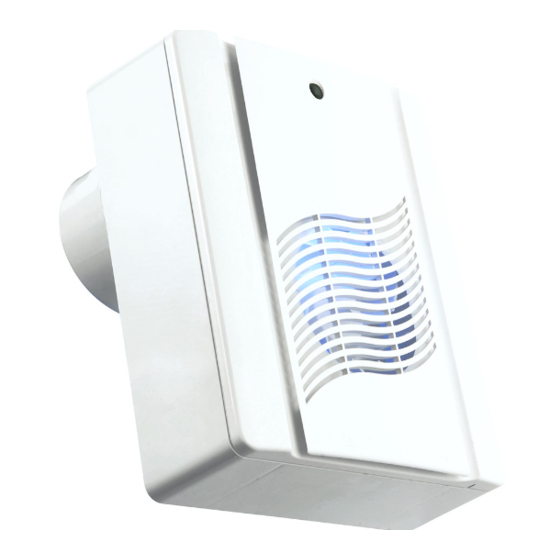

M200P/ M200S/ M200T/ M200H/ M200HP
CENTRIFUGAL EXTRACTOR FANS
Switch off mains supply before making any electrical
connections.
Installation must be supervised by a qualified electrician.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory and mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Precautions must be taken to avoid the back-flow of gases
into the room from the open flue of gas or other open-fire
appliances when mounted in outside windows or walls.
Fan must be disconnected from electrical power before any
maintenance is carried out.

Location

1. When installing fan through an external wall,
an external wall grille must be fitted at all
times.
2. For best results this Extractor Fan should
be fitted as high on the wall as possible, or
if preferred, on the ceiling. Note: Pullcord
models should not be installed in a ceiling.
3. Do not install the unit within a shower
cubicle or anywhere else where there is a
risk of being sprayed with water (Please
see our range of showerfans for these
installations.).
4. If the fan is installed in a room containing
a fuel burning appliance, the installer must
ensure that the air replacement is adequate
for both the fan and the fuel burning
appliance.

Wiring

1. Switch off mains supply before making
electrical connections. If in any doubt contact
a qualified electrician.
2. These units are for fixed wiring only. A flexible
cord must not be used. All wiring must be
fixed securely and the cable to the fan should
be a minimum of 1mm
must comply with current I.E.E. Regulations
or local regulations if outside the UK.
3. A double pole fused spur having contact
separation of at least 3mm in all pole must be
used and fitted with a 3A fuse.
4. This fan is double insulated and does not
require an earth connection.
5. The fan should not be accessible to a person
using either the shower or the bath.
in section. All wiring
