Manrose EXTRACT-A-LITE Installation Instructions Manual

IMPORTANT
• Isolate the mains supply before making any electrical connections. This system should be
installed by a qualified electrician.
• When fitting through an external wall, an external grille must be fitted at all times.
• Fan should only be installed by fixed wiring, a flexible cord should not be used.
• The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other open-fire appliances when mounted in outside windows or walls.

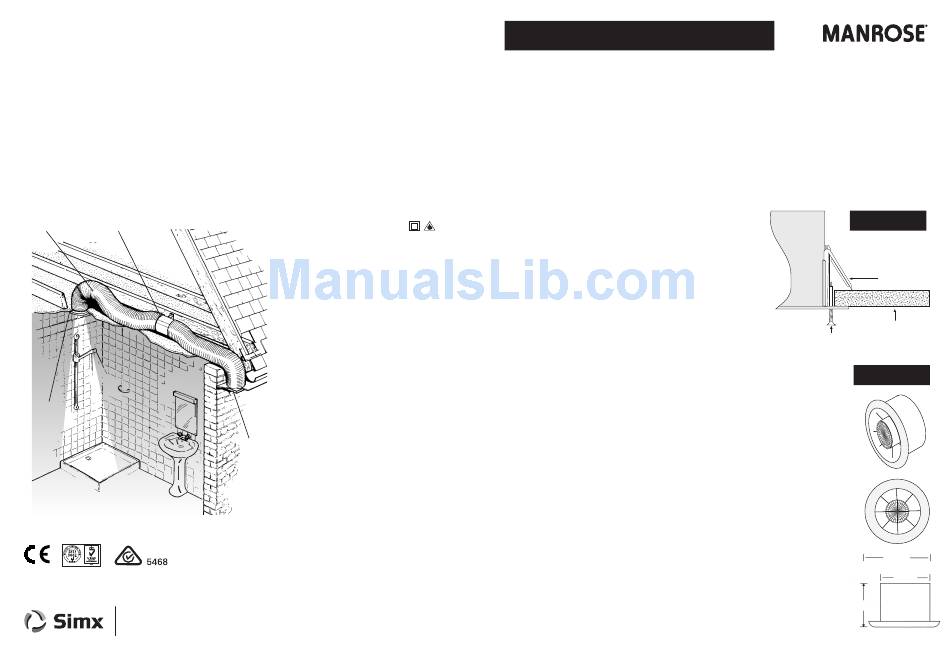

The Shower Fan
Flexible
screwed to the joist
ducting
Internal
Extract-a-Lite
We reserve the right to change specification without prior warning
Manrose is proudly distributed by Simx Limited
PO Box 14 347, Panmure, Auckland, NZ. Technical Support (09) 259 1662
e: sales@simx.co.nz | www.simx.co.nz | www.manrose.com.au

Fan Specifications:

Electrical: 220-240V ~50Hz
Airflow: 89l/s (320m³/hr)
Wattage: 38W
Max Temp: 70°C
IP Rating: IP44
External
Grille
PUB0165 iss06 10/13

INSTALLATION INSTRUCTIONS

MANROSE CLASSIC 150mm
EXTRACT-A-LITE FAN RANGE

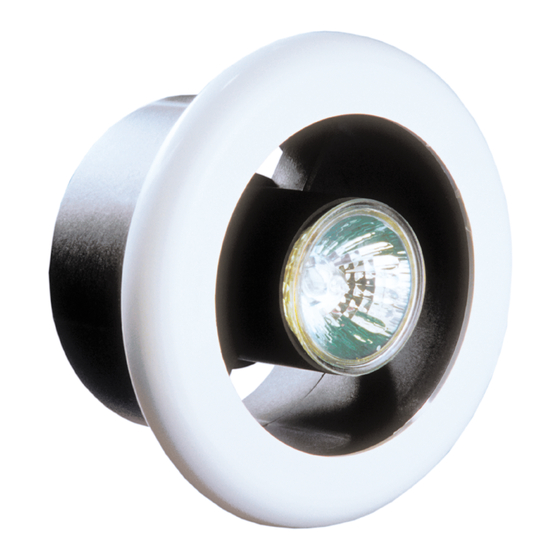

Thank you for selecting our Manrose 150mm Extract-a-Lite Fan Kit.
Please read all instructions before commencing installation.
Please ensure the corrrect LED lamp and driver OR Halogen lamp and transformer are used for
replacements. The LED model MUST be replaced with an LED lamp and the Halogen model
MUST be replaced with a Halogen lamp. They are not interchangeable.

Light Specifications:

LED models: FAN5369 and FAN5370
Driver Input: 220-240 VAC
Driver Output: 12VDC
Lamp MR16: 12V / 3W high power LED, 25 0 beam angle
Halogen models: FAN0803 and FAN0804
Transformer Input: 220-240 VAC
Transformer Output: 12VAC
Lamp MR16: 12V / 50W Halogen, 60 0 beam angle
Installation Instructions
Important: The Halogen Extract-a-lite must not work independently of the fan.
1. Cut a 165mm diameter hole in ceiling, (always ensure the hole is cut between
ceiling rafters and away from any wiring or plumbing). Fix the Extract-a-lite chassis
using the 4 screws provided. Use the fixing clips to secure the fan in panel walls
& ceilings.
2. For the LED models: Connect a suitable driver to the Extract-a-Lite and to a
suitable power supply, ideally to the switched live of the extractor fan installed.
Recommended driver: FAN5342. Replacement lamp: LHT0221.
For the Halogen models: Connect a suitable transformer to the Extract-a-Lite and
to a suitable power supply, ideally to the switched live of the extractor fan installed.
Recommended transformer: FAN2101. Recommended lamp: FAN0431.
3. Place the white ceiling cover onto the Extract-a-lite chassis by positioning over the 3
lugs, and twisting clockwise.
4. Never connect mains direct to the lamp.
5. The transformer/driver must be suitable for 230V AC input.
CAUTION: Disconnect the power supply, and be sure that the lamp has
fully cooled before removing or replacing.
C L A S S I C S E R I E S
INSTALLATION
When screw is tightened fixing
clip fingers secure the fan
Fixing clip
Fan
chassis
Ceiling board
Screw

DIMENSIONS

200mm
148mm
74mm
