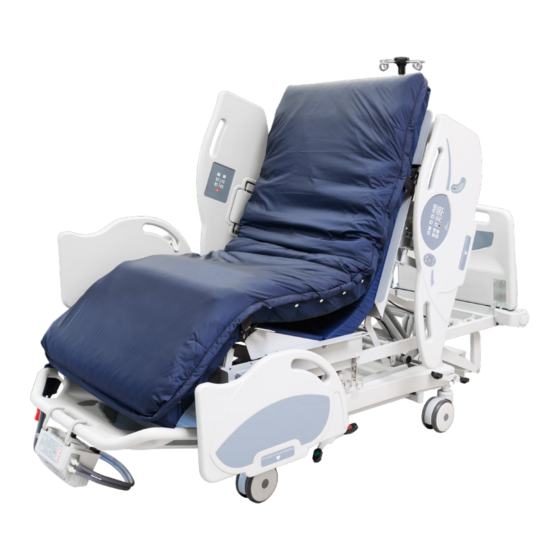

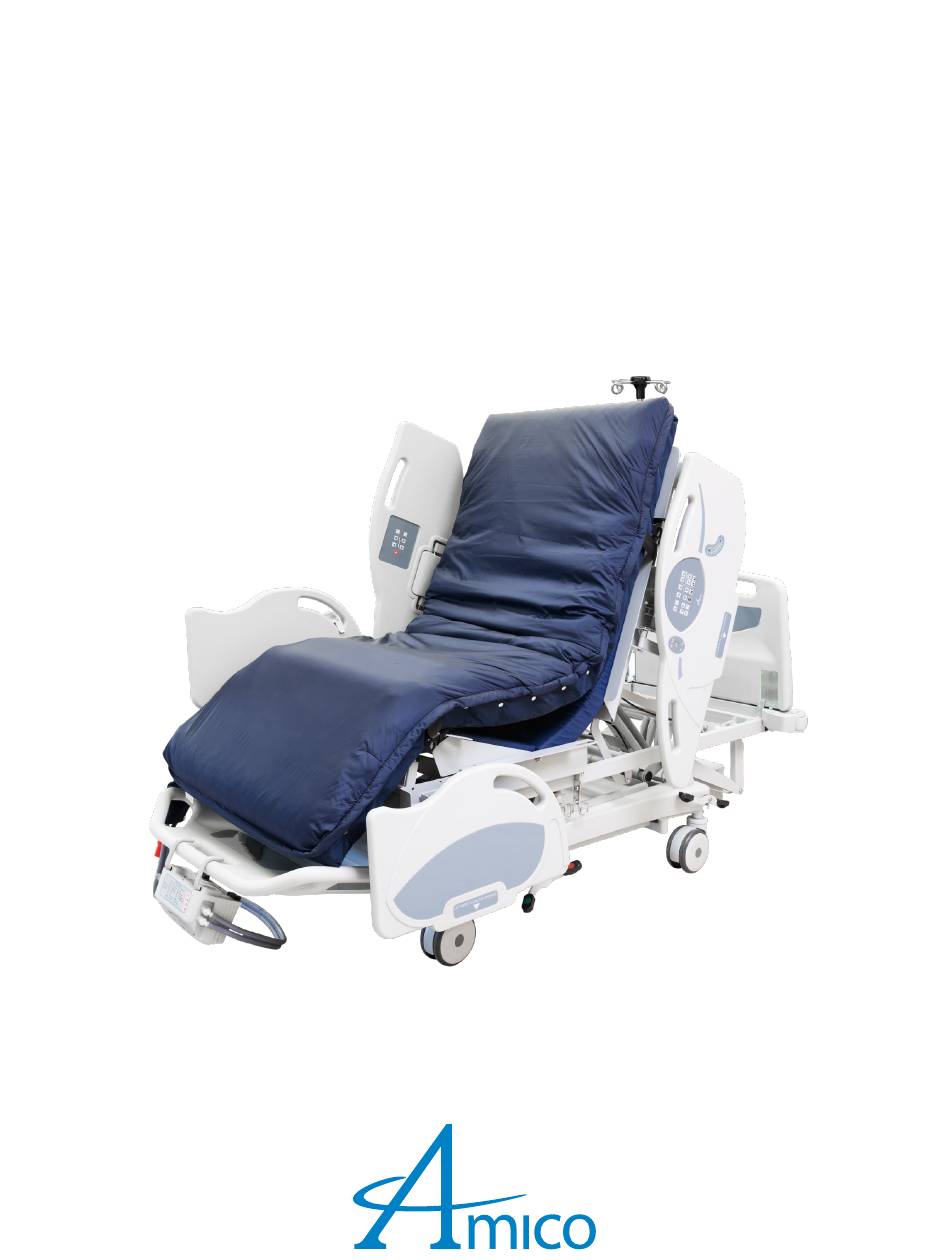

- Page 1 Operation & Maintenance Manual ICU Series B-E-AC802 Bed...
-
Page 2: Table Of Contents
Raising Siderails Electrical Standard Features Troubleshooting Siderail Replacement 14-15 Safety Tips 15-17 Brakes Siderails/Restraints/Patient Monitoring Parts and Accessories Operating Stretcher/Surface Precautions Transport Sleep Surface/Mattress Flammability Spray Washing Preventive Maintenance Cleaning 18-19 Bleach Cleaning Instructions Mattress Cleaning Instructions Warranty Amico Beds Corporation... -
Page 3: Intended Use
This Manual provides instructions required for normal operation of the B-E-AC802 bed from Amico Beds Corporation. Prior to operation of this bed, it is important that this manual is read and ensure that all safety aspects contained in this manual are strictly adhered to. - Page 4 Earth Ground Location. CAUTION: Note the orientation of the zeadboard when installing onto bed frame. WARNING: Do not operate the bed beyond the recommended Patient Characteristics. Failure to observe this warning may result in patient injury or equipment damage. Amico Beds Corporation...
-
Page 5: Features
Features Item Description Item Description Mattress Base Cover IV Pole Mounting Socket Wheel Foldable Siderails Corner Roller Bumpers Footboard Transport Handles 5" (13 cm) Urethane Casters Headboard Brake Pedal Scale Board www.amico.com... -
Page 6: Warnings
WARNING: Avoid sitting at the extreme ends of the bed (back rest and knee gatch). WARNING: It is recommended not to use water or silicone surfaces in order not to exceed the maximum weight limit of 500 lbs (227 kg). WARNING: For information on “Cleaning Procedures”, please see pages 18-19. Amico Beds Corporation... -
Page 7: Specifications
Specifications Model Number Model Identification Description B-E-AC802 ICU Series B-E-AC802 Bed Feature Dimension (inches) Dimension (cm) Total Length (Retracted) Total Length (Extended) Maximum Width Deck to Siderail Height Maximum Underbed Clearance 16.5 Surface Width Surface Length Surface Mattress Thickness Fowler Length... -
Page 8: Siderail Controls
Press this button to lower foot section to desired angle Bed Flat Press this button to achieve a flat position from any articulated position Nursecall Press this button to activate the nurse call feature Underbed Light Press this button to activate the under bed light Amico Beds Corporation... -
Page 9: Scale
Sensitivity 2: Patient is at the side of the bed and may be at risk of falling off the bed. EXITING AREA 1 Sensitivity 1: Patient has exited the bed. Press this button to change the Bed Exit Alarm sensitivity. www.amico.com... -
Page 10: Th Wheel (Directional Wheel)
Ensure that the headboard is properly inserted before use. REMOVING THE HEADBOARD/FOOTBOARD • To remove headboard/footboard lift vertically as shown below. Amico Beds Corporation... -
Page 11: Central Locking System
• To raise the siderails, place both hands on the rail and gently pull up. The rail will lock into place once it reaches the top. Ensure that the siderail is properly locked in place before use to avoid patient injury. www.amico.com... -
Page 12: Electrical
The backup battery is rechargeable and can last 2 hours (more if not in continuous use) when fully charged. The B-E-AC802 features two exterior siderail controls and two interior siderail controls. Standard Features Roller Bumper Casters Radiolucent Fowler Section Removable IV Pole Extendable Foot Section Amico Beds Corporation... -
Page 13: Troubleshooting
(See “Replacement Parts List” for part number). d. If the brakes still do not work, please contact Amico Beds CSR or your Amico Sales Executive for support. a. Check all siderail and footboard controls to determine if any of the buttons are being pressed unintentionally. -
Page 14: Siderail Replacement
Using the same bolts and nuts that were removed from step 9. Re-route cable along the upper frame of the bed back to the control unit. Connect the siderail connector to the control unit as indicated. Press the bed on button and test for bed motions. Amico Beds Corporation... -
Page 15: Safety Tips
NOTE: Siderails are intended to be a reminder to the patient of the bed’s edge, not a patient-restraining device. When appropriate, Amico recommends that medical personnel determine the proper methods necessary to make sure a patient remains safely in the bed. -
Page 16: Parts And Accessories
For restraining devices, consult the restraint manufacturer to verify the correct application of each restraining device. PARTS AND ACCESSORIES Use only Amico parts and accessories. Modification of the bed shall be at the customer’s risk and liability. OPERATING STRETCHER/SURFACE PRECAUTIONS WARNING: Do not operate the bed in the presence of flammable gas or vapors. -
Page 17: Spray Washing
Pay particular attention to safety features that include, but are not limited to, the following: • Condition of the headboard, footboard, and siderails • Siderail latching mechanisms • Caster braking systems • Integrity of sleep surface ticking • Integrity of warning/cautions labels • Integrity of the various cables (AC power, signal cables, etc.) www.amico.com... -
Page 18: Cleaning
• Wipe off residue with water using a soft cloth or sponge. • Thoroughly dry. MATTRESS CLEANING INSTRUCTIONS To Wash Wipe with a sponge or soft cloth wetted with warm water containing soap or mild detergent. To Rinse After washing, rinse cover with warm water to remove residue. Amico Beds Corporation... -
Page 19: Warranty
Furthermore, Amico Beds Corporation will warrant its material to be free from defect for an additional period of two (2) years (three (3) years from the date of shipment). Within this period, Amico Beds Corporation will replace any part which is proven to be defective, at no charge. - Page 20 Amico Beds Corporation | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada Toll Free Tel: 1.877.462.6426 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: info@amico.com | www.amico.com AB-IM-B-E-AC802-ICU-BED 08.18.2022...
