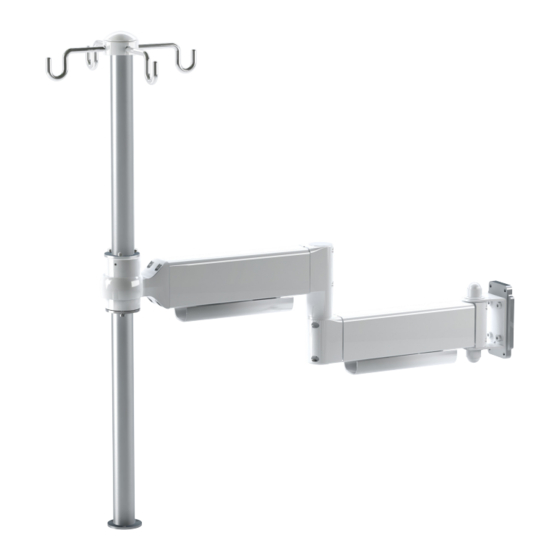

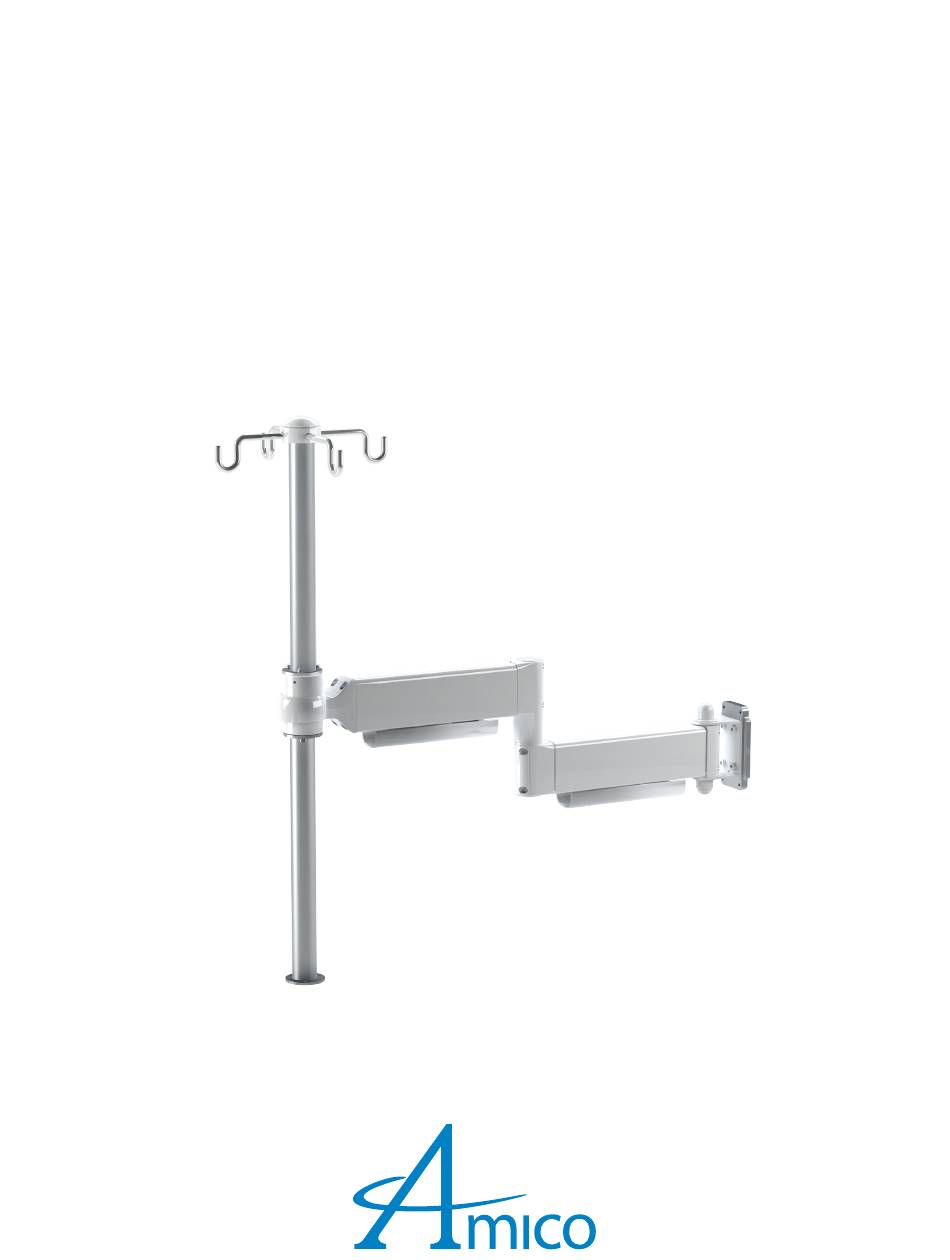

- Page 1 Installation Instructions Infusion Extension Arm...
- Page 2 This instruction manual is your guide to ensuring that you get the best performance out your equipment. Amico Accessories is not responsible for any damage as a result of (but not limited to) abuse and other malfunctions that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
-
Page 3: Table Of Contents
Installation to Mounting Platform Mounting to Monitor Rail System (MRS) (-M) Installation to Horizontal Rail System (ARS) (-AT) Double Rail Single Rail Mounting to Amico Vertical Rail System (-V) Section 4: Device Installation 10-11 Mounting IV Bags Mounting Infusion Pump... -
Page 4: Section 1: Product Specifications
INE-0909-12-12-F4-M Project #: 0617 L4B 2N4, Canada BREAK ALL EDGES .005 - .010 DESCRIPTION: PROJECTION THIS PRINT IS PROPERTY OF AMICO ACCESSORIES Toll Free: 1.877.264.2697 (T) R23.0 ANGLE TOLERANCES 1 UNLESS SPECIFIED Tel: (905) 763.7778 AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN... -
Page 5: Product Classifications
Product Classifications DOUBLE EXTENSION PART NUMBER: INE-0909-12-12-F4-M INE - XXXX - 12 - 12 - YY - Z NO HOOK 0900 SINGLE EXTENSION AMICO VERTICAL RAIL ADAPTER 0909 FIXED 4 HOOK DUAL EXTENSION MRS RAIL ADAPTER AMICO HORIZONTAL RAIL ADAPTER... -
Page 6: Section 2: Installation Preparation
Section 2: Installation Preparation What’s in the Box? NOTE: Please ensure that your contents match the list as outlined below. If not, please contact Amico Accessories at 1-877-264-2697. Hardware Kit (2x sets) Top Post (4 hooks) OR Extension Arm Bottom Post... -
Page 7: Tool
Section 2: Installation Preparation Tools NOTE: AMICO DOES NOT PROVIDE TOOLS NECESSARY FOR ASSEMBLY. #2 Phillips Screwdriver 1/8" Hex Key Section 3: Installation Assembling Posts to SWIVEL DISKS 1. Using a #2 Phillips head screwdriver or bit (not provided), insert 3x PAN HEAD SCREWS through 3x LOCK WASHERS, through BOTTOM PLATE of TOP POST and into TOP SWIVEL DISK as shown in Figure 3. -
Page 8: Installation To Mounting Platform
2. Once the ARM is positioned at the desired height in the MRS RAIL, tighten all 4x SET SCREWS to the tightest possible position on the MOUNTING ADAPTER using a 1/8" hex key. ONE-WAY STOPPER MOUNTING ADAPTER BOTTOM STOPPER SET SCREWS MRS RAIL: LENGTH FOR REPRESENTATIONAL USE ONLY Figure 5 Figure 6 Amico Accessories Inc. -
Page 9: Installation To Horizontal Rail System (Ars) (-At)
2. Install the locking bar by placing it on top of the ARS ADAPTER of the MOUNTING ADAPTER CHANNEL so it is squeezed by the ADAPTER and ARS RAIL. MOUNTING ON A SINGLE ARS MOUNTING ADAPTER CHANNEL ARS RAIL SUPPORT BLOCK Figure 10 www.amico.com... -
Page 10: Mounting To Amico Vertical Rail System (-V)
Section 3: Installation Mounting to Amico VERTICAL RAIL SYSTEM (-V) WARNING: To prevent the V-ADAPTER from falling down the CHANNEL, ensure that the SCREWS are fastened as tight as possible. Verify no movement is present between the ADAPTER and the RAIL. -
Page 11: Mounting Infusion Pump
Section 5: Adjustments Rotation of Arms WARNING: The Infusion Arm has approximately 180° rotation. Ensure proper clearance to avoid collision. NOTE: If the Arm becomes too difficult to rotate or too loose, please contact Amico Accessories. PROJECT #: 617 CUSTOMER... -
Page 12: Adjusting Tensions At The Head
WARNING: The INE ARM(s) has approximately 180 rotation. Ensure proper clea Section 5: Adjustments NOTE: If the arm becomes difficult to rotate, or too loose, please contact Amico Access NOTE: Adjusting the rotational tension of the extension arms can be done by loosening the joints of the arms and the adapter using a 1/2"... -
Page 13: Section 6: Cable Management
Tel: (905) 763.77 PRIVATE AND CONFIDENTIAL www.amico.com Fax: (905) 763.8 DESCRIPTION: THIS PRINT IS PROPERTY OF AMICO ACCESSORIES AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN PART NO: INE-___-12-12-__-__ UPON REQUEST AND WITH THE UNDERSTANDING THAT NO COPIES ARE TO BE MADE WITHOUT THE CONSENT SHT. -
Page 14: Preventative Maintenance
RS model and do not allow liquids to enter. Wipe any cleaning agents off of the RS models immediately using a water-dampened cloth. Dry thoroughly after. No Acetone No Trichloroethylene Acetone is a colorless, Trichloroethylene is a mobile, flammable chlorinated hydrocarbon liquid. commonly used as an industrial solvent. ACETONE TRICHLOROETHYLENE Figure 23 Figure 24 Amico Accessories Inc. -
Page 15: Warranty
Amico Accessories Inc. will warrant its materials to be free from defect for an additional period of four (4) years, (five [5] years from the date of shipment). Within this period, Amico Accessories Inc. will replace any part which is proven to be defective, at no charge. - Page 16 Amico Accessories Inc. | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587 Email: info@amico-accessories.com | www.amico.com AA-IM-INFUSION-EXTENTION-ARM 09.26.2022...
