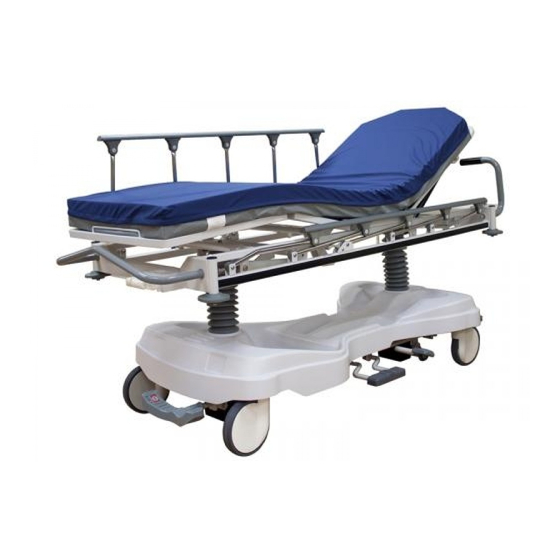

Hydraulic patient transfer stretcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation & Maintenance Manual
Hydraulic Patient Transfer Stretcher
S-H-300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-H-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Amico S-H-300

Summary of Contents for Amico S-H-300

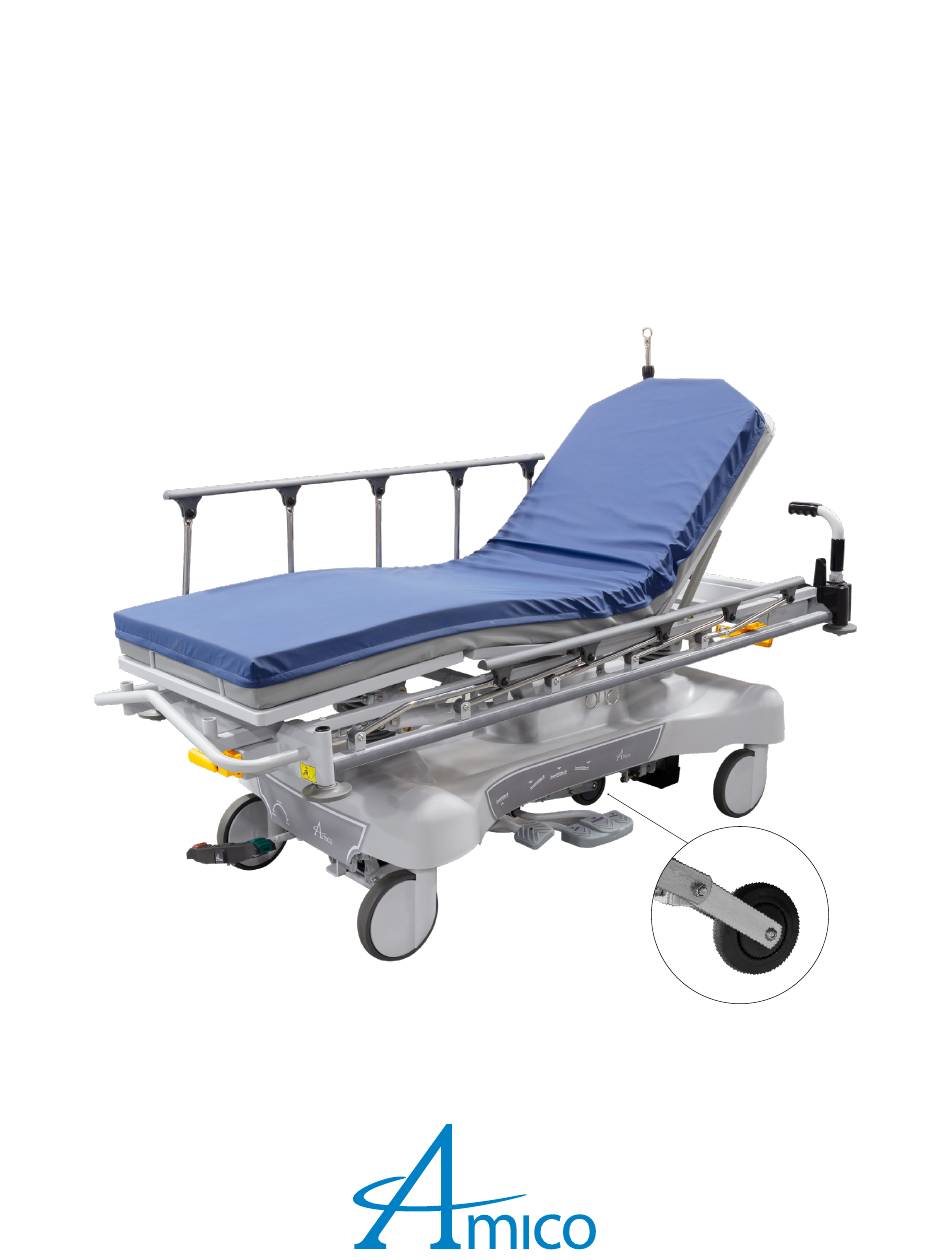

  • Page 1 Operation & Maintenance Manual Hydraulic Patient Transfer Stretcher S-H-300...

  • Page 2: Table Of Contents

    To Raise the Permanent IV Pole To Lower the Permanent IV Pole Safety Tips Brakes Siderails/Restraints/Patient Monitoring Parts and Accessories Operating Stretcher/Surface Precautions Transport Sleep Surface/Mattress Flammability Spray Washing Replacements Parts Preventive Maintenance Cleaning Bleach Cleaning Instructions Mattress Cleaning Instructions Warranty Policy Amico Beds Corporation...

  • Page 3: Intended Use

    This manual provides instructions required for normal operation of the Hydraulic Patient Transfer Stretcher (S-H-300) from Amico Beds Corporation. Prior to operation of this stretcher, it is important that this manual is read to ensure that all safety aspects contained in this manual are strictly adhered to.
  • Page 4 Siderail latch release - To lower the siderail. Keep hands clear. Safe working load - Shows the safe working load of the stretcher. CAUTION: Do not sit on foot section of stretcher while knee section is raised. Amico Beds Corporation...

  • Page 5: Specifications

    Specifications Model Number Model Identification Description S-H-300 Manual Stretcher with Hydraulics Feature Dimension (inches) Dimension (cm) Total Length 84.5 Maximum Width Mattress to Siderail Height Maximum Under Bed Clearance Surface Dimensions Surface Width Surface Length Surface Mattress Thickness Litter Section Fowler Length 28.5...

  • Page 6: Features

    Oxygen tank holder and patient item storage Transport handles Corner bumpers IV pole mounting socket Brake & neutral pedal 8" (203 mm) urethane casters Knee surface articulation crank Fifth wheel Permanent IV pole Down/Trendelenburg/reverse Trendelenburg/low control pedals Utility tray mounting sockets Amico Beds Corporation...

  • Page 7: Siderail Positions

    NOTES: Siderails are intended to be a reminder to the patient of the unit’s edges, not a patient-restraining device. When appropriate, Amico recommends that medical personnel determine the proper methods necessary to ensure a patient remains safely in the stretcher.

  • Page 8: Mattresses

    Mattresses WARNING: Only mattresses that meet Amico specifications and recommendations should be used. Failure to do so could reduce the effectiveness of the safety features and systems incorporated into the stretcher. Personal injury or equipment damage could occur. Push Handles The push handles located at the head and foot ends of the stretcher are used to move the stretcher.

  • Page 9: Brake/Steer System

    Brake/Steer System The brake/steer pedals are located at both the head and foot of the Hydraulic Patient Transfer Stretcher (S-H-300) and it is equipped with a central brake system. WARNING: Unless transporting the patient, always set the brakes when the stretcher is occupied. Reconfirm that the brakes are set before any patient transfer.

  • Page 10: Down/Trendelenburg/Reverse Trendelenburg

    If the stretcher is in the Trendelenburg position, press the reverse Trendelenburg control pedal until the stretcher is level. c. If the stretcher is in the reverse Tredelenburg position, press the Trendelenburg control pedal until the stretcher is level. Amico Beds Corporation...

  • Page 11: Head Section Articulation

    Pull out the crank handle from its stored position under the foot section. b. Turn the crank handle counter-clockwise until the knee surface reaches the desired position. After raising or lowering the knee surface, return the crank to its stored position. www.amico.com...

  • Page 12: Permanent Telescopic Iv Pole

    Permanent Telescopic IV Pole The permanent IV pole is available as an option on the Hydraulic Patient Transfer Stretcher (S-H-300). WARNING: Do not exceed the load capacity of the IV pole. If the IV pole is overloaded, personal injury or equipment damage may occur.

  • Page 13: Safety Tips

    NOTE: Siderails are intended to be a reminder to the patient of the stretcher’s edge, not a patient-restraining device. When appropriate, Amico recommends that medical personnel determine the proper methods necessary to make sure a patient remains safely in the stretcher.

  • Page 14: Parts And Accessories

    Safety Tips PARTS AND ACCESSORIES Use only Amico parts and accessories. Modification of the stretcher shall be at the customer’s risk and liability. OPERATING STRETCHER/SURFACE PRECAUTIONS WARNING: Do not operate the stretcher in the presence of flammable gas or vapors. Doing so could result in personal injury or equipment damage.

  • Page 15: Flammability

    Replacements Parts Description Part Number Hydraulic Actuator B-ST-ACT-01 Siderail Assembly S-SIDERAIL-001 Base Cover S-X-COVER-BASE-01 Roller Bumper S-X-ROLLER-BUMPER Oil Pan S-X-OILPAN Tente® Wheel Caster S-CAS-ST-08B1 IV Hook S-X-IVHOOK Brake Pedal NS-H300-BRAKEPEDAL www.amico.com...

  • Page 16: Preventive Maintenance

    Organizations (JCAHO). PM and testing not only meet JCAHO requirements but will help ensure a long, operative life for the Hydraulic Patient Transfer Stretcher (S-H-300). PM will minimize downtime due to excessive wear. Perform annual preventive maintenance procedures to make sure all Hydraulic Patient Transfer Stretcher (S-H-300) components are functioning as originally designed.

  • Page 17: Mattress Cleaning Instructions

    • Set the bed brake on by pressing on the brake pedals to the brake position. During Cleaning • Do not use abrasive cleaning products. • Do not use oil based products. • Do not use a steam cleaner, washing tunnel, high-pressure spray, or hose. www.amico.com...

  • Page 18: Warranty Policy

    Furthermore, Amico Beds Corporation will warrant its material to be free from defect for an additional period of two (2) years (three (3) years from the date of shipment). Within this period, Amico Beds Corporation will replace any part which is proven to be defective, at no charge.
  • Page 19 Notes www.amico.com...
  • Page 20 Amico Beds Corporation | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada Toll Free Tel: 1.877.462.6426 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: info@amico.com | www.amico.com AB-IM-S-H-300-HYDRAULIC-PATIENT-TRANSFER-STRETCHER 03.30.2022...
