Summary of Contents for Amico Apollo MS-SC

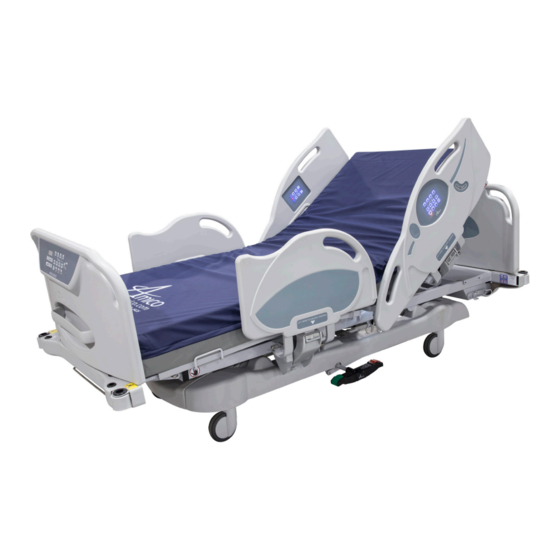

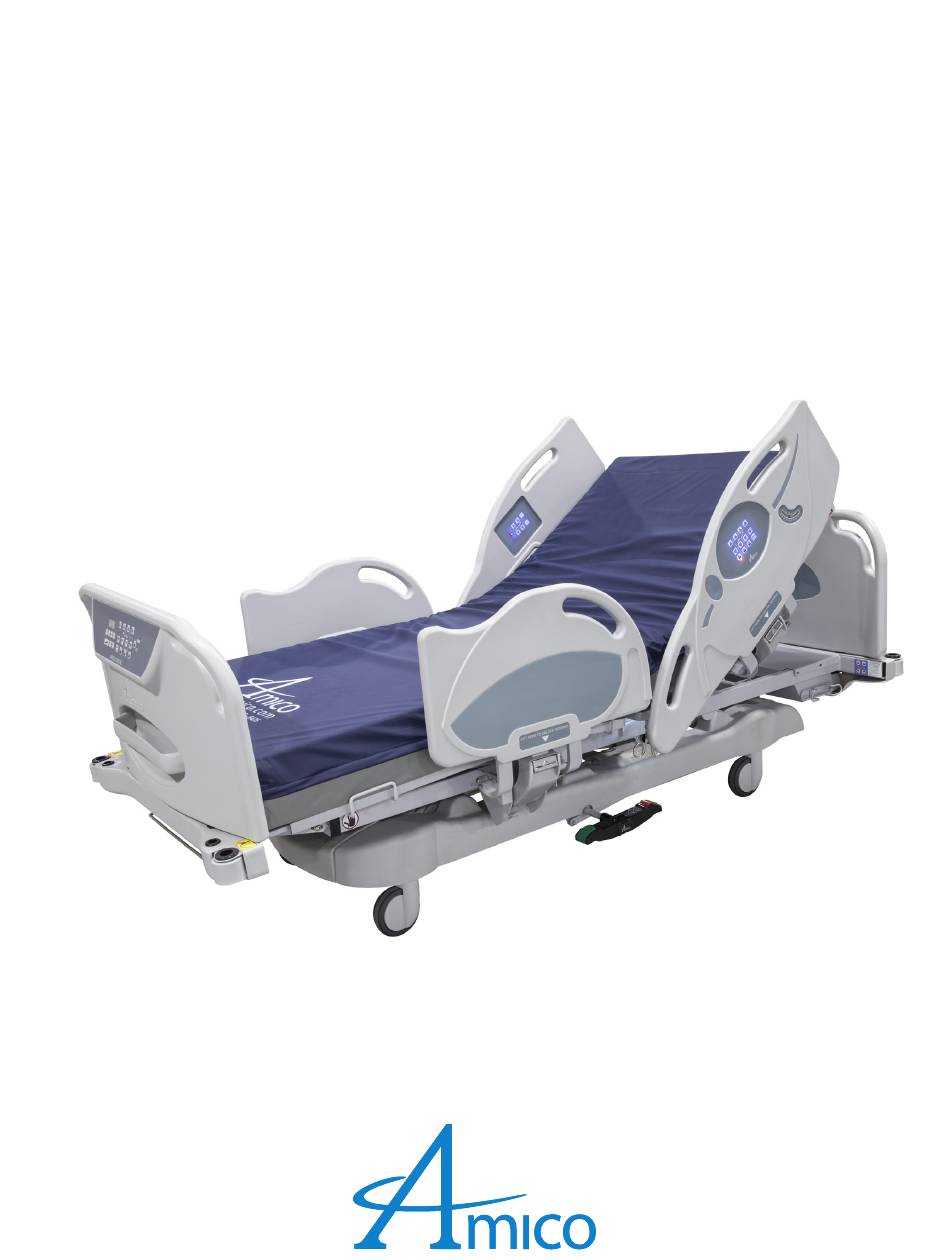

- Page 1 Operation & Maintenance Manual Apollo MS-SC...
-
Page 2: Table Of Contents
Cleaning Procedures Cable Schematic Troubleshooting 19-24 Head Siderail Replacement Foot Siderail Replacement Batteries Control Boxes with Battery Back Up Only 28-30 Components List 31-34 Accessories List Replacement Parts List 36-39 Cables Electromagnetic Compatibility 41-44 Warranty Policy Notas 46-47 Amico Beds Corporation... -
Page 3: Specifications
Specifications Model Number Model Identification/Description B-AM1-4002 Apollo MS-SC (MedSurg Bed) Feature Dimension (inches) Dimension (cm) Total Length Maximum Width Mattress to Siderail Height Maximum Under Bed Clearance Surface Dimensions Surface Width Surface Length Surface Mattress Thickness Litter Section Fowler Length 32.5... - Page 4 95% non-condensing Pressure 50 KPa to 106 KPa Environmental Conditions for Use Temperature 50 °F to 95 °F (10 °C to 35 °C) Relative Humidity 20% to 85% non-condensing Pressure 70 KPa to 106 KPa *without mattress Amico Beds Corporation...
-
Page 5: Description Of Symbols
Equipotential Ground Location Safe Working Load - Shows the safe working load of the bed. WARNING: Do not operate the bed beyond the recommended Patient Characteristics. Failure to observe this warning may result in patient injury or equipment damage. www.amico.com... -
Page 6: Warnings
Note the location of cords or hoses during bed movements. Proper line management is essential to reduce the chance of catching or pinching hazards from occurring. Only use accessories approved for the Apollo MS-SC bed. See “Accessories List” (Page 35) for list of approved accessories and usage guidelines. -
Page 7: Intended Use
The Apollo MS-SC bed is intended for patients in Acute-Care and L.T.A.C. hospitals. This Manual provides instructions required for normal operation of the Apollo MS-SC bed from Amico Beds Corporation. Prior to operation of this bed, it is important that this manual is read and ensure that all safety aspects contained in this manual are strictly adhered to. -
Page 8: Features
Features Item Description Item Description Mattress Base Cover Foldable Siderails Brake Pedal Footboard IV Pole Mounting Socket Corner Roller Bumpers Headboard 5" (13 cm) urethane Casters Amico Beds Corporation... -
Page 9: Siderail & Footboard Controls
Siderail & Footboard Controls The Apollo MS-SC utilizes four 24V DC LINAK actuators to enable the bed to achieve the following motions: • Head (Fowler) UP • Head (Fowler) DOWN • Knee UP • Knee DOWN • Bed UP • Bed DOWN •... -
Page 10: Siderail Controls
*NOTE: For the safety of the patient, only the Head UP/DOWN and Knee UP/DOWN motions are available on the interior siderail controls. It is recommended that the Lock-Out feature be used to restrict these motions if articulation may cause the patient further injury. Amico Beds Corporation... -
Page 11: Footboard Controls
Displays the weight or error codes. Press this button to display the patient weight to an accuracy of one decimal place. Accuracy Button e.g., Default display of the patient weight is 185 lbs. Pressing the Accuracy Button shows 184.8 lbs. www.amico.com... - Page 12 NOTE: The “Total Lock Out” feature (Button K) will disable all bed movement controls except for emergency CPR. NOTE: “Lock Out” features (Buttons J and K) will also disable bed movement controls on the Patient Hand Pendant. Amico Beds Corporation...
-
Page 13: Central Locking System
NOTE: The CPR Release should only be used for emergencies only. It is recommended that the fowler section is completely lowered to a flat position when the CPR release lever is used. Avoid using the CPR Release to attain an angled fowler. www.amico.com... -
Page 14: Installation And Removal Of The Head/Footboards
To remove headboard/footboard, lift vertically until the pins come out of the plastic guides. Siderails Lowering Siderails: a. To lower the siderails, place hand under the plastic latch and pull forward. Once latch is released, the siderail will slowly lower. Amico Beds Corporation... -
Page 15: Electrical
The Apollo MS-SC features two exterior siderail controls for caregivers and two interior siderail controls for patients. The Apollo MS-SC utilizes a multi-pin jack to connect to the hospital’s nurse call system. The jack is located at the head- end of the bed on the patient's left side. To connect the nurse call feature, plug one end of the multi-pin cord* into the bed-mounted jack and the other end into the wall-mounted jack. -
Page 16: Preventive Maintenance
(PM) and testing for Joint Commission on Accreditation of Health Care Organizations (JCAHO). PM and testing not only meet JCAHO requirements but will help ensure a long, operation life for the Apollo MS-SC bed. Preventive maintenance will minimize downtime due to excessive wear. -
Page 17: Cleaning Procedures
To Disinfect: • Wash the surface with one of the approved cleaners or refer to the “Bleach Cleaning Instructions“ if bleach needs to be used • Wipe off residue with water using a soft cloth or sponge • Thoroughly dry www.amico.com... -
Page 18: Cable Schematic
Cable Schematic Amico Beds Corporation... -
Page 19: Troubleshooting
• If any cables need to be replaced, consult the “Cable Schematic” and note the corresponding part number. • To remove damaged cables, use the wire cutters to remove any cable ties holding the cable in place. Note the location of the cable tie(s) so that the new cable is secured in the same place(s). www.amico.com... - Page 20 • Refrain from using the bed functions for at least 20 minutes. This will allow the Control Box and the Actuators to cool down. • After 20 minutes, confirm that the overheating error has stopped by resuming normal bed functions. Amico Beds Corporation...
- Page 21 If the pendant works, please contact the Amico Beds CSR for support. c. If the pendant still does not work, please contact Amico Beds CSR to request a replacement. (See “Replacement Parts List” for part number).
- Page 22 (See “Replacement Parts List” for part number). d. If the brakes still do not work, please contact Amico Beds CSR or your Amico Sales Executive for support.
- Page 23 remains, the Load Cell Interface may have been cannot detect the Load Cell Interface. damaged or failed. Contact Amico Beds Customer Service for support. ...
- Page 24 cleared. This occurs if Load Cell #1 is disconnected or has failed. • If the error code reappears, contact Amico Beds ...
-
Page 25: Head Siderail Replacement
Head Siderail Replacement WARNING: Replacement of Siderail MUST be completed per the instructions below and only using Amico approved parts. Failure to comply may result in significantly-reduced effectiveness of the safety features of the system. Step Procedure Illustrations Locate Head Siderail that requires replacement. -
Page 26: Foot Siderail Replacement
Foot Siderail Replacement WARNING: Replacement of Siderail MUST be completed per the instructions below and only using Amico approved parts. Failure to comply may result in significantly-reduced effectiveness of the safety features of the system. Step Procedure Illustrations Locate Foot Siderail that requires replacement. -
Page 27: Batteries
WARNING: To attain the longest battery life, it is recommended to recharge the battery frequently and prevent it from discharging as much as possible. WARNING: Remember always to have the control box plugged to the main power, thereby keeping the batteries fully charged all the time. www.amico.com... -
Page 28: Control Boxes With Battery Back Up Only
The mentioned charging should last min. 24 - 48 hours and longer if possible. Charging current: Typical rule: Maximum charging current = 0.25 x battery capacity (Ah) BAJ1/2 JUMBO: 0.25 x 2.9 = 0.7A BA1800: 0.25 x 1.2 = 0.3A Charging voltage: 24V system: Maximum 27.60V Amico Beds Corporation... - Page 29 • We therefore recommend you always to have the control box plugged to the main power, to keep the batteries fully charged. 80% capacity ~ up to 4-5 hours charging time 100% capacity ~ up to 10 hours charging time depending on the level of discharging depending on the level of discharging Battery Charging Characteristics Charging Time www.amico.com...
- Page 30 WARNING: It is not prohibited to use batteries that are not from LINAK’s product range as this will result in overloading LINAK’s battery charger. If replacement batteries are required, please contact Amico Beds CSR for support. (See “Replacement Parts List” for part number)
-
Page 31: Components List
Lower Hi-Lo Arm Cover (Bottom) B-PCOVER-UARMS-001 Upper Hi-Lo Arm Cover (Left) B-PCOVER-UARMS-002 Upper Hi-Lo Arm Cover (Right) B-X-BASECVR-FOOT2 Base Cover - Foot B-X-BASECVR-HEAD2 Base Cover - Head B-X-BASECVR-LEFT2 Base Cover - Left B-X-BASECVR-RIGHT2 Base Cover - Right S-BRAKE-PEDAL Brake Pedal www.amico.com... - Page 32 Components List Amico Beds Corporation...
- Page 33 Cover Plate D-Sub 37-Pin Connector Cover Plate (NOT SHOWN) B-X-GASSPRING-300 Fowler Gas Spring B-FOLDIV Foldable I.V. Pole S-X-IVPOLE-SUPPORT Foldable I.V. Pole Support B-X-FOOT-013 Slide Plate Spacer (NOT SHOWN) B-X-FOOT-SLIDER Slide Plate B-X-PGUIDE-FOOTEXT Foot Extension Lock Plastic Guide B-X-FOOTEXT-LOCK Food Extension Lock www.amico.com...
- Page 34 THIS PRINT AND INFORMATION HEREIN IS CONFIDENTIAL AND IS THE PROPERTY OF AMICO BEDS CORPORATION. IT IS NOT TO BE COPIED OR REPRODUCED WITHOUT WRITTEN PERMISSION OF AMICO BEDS CORPORATION.
-
Page 35: Accessories List
36" wide x 6" thick. Failure to adhere to these Please contact dimensions may result in non-compliance to entrapment Amico Beds for more guidelines as outlined by IEC 60601-2-38, thus increasing the information risk of patient injury or death. -
Page 36: Replacement Parts List
ETS Plastic Bushing B-X-PBUSHING-ETS IV Pole Plastic Insert S-X-PBUSHING-IVPOLE FB Plastic Insert B-X-PBUSHING-FB FB Plastic Insert - Slotted B-X-PBUSHING-FB-SL Footboard PCB Support B-X-SUPPCB-FOOT-VER3 Foot Extender Seam Cover B-X-SEAMCOVER Control Unit Cover B-X-CTRBOXCVR Base Cover - Foot B-X-BASECVR-FOOT Amico Beds Corporation... - Page 37 B-X-PBUSHING-CASTARM Lower Long Arm Cover - Top B-PCOVER-LARMS-001 Lower Long Arm Cover - Bottom B-PCOVER-LARMS-002 Upper Long Arm Cover - Left B-PCOVER-UARMS-001 Upper Long Arm Cover - Right B-PCOVER-UARMS-002 Siderails - Head Left B-4000-SRAIL-LHEAD Siderails - Foot Left B-4000-SRAIL-LFOOT www.amico.com...
- Page 38 Siderails - Foot Right B-4000-SRAIL-RFOOT Tente© Caster 5" Total Lock Unidirectional B-CAS-UNI-05B1 Tente© Caster 5" Total Lock Directional B-CAS-DIR-05B1 Brake Pedal S-X-BRAKE-PEDALP Foot Roller B-X-FOOT-ROLLER Footboard B-FOOTBOARD CPR Release Cable B-CPR-CABLEASSY Head End Cover B-X-ENDCVR-HEAD Foot End Cover B-X-ENDCVR-FOOT Amico Beds Corporation...
- Page 39 LINAK DC Actuator – Fowler B-X-ACT-01-FOWLER LINAK DC Actuator – Knee B-X-ACT-01-KNEE LINAK DC Actuator – Hi-Lo B-X-ACT-01-HILO NOTE: If you require a part that does not appear in the “Replacement Parts List” please contact your Amico Sales Executive for assistance. www.amico.com...
-
Page 40: Cables
37-pin Nurse Call Connector B-X-CBL-37PIN-06 72" long WARNING: It is NOT recommended to use cables that are not designed for the B-AM1-400X bed. Failure to comply could result in personal injury or equipment damage, and may void the product’s warranty. Amico Beds Corporation... -
Page 41: Electromagnetic Compatibility
• Mobile RF communications equipment can affect the product. • The use of accessories and cables other than those supplied with the product as replacement parts, with exception for cables sold by Amico Beds Corporation, may result in increased emission or decreased immunity of the product. - Page 42 NOTE: This medical device is a patient support and handling device with an electro-mechanical system, able to achieve various heights and positions for the litter sections as required per the end user. The device meets this essential performance at the above compliance levels. Amico Beds Corporation...
- Page 43 Apollo Bed (B-AM1-400X) should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the Apollo Bed (B-AM1-400X). : Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. www.amico.com...
- Page 44 Operation of this equipment is a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. WARNING: Changes or modifications not expressly approved by Amico Beds Corporation could void the user’s authority to operate the equipment.
-
Page 45: Warranty Policy
Furthermore, Amico Beds Corporation will warrant its material to be free from defect for an additional period of two (2) years (three (3) years from the date of shipment). Within this period, Amico Beds Corporation will replace any part which is proven to be defective, at no charge. -
Page 46: Notas
Notas Amico Beds Corporation... - Page 47 Notas www.amico.com...
- Page 48 Amico Beds Corporation | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada Toll Free Tel: 1.877.462.6426 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: info@amico.com | www.amico.com AB-OM-APOLLO-MS-SC 07.29.2019...
