Summary of Contents for Amico Hummingbird HMA-PR-A-18

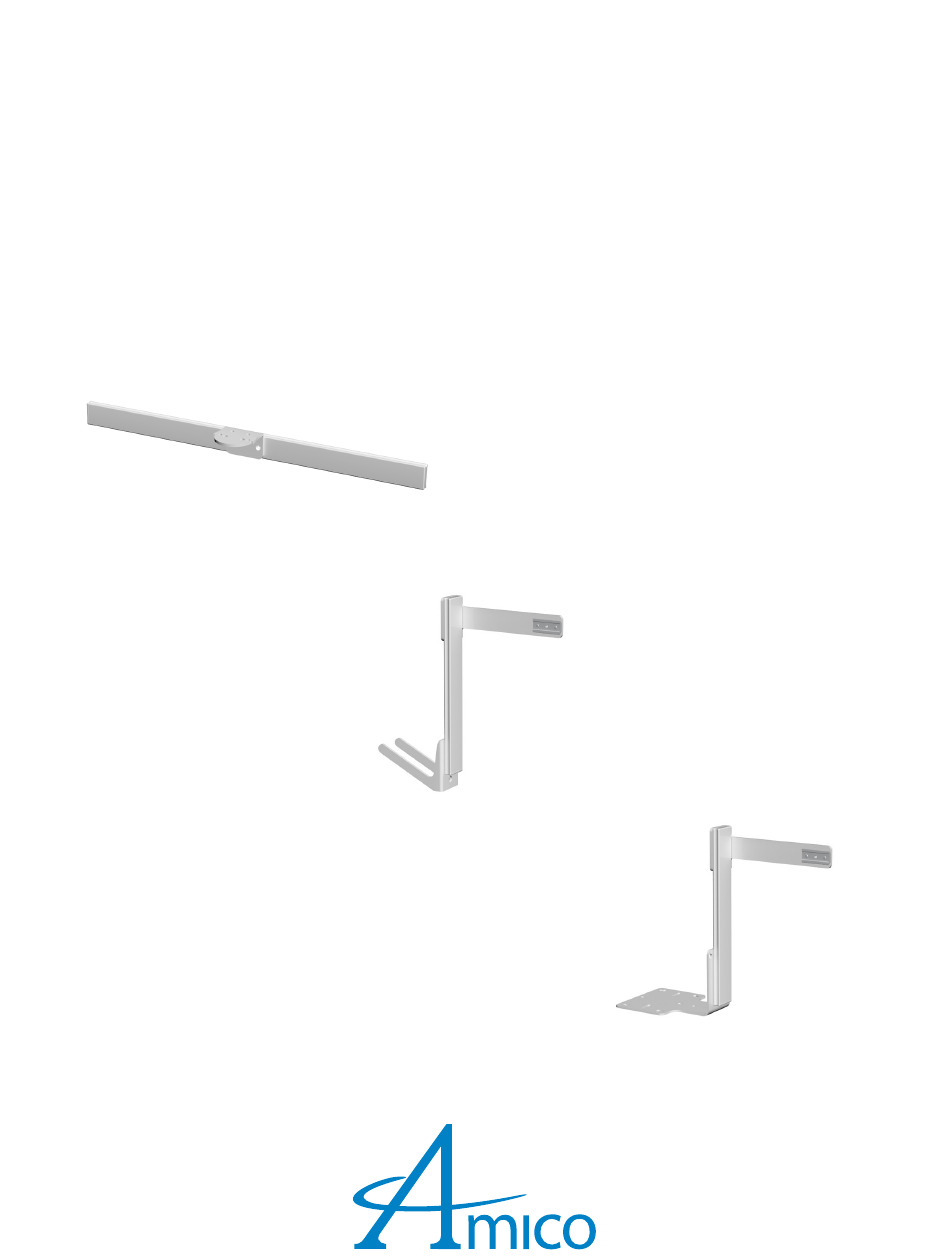

- Page 1 Installation Instructions Hummingbird Perch Rail & Accessories...
- Page 2 This unit is designed for long lasting performance, providing the end user complies with assembly and maintenance procedures. This Instruction Manual is your guide to ensure that you get the best performance out of the equipment. Amico Accessories Inc. is not responsible for any damage as a result of (but not limited to) abuse and other problems that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
-
Page 3: Table Of Contents
Adjusting Position of 9” Drop Bracket On the Perch Horizontally Adjusting the Height of the Accessory along the 9” Drop Bracket Section 8: Troubleshooting, Preventative Maintenance, Storage, & Cleaning Troubleshooting Preventative Maintenance Cleaning Section 9: Amico Warranty Policy Notes www.amico.com... -
Page 4: Section 1: Product Specifications
End Cap Hardware Kit for HMW Perch, Bump, 4.0" x 4.0" x 1.0" 0.1 lbs HMA-PR-ADJ-KIT Ergonomic rail, or accessories with LA9/FD9 Not applicable (10.2 cm x 10.2 cm x 2.5 cm) (0.05 kg) (only service part number). Amico Accessories Inc. -
Page 5: Lcd Monitor Weight Limit On Hummingbird Cart - Used With Perch And Accessories Installed
9 lbs. (4.08 kg) Section 2: Installation Preparation Installation Tools Please confirm your product model before proceeding. NOTE: THE TOOLS REQUIRED FOR INSTALLATION ARE NOT PROVIDED BY AMICO ACCESSORIES INC. Trigger Clamp Scissors #2 Philip’s Head Screwdriver Hex Key: 5/64" and 3/16"... -
Page 6: Section 3: Installation Of Perch Rail
INSTALLED AFTER SECURING THE HUMMINGBIRD CART BY LOCKING THE CASTERS. IT IS THE RESPONSIBILITY OF THE CUSTOMERS TO VERIFY THAT THE HUMMINGBIRD CART LOCKING LEVER HAS BEEN INSTALLED IN ACCORDANCE WITH AMICO INSTALLATION INSTRUCTIONS. 1. Lock the CASTERS by stepping on the LOCKING LEVER (on UNLOCK each caster) such that it clicks in the down position (Figure 1). -
Page 7: Section 4: Installation Of Perch Accessory On Perch Rail
HUMMINGBIRD CART BY LOCKING THE CASTERS. IT IS THE RESPONSIBILITY OF THE CUSTOMERS TO VERIFY THAT HUMMINGBIRD CART HAS BEEN INSTALLED IN ACCORDANCE WITH AMICO INSTALLATION INSTRUCTIONS. 1. Lock the CASTERS by step on the LOCKING LEVER (on each CASTER) such that it clicks in the down position (Figure 4). - Page 8 2b. Flip the horizontal bar as shown below and tightening the 2x #8 FLAT HEAD SCREWS (H-FHMS-832-38-P) from the END CAP HARDWARE KIT (HMA-PR-ADJ-KIT) using #3 Philip’s Head screwdriver (Figure 7) and put the AMICO RECTANGLE LABEL back (Figure 8).
- Page 9 (Figure 11). Total range for the WIRELESS BARCODE SCANNER DOCK HOLDER (HMA-BARCDHLD2-LA9) adjustment on the PERCH RAIL (HMA-PR-A-18) is 4.375" (11.1 cm), which starts from 0.4" (1.0 cm) away from the PERCH RAIL’S (HMA-PR-A-18) edge (Figure 12). 4.375" LRS DOVETAIL 0.400" (X-LRS-DT15) Figure 10 Figure 11 Figure 12 www.amico.com...
- Page 10 2X #8 FLAT HEAD SCREWS (H-FHUMS-832-38-P) LABEL Figure 17 Figure 18 8. To install the secondary scanner docking plate on the WIRELESS BARCODE SCANNER DOCK HOLDER (HMA-BARCDHLD2-LA9), refer to Section 3: Device Installation in the Amico Barcode Dock Mount Manual. https://www.amico.com/products/equipment-mounts/room-accessories-organization/barcode-dock-mount Amico Accessories Inc.
-
Page 11: Section 6: Adjustment
LOCKING CASTER (GREEN) LOCK Figure 19 2. Remove the AMICO RECTANGLE LABEL (Figure 20) and unscrew the 2x #8 FLAT HEAD SCREWS (H-FHUMS-832-38) of the WIRELESS BARCODE SCANNER DOCK HOLDER (HMABARCDHLD2-LA9) using #3 Philip’s Head screwdriver (Figure 21). BARCODE HOLDER (BARCDHLD2-LA9) - Page 12 SCREWS (H-FHUMS-832-38-P) from the END CAP HARDWARE KIT (HMA- Figure 26 Figure 27 PR-ADJ-KIT) using #3 Philip’s Head screwdriver (Figure 26), then put on the AMICO RECTANGLE LABEL (Figure 27). Amico Accessories Inc. MATERIAL: 85 Fulton Way Richmond Hill, Ontario...
-
Page 13: Adjusting Position Of 9" Drop Bracket On The Perch Horizontally
Adjusting the Height of the Accessory along the 9" Drop Bracket Removed the AMICO ROUND LABEL (Figure 28) and unscrew the 2X #8 FLAT HEAD SCREW (H-FHCS-832-38) by using #3 Philip’s Head screwdriver to disconnect the BARCODE SCANNER MOUNTING PLATE (Figure 29). - Page 14 4. Install the BARCODE HOLDER MOUNTING PLATE with 2x #8 FLAT HEAD CREWS (H-FHCS-832-38-P) from the END CAP HARDWARE KIT (HMA-PR-ADJ-KIT) by using a #3 Philip’s Head screwdriver (Figure 34), then put the AMICO ROUND LABEL back (Figure 35). AMICO...
-
Page 15: Section 8: Troubleshooting, Preventative Maintenance, Storage, & Cleaning
Never submerge the product or allow liquids to enter it. Wipe any cleaning agents off the product immediately using a water- dampened cloth. Finally, dry the product thoroughly. No Acetone No Trichloroethylene ACETONE IS A COLORLESS, TRICHLOROETHYLENE IS A MOBILE, FLAMMABLE LIQUID. CHLORINATED HYDROCARBON COMMONLY USED AS AN Acetone Trichloroethylene INDUSTRIAL SOLVENT. www.amico.com... -
Page 16: Section 9: Amico Warranty Policy
(five [5] years from the date of shipment), and electrical materials to be free from defect for an additional period of two (2) years (three [3] years from the date of shipment), except for SLA or any Hot Swap battery which is not manufactured by Amico Accessories Inc. -
Page 17: Notes
Notes www.amico.com... - Page 18 Amico Accessories Inc. | 122 East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587 Email: info@amico-accessories.com | www.amico.com AA-IM-HUMMINGBIRD-PERCH-RAIL-ACCESSORIES 03.06.2025...
