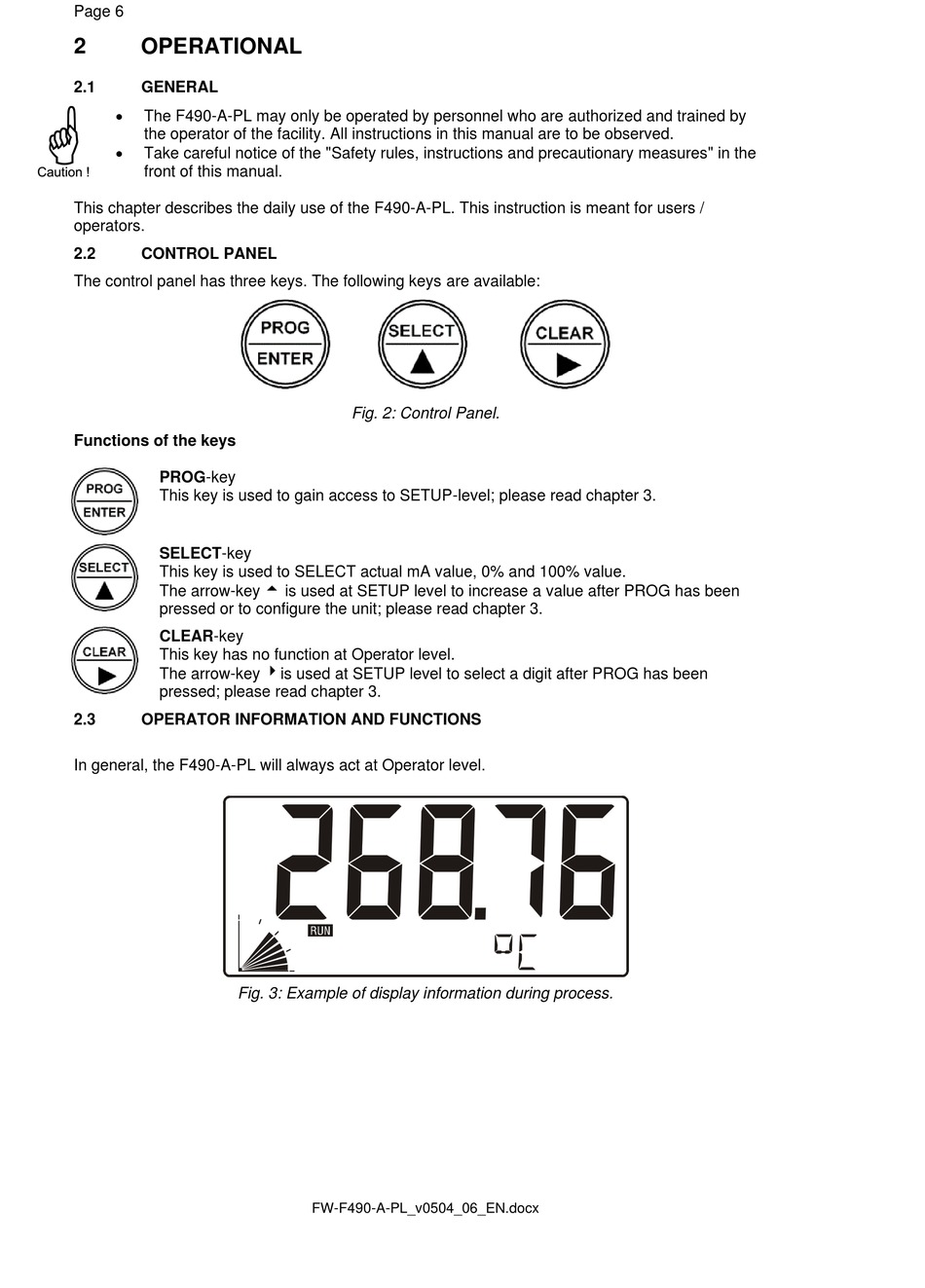

Page 6
2

OPERATIONAL

2.1

GENERAL

•
The F490-A-PL may only be operated by personnel who are authorized and trained by
the operator of the facility. All instructions in this manual are to be observed.
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
This chapter describes the daily use of the F490-A-PL. This instruction is meant for users /
operators.
2.2

CONTROL PANEL

The control panel has three keys. The following keys are available:
Functions of the keys
PROG-key
This key is used to gain access to SETUP-level; please read chapter 3.
SELECT-key
This key is used to SELECT actual mA value, 0% and 100% value.
The arrow-key  is used at SETUP level to increase a value after PROG has been
pressed or to configure the unit; please read chapter 3.
CLEAR-key
This key has no function at Operator level.
The arrow-key is used at SETUP level to select a digit after PROG has been
pressed; please read chapter 3.
2.3

OPERATOR INFORMATION AND FUNCTIONS

In general, the F490-A-PL will always act at Operator level.
Fig. 2: Control Panel.
Fig. 3: Example of display information during process.
