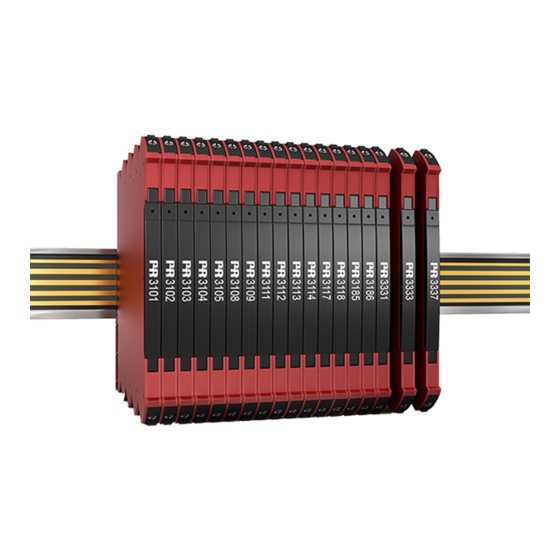

Product manual
3000
6 mm series of
temperature converters
ZONE 2
Zone 2
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
Models no. 3101 / 3102 / 3111 / 3112 / 3113 /
3331 / 3333 / 3337
No. 30 0 0V10 6 - UK
ZONE 2 / DIV 2
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY
Advertisement
Table of Contents
Related Manuals for PR electronics 3000
Summary of Contents for PR electronics 3000

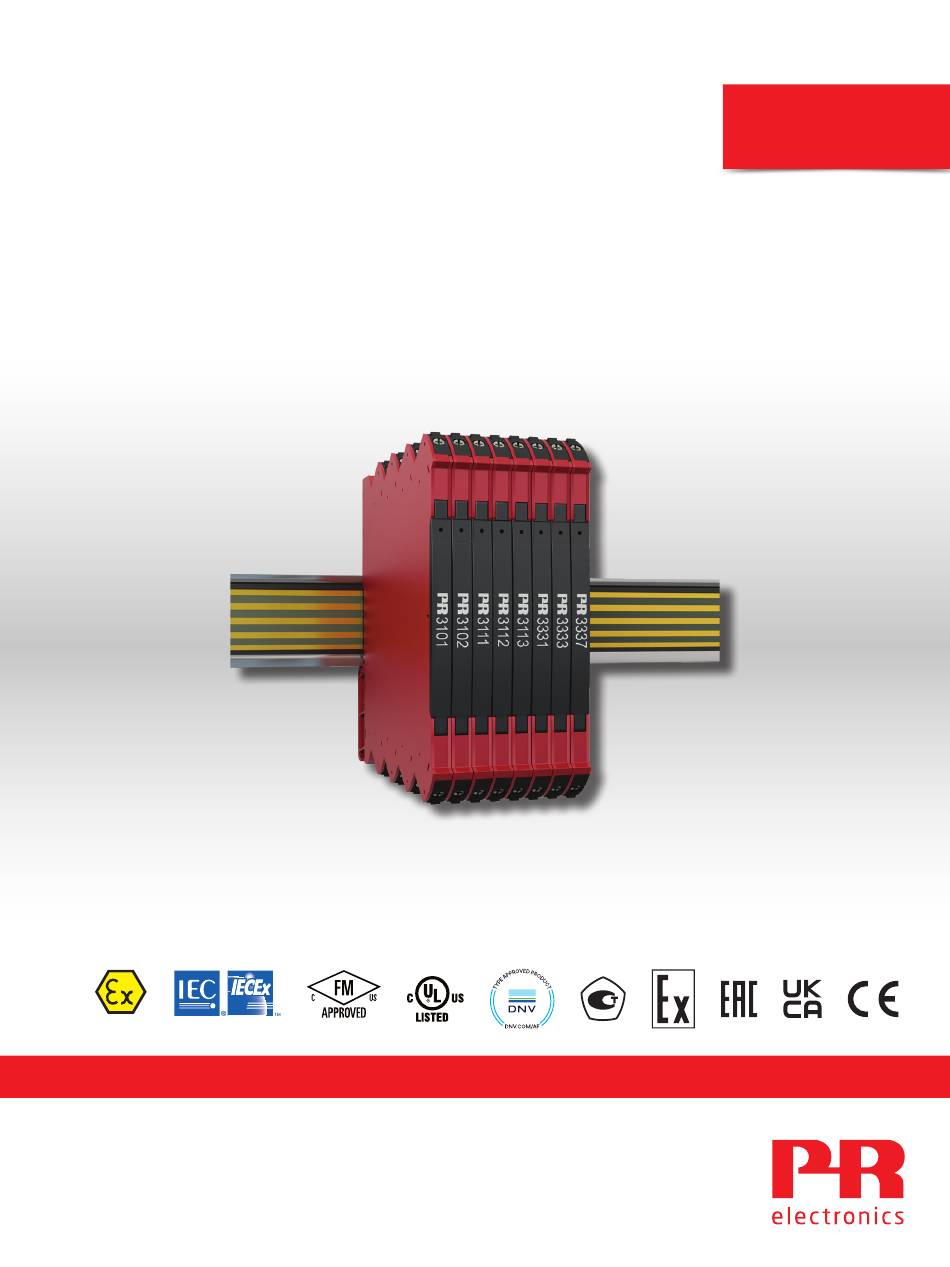

- Page 1 PERFORMANCE MADE SMARTER Product manual 3000 6 mm series of temperature converters ZONE 2 Zone 2 ZONE 2 / DIV 2 T E M P E R AT U R E I . S . I N T E R FA C E S...
- Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
-
Page 3: Table Of Contents
Mounting / demounting of system 3000 ........ -
Page 4: Warnings
To avoid explosion and serious injury: Modules having mechanical failures must be returned to PR electronics for repair or replacement. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Until the device is fixed, do not connect hazardous voltages to the device. -
Page 5: Safety Instructions
A power switch should be easily accessible and close to the device. The power switch shall be marked as the disconnecting unit for the device. SYSTEM 3000 must be mounted on a DIN rail according to EN 60715. Year of manufacture can be taken from the first two digits in the serial number. -
Page 6: Mounting / Demounting Of System 3000
System 3000 devices can be mounted on DIN rail or power rail (where applicable). When installing system 3000 devices with power rail connectors on a standard 7.5 mm DIN rail the head of the screws holding the rail shall be no more than 3.5 mm high to prevent potential short circuit of the power rail connectors. -
Page 7: Installation On Din Rail / Power Rail
Marking The front cover of the 3000 devices has been designed with an area for affixation of a click-on marker. The area assigned to the marker measures 5 x 7.5 mm. Markers from Weidmüller’s MultiCard System, type MF 5/7.5, are suitable. -
Page 8: Flexible Supply
Flexible supply The technical specifications specify the maximum required power at nominal operating values, e.g. 24 V supply voltage, 60°C ambient temperature, 600 Ω load, and 20 mA output current. External protective fuses may be required depending on power source selected. Protective fuse ratings are specified below. DIN rail solution - device daisy chain: Power rail solution #2: The 3101, 3102, 3111, 3112 and 3113 can be... -
Page 9: Applications
• All terminals are protected against overvoltage and polarity error. • Meeting the NAMUR NE21 recommendations, the system 3000 devices ensure top measurement performance in harsh EMC environments. • The devices meet the NAMUR NE43 standard defining out of range and sensor error output values. -
Page 10: Connections
Connections Input wiring External CJC (2- or 3-wire Pt100) Type *3101 - only 3101 internal CJC 1,2 & 3,4 1,2 & 3 2 & 3 3102 3111 1,2 & 3,4 1,2 & 3 2 & 3 3112 1,2 & 3,4 1,2 &... -
Page 11: Product Overview
Product overview Input Output Pt100 Current Supply Isolated HART Volt age Ext. 2-, 3-, J & K Int. CJC Active Passive 4-wire 3101 24 VDC 3102 24 VDC 24 VDC / 3111 2.5 kV ... -
Page 12: Technical Data
Technical data Environmental conditions: Operating temperature ....... . -25°C to +70°C Storage temperature . - Page 13 Response time HART read only Selectable HART mode mode < 30 ms < 300 ms < 60 ms 0.06...60 s 3101 3102 3111 3112 3113 3331 3333 ...
- Page 14 Open Thermocouple detection......Yes – selectable via DIP-switch Internal CJC error detection......Yes External CJC error detection .
-
Page 15: Dip-Switch Configuration
DIP-switch configuration Applicable devices can be configured via DIP-switches. The DIP-switches are located on the side of the device and can be adjusted with a small screwdriver or other implement. Default factory settings (with all DIP-switches in the OFF position): 3102, 3112, 3331, 3333 3101, 3111 3113, 3337... -
Page 16: Temperature Range Programming
Temperature range programming Please note: • 3101 and 3111 - only TC input available Valid TC J range: -100...+1200°C = correct DIP-switch setting Valid TC K range: -180...+1372°C = correct DIP-switch setting • 3102, 3112 and 3333 - only Pt100 input available Valid Pt100 range: -200...+850°C = correct DIP-switch setting •... -
Page 17: Operation & Troubleshooting
Operation & troubleshooting The 3000 series devices provide multiple features for easy user operation and for performing efficient troubleshooting. Monitoring the operational status is easy from the front LED. Status indicator front LED For 3101, 3102, 3111, 3112 and 3113... -
Page 18: Installation Instructions
Canada in the Canadian Electrical Code (C22.1). The 3000 System Isolators and Converters must be connected to limited output NEC Class 2 circuits, as outlined in the National Electrical Code® (ANSI / NFPA 70), only. If the devices are connected to a redundant power supply (two separate power supplies), both must meet this requirement. -
Page 19: Document History
Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1803 Models 31xx-N added. Specifications for max. required power and power dissipation added. PESO/CCOE approval added. 2037 EAC Ex approval added. PESO/CCOE approval discontinued . 2108 ATEX and IECEx approvals updated - Ex na changed to Ex ec. - Page 20 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
- Page 21 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
