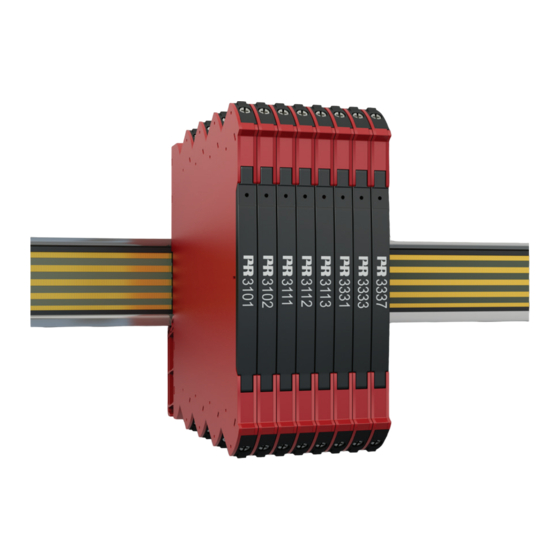

3000 series, 6 mm series of temperature converters
Hide thumbs Also See for 3101:

Advertisement

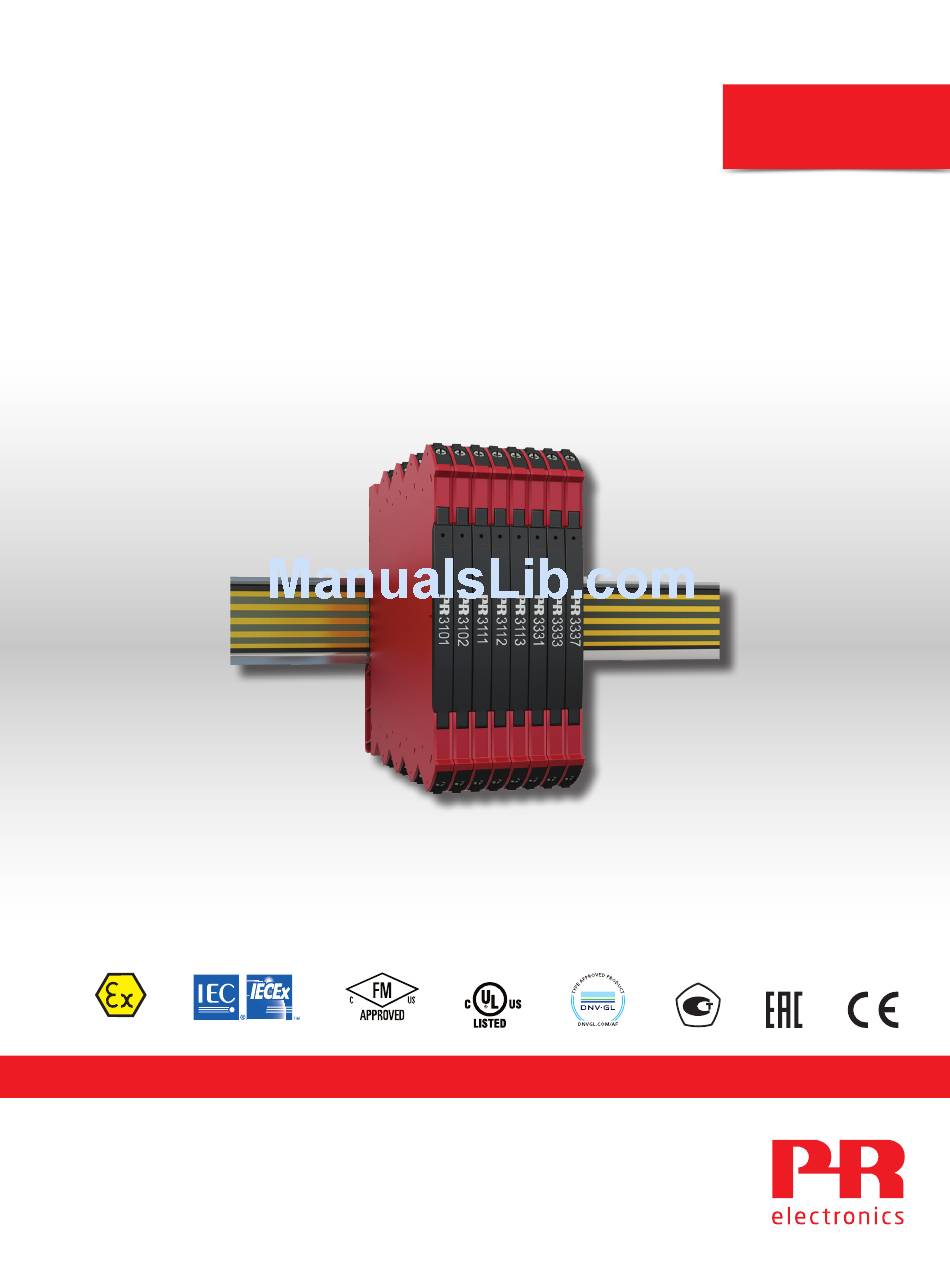

Product manual
3000 series
6 mm series of
temperature converters
ZONE 2
Zone 2
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
Models no. 3101 / 3102 / 3111 / 3112 / 3113 /
3331 / 3333 / 3337
No. 30 0 0V103- UK
From ser. no 1316670 01
ZONE 2 / DIV 2
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PR electronics 3101

  • Page 1 M U LT I F U N C T I O N A L I S O L AT I O N D I S P L AY Models no. 3101 / 3102 / 3111 / 3112 / 3113 / 3331 / 3333 / 3337 No. 30 0 0V103- UK...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
  • Page 3: Table Of Contents

    6 mm series of temperature converters 3101 / 3102 / 3111 / 3112 / 3113 / 3331 / 3333 / 3337 Table of contents Warning ....................
  • Page 4: Warning

    To avoid explosion and serious injury: Modules having mechanical failures must be returned to PR electronics for repair or replacement. Repair of the device must be done by PR electronics A/S only. In applications where hazardous voltage is connected to in-/outputs of the device, sufficient spacing or isolation from wires, terminals and enclosure - to surroundings (incl.
  • Page 5: Ul Installation

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location.
  • Page 6 When the temperature under rated conditions exceeds 70°C at the cable or conduit entry point, or 80°C at the branching point of the conductors, the temperature specification of the selected cable shall be in compliance with the actual measured temperature. Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 40%.
  • Page 7: Flexible Supply

    Note: Device type 3101, 3102, 3111-N, 3112-N, 3113-N, 3331, 3333 and 3337 can only be supplied via the DIN rail solution with direct wiring on each device. (*) External fuse characteristics: The 2.5 A fuse must break after not more than 120 seconds at 6.4 A.
  • Page 8: Mounting And Demounting Of System 3000

    Mounting and demounting of system 3000 Picture 1: Mounting on DIN rail / power rail. Click the device onto the rail. Picture 2: Demounting from DIN rail / power rail. First, remember to demount the connectors with hazardous voltages. Detach the device from the DIN rail by lifting the bottom lock. Picture 3: Wire size AWG 26-12 / 0.13 x 2.5 mm stranded wire.
  • Page 9: Installation On Din Rail / Power Rail

    Installation on DIN rail / power rail Module stop The devices in the 3000 series can be installed on a DIN rail or on a power rail (only 3111, 3112 and 3113). For marine applications the devices must be supported by a module stop (PR part number 9404). Power supply units can be mounted on the power rail according to customer requirements.
  • Page 10: Side Label

    Side label Terminal numbers Type no. connections Approvals 3000V103-UK...
  • Page 11: Applications

    6 mm series of temperature and converters 3101 / 3102 / 3111 / 3112 / 3113 / 3331 / 3333 / 3337 • Converts process measurements from Pt100, TC J and K temperature sensors to voltage or current outputs • Multiple pre-calibrated temperature ranges are selectable via DIPswitches •...
  • Page 12: Order Codes

    Order codes Input Output Pt100 Current Supply Isolated HART Volt age Ext. 2-, 3-, J & K Int. CJC Active Passive 4-wire 3101 24 VDC      3102 24 VDC     24 VDC / 3111 2.5 kV...
  • Page 13 3337 ......... . 6.2...35 VDC Power requirements: Max. power Max. required Type dissipation power 3101 0.52 0.52 3102 0.52 0.52 3111 0.70...
  • Page 14 ≤ ± 0.1% of span 0.1°C/°C (basic) or 3101 ≤ 1°C ≤ ± 0.01% of span / °C EMC immunity influence ....... < ±0.5% of span Extended EMC immunity: NAMUR NE 21 .
  • Page 15 High range Min. load Sensor Sensor Range Limit Range Limit error error 3101, 3102, 0/1...5 V 0/0.875...5.125 V 0/5.5 V 0/2...10 V 0/1.75...10.25 V 0/11 V 10 kΩ 3111, 3112 of span = of the selected range Observed authority requirements: EMC.
  • Page 16: Connections

    24 VDC Power HART rail 3101 3102 3111 3111-N 3112 3112-N 3113 3113-N 3331 3333 3337 3405 3101, 3102 and 3333: No galvanic isolation 3331 and 3337: 2 port isolation (reinforced) 3111, 3112 and 3113: 3 port isolation (reinforced) 3000V103-UK...
  • Page 17: Front Led Indications

    Front led indications For 3101, 3102, 3111, 3112 and 3113 The device is equipped with a green power LED in the front to indicate the operation status, see the table below. Condition Output Action required Connect supply / No supply / device error...
  • Page 18: Dip-Switch Configuration

    3101 and 3111 3102 and 3112 3113 and 3337 TC J & K Pt100 Pt100 & TC J/K + HART *3101 - only int CJC 3331 3333 Pt100 & TC J/K Pt100 (Power must be cycled after DIP-switch positions are changed).
  • Page 19: Temperature Range Programming

    Temperature range programming Please note: • 3101 and 3111 - only TC input available Valid TC J range: -100...+1200°C = correct DIP-switch setting Valid TC K range: -180...+1372°C = correct DIP-switch setting • 3102, 3112 and 3333 - only Pt100 input available Valid Pt100 range: -200...+850°C = correct DIP-switch setting...
  • Page 20: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1803 Models 31xx-N added Specifications for max. required power and power dissipation added 3000V103-UK...
  • Page 21 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
  • Page 22 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
