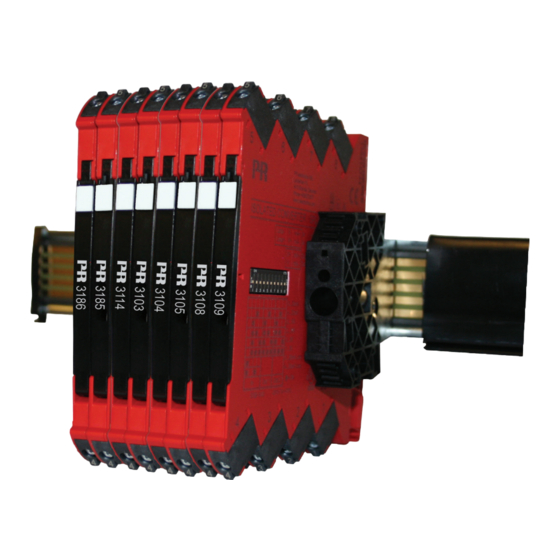

3100 series. 6 mm series of isolators and converters
Hide thumbs Also See for 3103:

Advertisement

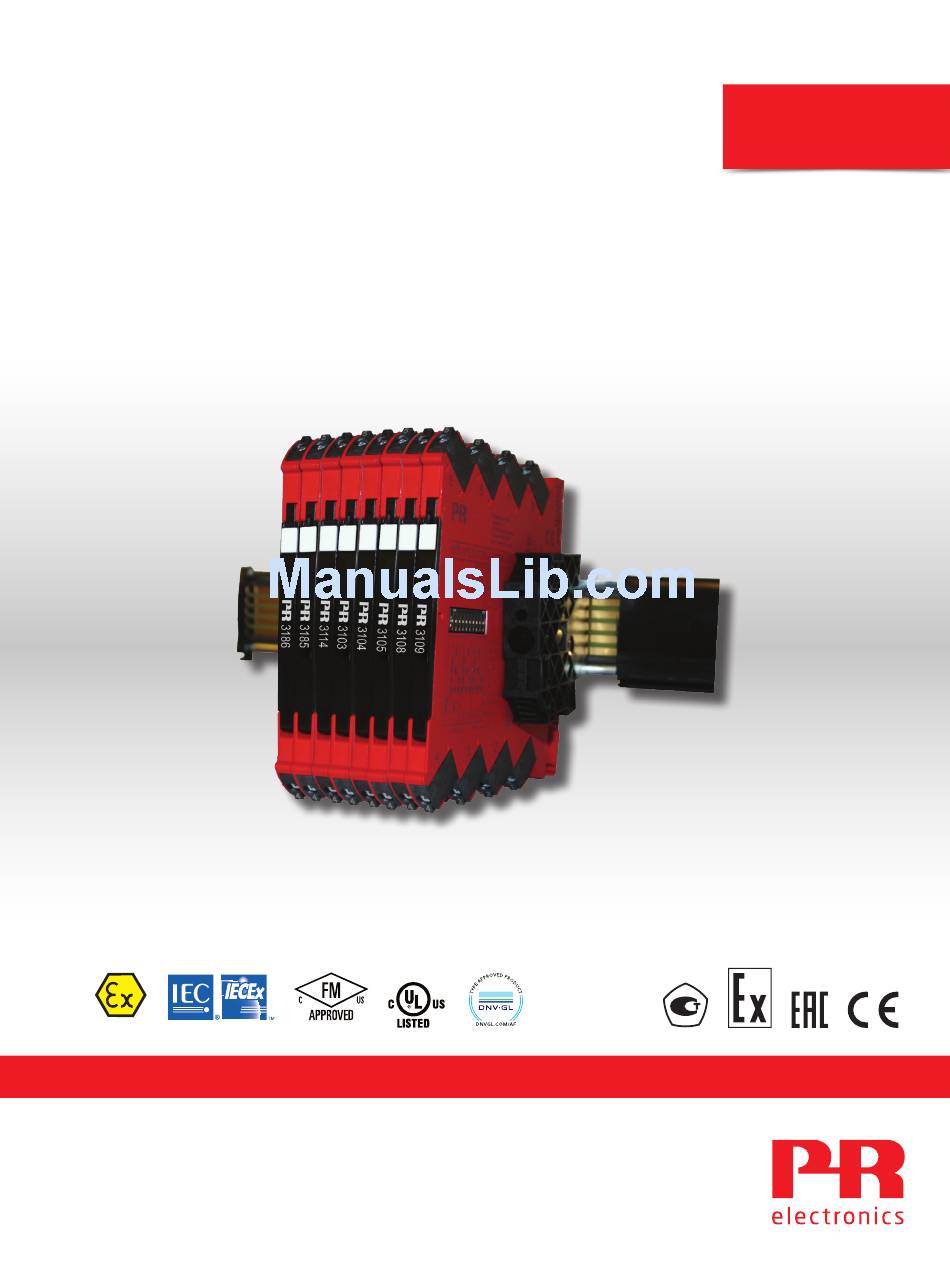

Product manual
3100
6 mm series of isolators
and converters
ZONE 2
Zone 2
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
Models no. 3103 / 310 4 / 3105 / 310 8 / 310 9
No. 310 0V10 8 - UK
ZONE 2 / DIV 2
|
CO M M U N I C AT I O N I N T E R FA C E S
CCOE
|
M U LT I F U N C T I O N A L
|
PERFORMANCE
MADE
SMARTER
I S O L AT I O N
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PR electronics 3103

  • Page 1 M U LT I F U N C T I O N A L I S O L AT I O N D I S P L AY Models no. 3103 / 310 4 / 3105 / 310 8 / 310 9 No. 310 0V10 8 - UK...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
  • Page 3: Table Of Contents

    6 mm series of isolators and converters 3103 / 3104 / 3105 / 3108 / 3109 Table of contents Warning ....................
  • Page 4: Warning

    To avoid explosion and serious injury: Modules having mechanical failures must be returned to PR electronics for repair or replacement. Repair of the device must be done by PR electronics A/S only. In applications where hazardous voltage is connected to in-/outputs of the device, sufficient spacing or isolation from wires, terminals and enclosure - to surroundings (incl.
  • Page 5: Ul Installation

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location.
  • Page 6 When the temperature under rated conditions exceeds 70°C at the cable or conduit entry point, or 80°C at the branching point of the conductors, the temperature specification of the selected cable shall be in compliance with the actual measured temperature. Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 40%.
  • Page 7: Flexible Supply

    Flexible supply The technical specifications specifies the maximum required power at nominal operating values, e.g. 24 V supply voltage, 60°C ambient temperature, 600 Ω load, and 20 mA output current. DIN rail solution - device daisy chain: Power rail solution #2: The units can be supplied with 24 VDC ±30% The 3405 power connector unit allows easy via direct wiring and a loop between the...
  • Page 8: Mounting And Demounting Of System 3000

    Mounting and demounting of system 3000 Picture 1: Mounting on DIN rail / power rail. Click the device onto the rail. Picture 2: Demounting from DIN rail / power rail. First, remember to demount the connectors with hazardous voltages. Detach the device from the DIN rail by lifting the bottom lock. Picture 3: Wire size AWG 26-12 / 0.13 x 2.5 mm stranded wire.
  • Page 9: Installation On Din Rail / Power Rail

    Installation on DIN rail / power rail Module stop The devices in the 3000 series can be installed on a DIN rail or on a power rail. For marine applications the devices must be supported by a module stop (PR part number 9404). Power supply units can be mounted on the power rail according to customer requirements.
  • Page 10: Side Label

    Side label Terminal numbers Type no. connections Approvals 3100V108-UK...
  • Page 11: Applications

    6 mm series of isolators and converters 3103 / 3104 / 3105 / 3108 / 3109 The product family 3103, 3104, 3105, 3108 & 3109 are slimline isolaters for 24 VDC fixed supply and can be used for different purposes.
  • Page 12: Product Overview

    Product overview PR type no. 3103 3104 3105 PR product name Isolated repeater Isolated converter Isolated converter Description Fixed loop isolator / repeater. Loop isolator / converter for Loop isolator / converter for standard DC signals. standard DC signals. DIP-switch setup.
  • Page 13: Order

    Order Type Version 3103 With power rail connector Supplied via terminals : -N 3104 With power rail connector Supplied via terminals : -N 3105 With power rail connector Supplied via terminals : -N 3108 With power rail connector Supplied via terminals...
  • Page 14 Programmable signal ranges ......0...20 / 4...20 mA Load, 3103, 3104 & 3105 ......≤ 600 Ω...
  • Page 15 Observed authority requirements: EMC..........2014/30/EU LVD .
  • Page 16: Connections

    Connections Input Output ch. 1 Output Supply ch. 2 81 82 83 84 85 Input signals 3103 3104 3105 3108 3109 Current Voltage Input signals 3103 3104 3105 3108 3109 Current 1 Voltage 1 Current 2 Voltage 2 Supply 3103...
  • Page 17: Led Indication

    LED indication The device is equipped with a green power LED in the front to indicate the operation status, see the table below. Output and Condition Action required loop supply Connect supply / No supply / device error De-energized replace device 1 Flash Power-up or restart De-energized...
  • Page 18: Dip-Switch Programming

    DIP-switch programming The devices 3104, 3105 and 3109 can be configured via DIP-switches. The DIP-switches are located on the side of the device and can be adjusted with a small screwdriver or other implement. Adjustment of DIP-switches. Default factory settings are: Input = 0…20 mA Output = 0…20 mA All DIP-switches in the OFF position...
  • Page 19 3105 Input setup Output setup 0…20 mA 0…20 mA 4…20 mA 4…20 mA 0…10 V 0…10 V 2…10 V 2…10 V 0…5 V 0…5 V 1…5 V 1…5 V 3109 Input setup Output setup Channel 1 Channel 2 0…20 mA 0…20 mA 4…20 mA 4…20 mA...
  • Page 20: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1745 Models 31xx-N added Specifications for max. required power and power dissipation added CCOE approval added We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach.
  • Page 21 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
