Summary of Contents for Profile Design WING20C+

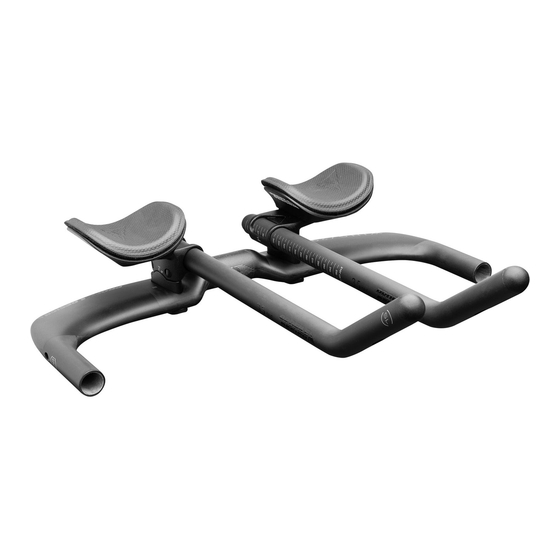

- Page 1 Wing20C+ Aerobar WING20C+ AEROBAR REVISION 01-12-23-2022...
-
Page 2: Tools And Materials Required
Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with Profile Design's warranty policy. If you are not familiar with installation of Aerobars or their accessories, please seek the assistance of your local Profile design dealer by logging on to www.profile-design.com and using "dealer search"... - Page 3 • Two (2) hook and loop stickers (preinstalled) • Four (4) M6x12 countersunk bolts Optional accessories compatible with this Aerobar: • Profile Design A3 or A2 Riser kits • Profile Design A2 Race brackets • Profile Design Armrests including the a.
- Page 4 If anything is missing from the Aerobar kit please contact your dealer. Please note that threaded areas have been pre-treated by Profile Design during production with a special blue thread locking compound. This special compound is easy to detect on the threads of all bolts provided. If you cannot detect this thread locking compound or you are re-installing the bolt, re-apply a suitable thread locking compound as available from Loctite®...
-
Page 5: Component List
Wing20C+ Aerobar COMPONENT LIST QTY. Ref.# Part.# Part Description Req. 358440 Basebar - Wing20c+ 42cm Carbon UD BK w/BK Logo 716670 Wing20c+ Rubber Cover (Black) 852279 Extension - 35SLC 400mm Carbon UD Matte Black W/Black Logo Left(A) 852280 Extension - 35SLC 400mm Carbon UD Matte Black W/Black Logo Right(B) 716667 End Plug - 35C+ Black w/Cable Hole (Rear) 685221... -
Page 6: Part Drawings
Wing20C+ Aerobar PART DRAWINGS 18.5 49.5 52.1 Units: mm Units: mm... - Page 7 Wing20C+ Aerobar PART DRAWINGS 35° 18.5 108.4 Units: mm...
- Page 8 Wing20C+ Aerobar PRODUCT SPECIFIC SETUP LIMITATIONS Units: mm...
-
Page 9: Torque Settings
Wing20C+ Aerobar TORQUE SETTINGS Ref.# Location Bolt Size Torque Armrest Bolts M6x12mm 4.7Nm (42 inlbf) Extension Clamp M5x35mm 5Nm (44 inlbf) Bracket Mount M6x40mm 6Nm (53 inlbf) -
Page 10: Installation Instructions
Wing20C+ Aerobar INSTALLATION INSTRUCTIONS 1. Determine whether you wish to install the bar in the up or down orientation. 8. Tighten the bolts until the aerobar bracket is firmly in place at the desired angle (0-15deg) and repeat with the other side. 2. - Page 11 Wing20C+ Aerobar HOW TO CUT THE EXTENSIONS 18. Attach the cushion by placing carefully on hook and loop backing of the armrest and hold firmly for 30 seconds. Repeat for the other armrest. 1. Carefully determine the required extension length by performing a bike fit or measuring the existing extensions.
- Page 12 Wing20C+ Aerobar CABLE ROUTE MAP Shifting cables Brake Cables 1(b) 1(a) 2(a) 2(b) 1(b) 1(a) 2(a) 2(b)
- Page 13 Wing20C+ Aerobar CABLE ROUTE MAP Shifting cables Brake Cables 1(a).2(a) 1(b).2(b) 3.4.A.B 3.4.A.B...
- Page 14 Wing20C+ Aerobar CABLE ROUTE MAP Shifting (Electric Cables) 1(b) 1(a) 2(a) 2(b) 1(b) 1(a) 2(a) 2(b)
- Page 15 Wing20C+ Aerobar CABLE ROUTE MAP Shifting (Electric Cables) Brake Cables...
- Page 16 Wing20C+ Aerobar CABLE ROUTE MAP Shifting (Electric Cables) Brake Cables 1(a).2(a) 1(b).2(b) 1.2.3.4.A.B 3.4.A.B...
-
Page 17: Warranty Policy
• Profile Design Worldwide Two Year Limited Warranty. • Profile Design, LLC (distributor) warrants to the original retail purchaser ("you") that the Profile Design product for which you received this warranty is free from defects in material and workmanship for (2) two years from the date of original retail purchase. For more details on this warranty, its exclusions and/or how to make a claim under the warranty please call +1 310.747.0085 extension 161 or visit... - Page 18 Wing20C+ Aerobar 2677 El Presidio Street Long Beach, CA 90810 Ph: 310-884-7756 www.profile-design.com © Profile Design LLC...
