Aeotec
Dual Nano Switch with Power
Metering
SKU: AEOEZW132
Quickstart
This is a secure On/Off Power Switch for Europe. To run this device please connect it to your mains power supply. Turn the primary controller of Z-Wave
network into inclusion mode, short press the product Action button that you can find on the product s housing.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer,
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and
every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is
not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other certified Z-
Wave device regardless of brand and origin as long as both are suited for the same frequency range.
If a device supports secure communication it will communicate with other devices secure as long as this
device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level
of security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.
Product Description

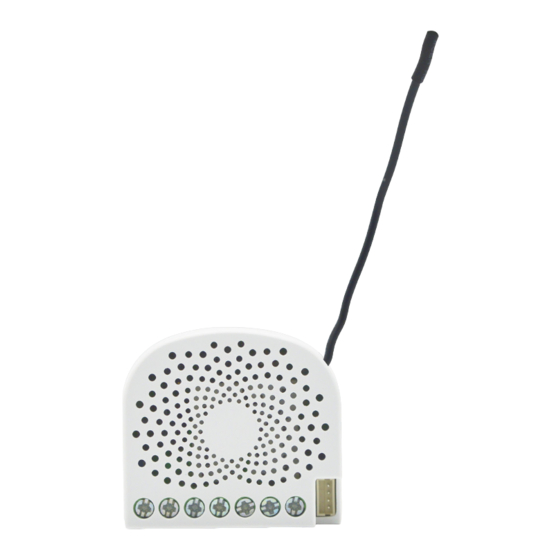

Aeotec Dual Nano Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate
wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to
the units operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used
for connecting to the touch panel, so you can also use the touch panel to control the Dual Nano Switch. The Dual Nano Switch is also a security Z-Wave device
and supports Over The Air (OTA) feature for the products firmware upgrade.
Prepare for Installation / Reset
Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it must be in factory default state. Please make sure to reset the device into factory default. You can do
this by performing an Exclusion operation as described below in the manual. Every Z-Wave controller is able to perform this operation however it is recommended
to use the primary controller of the previous network to make sure the very device is excluded properly from this network.
Reset to factory default
This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable.
Press and hold the Action button that you can find on the product s housing for 20 seconds and then release. This procedure should only be used when the
primary controller is missing or inoperable.
Safety Warning for Mains Powered Devices
ATTENTION: only authorized technicians under consideration of the country-specific installation guidelines/norms may do works with mains power. Prior to the
assembly of the product, the voltage network has to be switched off and ensured against re-switching.
manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132
1/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEOEZW132 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aeotec AEOEZW132

  • Page 1 Product Description Aeotec Dual Nano Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the units operating status.
  • Page 2: Installation

    7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Installation Notes for the wire connection ports: N ? Power input for neutral L ? Power input for live IN ? Input for load power supply OUT1 ? Output for load 1 OUT2 ? Output for load 2...
  • Page 3: Association - One Device Controls An Other Device

    7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 2. If inclusion still fails, check if both devices use the same frequency. 3. Remove all dead devices from associations. Otherwise you will see severe delays. 4. Never use sleeping battery devices without a central controller. 5. Dont poll FLIRS devices.
  • Page 4 7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Parameter 80: To set which notification would be sent to the associated devices (Group 1) To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmeru2019s load is changed. Size: 1 Byte, Default Value: 0...
  • Page 5 7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Parameter 87: Set appointment 2 Set the OFF time of output load. Size: 4 Byte, Default Value: 8327680 Setting Description 0 - 60 The minute value of ON time 256 - 316 The hour value of ON time...
  • Page 6 7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Setting Description Send Meter Report of energy (kWh) Send Meter Report of wattage (W) Send Meter Report of voltage (V) Send Meter Report of current (A) Send Multi Channel Meter Report of wattage (W) on Channel 1 Send Multi Channel Meter Report of wattage (W) on Channel 2...
  • Page 7 7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Setting Description Send Meter Report of voltage (V) Send Meter Report of current (A) Send Meter Report of wattage (W) Send Meter Report of energy (kWh) Send Multi Channel Meter Report of wattage (W) on Channel 1 Send Multi Channel Meter Report of wattage (W) on Channel 2...
  • Page 8: Technical Data

    7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Setting Description Enter automatic identification mode 2-state switch mode 3 way switch mode Momentary push button mode Parameter 122: Set the control destination for external switch Set the control destination for external switch Size: 1 Byte, Default Value: 3...
  • Page 9: Supported Command Classes

    7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Dimensions 0.0445000x0.0410000x0.0200000 mm Weight 35 gr Hardware Platform ZM5101 1220000015418 IP Class IP 20 Voltage 230 V Load 10 A Device Type On/Off Power Switch Network Operation Always On Slave Z-Wave Version 6.51.09 Certification ID ZC10-17035485 Z-Wave Product Id 0x0086.0x0003.0x0084...
  • Page 10: Controlled Command Classes

    7-11-2020 manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW132 Controlled Command Classes Basic Hail Explanation of Z-Wave specific terms Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways,Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. Slaves can be sensors, actuators and even remote controls.
