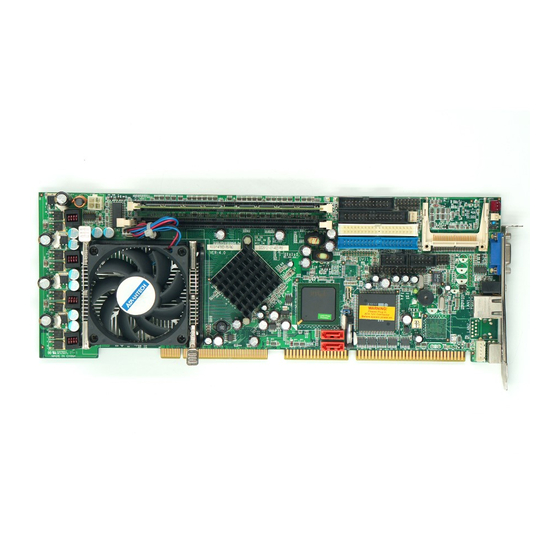

ROCKY-4786EV/EVG User Manual
IEI Technology Corp.
MODEL:
ROCKY-4786EV/EVG
PICMG Socket 478 CPU Card, Intel® Pentium® 4 Processor
Support, Gigabit Ethernet, USB 2.0, VGA, SATA
Rev. 4.10 – 24 March, 2010
RoHS Compliant
User Manual
ROCKY-4786EV/EVG
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROCKY-4786EV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology ROCKY-4786EV

Summary of Contents for IEI Technology ROCKY-4786EV

  • Page 1 ROCKY-4786EV/EVG User Manual ROCKY-4786EV/EVG IEI Technology Corp. MODEL: ROCKY-4786EV/EVG PICMG Socket 478 CPU Card, Intel® Pentium® 4 Processor Support, Gigabit Ethernet, USB 2.0, VGA, SATA RoHS Compliant User Manual Page i Rev. 4.10 – 24 March, 2010...
  • Page 2 ROCKY-4786EV/EVG User Manual Revision Date Version Changes 24 March, 2010 4.10 Update Northbridge to Intel® 865G May 2006 1.00 Initial release Page ii...
  • Page 3 ROCKY-4786EV/EVG User Manual Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    1 INTRODUCTION......................1 1.1 ROCKY-4786EV/EVG CPU B ............2 OARD VERVIEW 1.1.1 ROCKY-4786EV/EVG CPU Board Applications..........2 1.1.2 ROCKY-4786EV/EVG CPU Board Benefits ............2 1.1.3 ROCKY-4786EV/EVG CPU Board Features ............. 2 1.2 C ......................3 ONNECTORS 1.3 D ....................... 3 IMENSIONS 1.4 D...
  • Page 5 ..................46 STATIC RECAUTIONS 4.2 I ................46 NSTALLATION ONSIDERATIONS 4.3 ROCKY-4786EV/EVG CPU C ..........48 NSTALLATION 4.3.1 CPU Installation ....................49 4.3.2 Cooling Kit CF-519 Installation..............50 4.3.3 DIMM Module Installation ................51 4.3.3.1 Purchasing the Memory Module............... 51 4.3.3.2 DIMM Module Installation...............
  • Page 6 ROCKY-4786EV/EVG User Manual 5.1.2 Using Setup ...................... 63 5.1.3 Getting Help..................... 64 5.1.4 Unable to Reboot After Configuration Changes..........64 5.1.5 Main BIOS Menu ..................... 65 5.2 S CMOS F .................. 67 TANDARD EATURES 5.2.1 IDE Channel Master ..................70 5.3 A...
  • Page 7 ROCKY-4786EV/EVG User Manual F HAZARDOUS MATERIALS DISCLOSURE............132 F.1 H IPB P AZARDOUS ATERIALS ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........133 OMPLIANT NDER ITHOUT ERCURY Page vii...
  • Page 8 Figure 3-11: SATA Connector Locations ...................36 Figure 3-12: CN5 Connector Location ..................38 Figure 3-13: ATX Connector Location ..................40 Figure 3-14: ROCKY-4786EV/EVG CPU Board Rear Panel............41 Figure 3-15: PS/2 Pinout locations .....................42 Figure 3-16: RJ-45 Ethernet Connector..................43 Figure 3-17: VGA Connector .......................44 Figure 4-1: Locking the CPU into the CPU Socket..............50...
  • Page 9 ROCKY-4786EV/EVG User Manual List of Tables Table-1-1: Technical Specifications....................7 Table 3-1: Peripheral Interface Connectors ................16 Table 3-2: Peripheral Interface Connectors ................16 Table 3-3: FDD Connector Pinouts .....................17 Table 3-4: IDE Connector Pinouts....................19 Table-3-5: Internal COM Port Connector Pinouts..............21 Table-3-6: LPT Connector Pinouts....................23 Table-3-7: USB Port Connector Pinouts..................25...
  • Page 10 ROCKY-4786EV/EVG User Manual BIOS Menus Menu 1: Award BIOS CMOS Setup Utility ..................65 Menu 2: Standard CMOS Features....................67 Menu 3: IDE Channel Master .......................70 Menu 4: Advanced BIOS Features ....................73 Menu 5: CPU Feature........................80 Menu 6: Hard Disk Boot Priority ....................81 Menu 7: Advanced Chipset Features..................82...

  • Page 11: Introduction

    ROCKY-4786EV/EVG User Manual Chapter Introduction Page 1...

  • Page 12: Rocky-4786Ev/Evg Cpu Board Overview

    ROCKY-4786EV/EVG User Manual 1.1 ROCKY-4786EV/EVG CPU Board Overview The PICMG 1.0 form factor ROCKY-4786EV/EVG Pentium 4 CPU platform is fully equipped with a high performance processor and advanced multi-mode I/Os. The ROCKY-4786EV/EVG is designed for system manufacturers, integrators, and VARs that want performance, reliability, and quality at a reasonable price.

  • Page 13: Connectors

    ROCKY-4786EV/EVG User Manual 1.2 Connectors The connectors on the ROCKY-4786EV/EVG are shown in the figure below. Figure 1-1 Connectors 1.3 Dimensions The dimensions of the board are listed below: Length: 338 mm Width: 122 mm Page 3...

  • Page 14: Figure 1-2: Rocky-4786Ev/Evg Dimensions (Mm)

    ROCKY-4786EV/EVG User Manual Figure 1-2: ROCKY-4786EV/EVG Dimensions (mm) Page 4...

  • Page 15: Data Flow

    ROCKY-4786EV/EVG User Manual 1.4 Data Flow Figure-1-3 shows the data flow between the two onboard chipsets and other components installed on the CPU board and described in the following sections of this chapter. Figure-1-3: Data Flow Block Diagram Page 5...

  • Page 16: Technical Specifications

    ROCKY-4786EV/EVG User Manual 1.4.1 Technical Specifications: ROCKY-4786EV/EVG CPU board technical specifications are listed in the table below. SPECIFICATION ® ® CPUs Supported Intel Pentium ® ® Intel Celeron ® Chipsets Northbridge: Intel 865G ® Southbridge: Intel ICH5 Super I/O Winbond W83627F/HF Graphics Support Intel®...

  • Page 17: Table-1-1: Technical Specifications

    ROCKY-4786EV/EVG User Manual SPECIFICATION Power Management Supports Advanced Configuration and Power Interface (ACPI) Specifications Revision 2.0 Infrared Support One Infrared Data Association (IrDA) interface Ethernet RJ-45 10/100BaseT RJ-45Gigabit Ethernet (GbE) with ASF 2.0 remote control support (ROCKY-4768EVG only) BIOS Award BIOS Audio Interfaces One Audio Codec ’97 (AC’97) version 2.2 connector...

  • Page 18: Unpacking

    ROCKY-4786EV/EVG User Manual Chapter Unpacking Page 8...

  • Page 19: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the ROCKY-4786EV/EVG is unpacked, please do the following: Follow the antistatic guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 20: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the ROCKY-4786EV/EVG was purchased from or contact an IEI sales representative directly by sending an email to ales@iei.com.tw.

  • Page 21: Optional Items

    (P/N: 19800-000051-RS) Mini jumper pack (2.0mm) (P/N: 33100-000033-RS) Utility CD Quick Installation Guide 2.3.1 Optional Items The following components are options for the ROCKY-4786EV/EVG: Item and Part Number Image CPU cooler (up to 115 W) (P/N: CF-478A-RS) CPU cooler (P/N: CF-478B-RS)
  • Page 22 ROCKY-4786EV/EVG User Manual CPU cooler (P/N: CF-514-RS) CPU cooler (P/N: CF-519-RS) FDD cable (P/N: 32200-000017-RS) Parallel port cable (P/N:19800-000049-RS) Page 12...

  • Page 23: Connectors

    ROCKY-4786EV/EVG User Manual Chapter Connectors Page 13...

  • Page 24: Peripheral Interface Connectors

    The locations of the peripheral interface connectors are shown in Section 3.1.1. A complete list of all the peripheral interface connectors can be seen in Section 3.1.2. 3.1.1 ROCKY-4786EV/EVG CPU Board Layout Figure 3-1 shows the onboard peripheral connectors, backplane peripheral connectors and onboard jumpers.

  • Page 25: Peripheral Interface Connectors

    ROCKY-4786EV/EVG User Manual 3.1.2 Peripheral Interface Connectors Table 3-1 shows a list of the peripheral interface connectors on the ROCKY-4786EV/EVG CPU board. Detailed descriptions of these connectors can be found in Section 3.2. Label Connector Type IDE1 Primary & Secondary IDE connectors...

  • Page 26: Rear Panel Connectors

    Backplane to Main board ATX power 3-pin header control Connector Table 3-1: Peripheral Interface Connectors 3.1.3 Rear Panel Connectors Table 3-2 lists the rear panel connectors on the ROCKY-4786EV/EVG CPU card. Detailed descriptions of these connectors can be found in Section 3.3. Label Connector Type...

  • Page 27: Table 3-3: Fdd Connector Pinouts

    CN Type: 2x17 pin header CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 The ROCKY-4786EV/EVG is shipped with a 34-pin daisy-chain drive connector cable. This cable can be connected to the FDD connector. DESCRIPTION DESCRIPTION REDUCE WRITE INDEX#...

  • Page 28: Figure 3-2: Fdd Connector Location

    ROCKY-4786EV/EVG User Manual Figure 3-2: FDD Connector Location Page 18...

  • Page 29: Ide Connectors

    ROCKY-4786EV/EVG User Manual 3.2.2 IDE Connectors CN Label: IDE1 (primary) and IDE2 (secondary) CN Type: 2x20 pin header CN Location: See Figure 3-3 CN Pinouts: See Table 3-4: IDE Connector Pinouts Two IDE connectors provide connectivity for four IDE devices.

  • Page 30: Figure 3-3: Ide Connector Locations

    ROCKY-4786EV/EVG User Manual Figure 3-3: IDE Connector Locations Page 20...

  • Page 31: Com Ports

    COM1, COM2 CN Type: 2x5 pin headers CN Location: CN Pinouts: See Table-3-5 The ROCKY-4786EV/EVG offers two high speed NS16C550 compatible UART’s with 16-byte Read/Receive FIFO serial ports. DESCRIPTION DESCRIPTION DATA CARRIER DETECT (DCD) DATA SET READY (DSR) RECEIVE DATA (RXD)

  • Page 32: Parallel Port

    ROCKY-4786EV/EVG User Manual Figure 3-4 COM Port Locations 3.2.4 Parallel Port Page 22...

  • Page 33: Table-3-6: Lpt Connector Pinouts

    ROCKY-4786EV/EVG User Manual CN Label: LPT1 CN Type: 2x13 pin header CN Location: See Figure-3-5 CN Pinouts: See Table-3-6 The parallel port is connected to a printer or other parallel device with a 26-pin flat-cable connector. DESCRIPTION DESCRIPTION STROBE# AUTO FORM FEED #...

  • Page 34: Figure-3-5: Lpt Connector Location

    ROCKY-4786EV/EVG User Manual Figure-3-5: LPT Connector Location Page 24...

  • Page 35: Internal Usb Connectors

    ROCKY-4786EV/EVG User Manual 3.2.5 Internal USB Connectors CN Label: USB1, USB2, USB3, USB4 CN Type: 2x4 pin header CN Location: See Figure-3-6 CN Pinouts: See Table-3-7 Four 2x4 pin connectors provide connectivity to eight USB 2.0 ports. The USB ports are used for I/O bus expansion.

  • Page 36: Figure-3-6: Usb Port Connector Location

    ROCKY-4786EV/EVG User Manual Figure-3-6: USB Port Connector Location Page 26...

  • Page 37: Cooling Fan Connector

    ROCKY-4786EV/EVG User Manual 3.2.6 Cooling Fan Connector CN Label: FAN1, FAN2 CN Type: 1x3 pin header CN Location: See Figure 3-7 CN Pinouts: See Table 3-8 The FAN1 and FAN2 cooling fan connectors provide a 12V, 350mA ~ 740mA or 1A ~ 2.2A current to the cooling fans.

  • Page 38: Backplane To Mainboard Atx Connector

    ROCKY-4786EV/EVG User Manual Figure 3-7 Cooling Fan Connector Locations 3.2.7 Backplane to Mainboard ATX Connector CN Label: ATXCTL1 CN Type: 1x3 pin header CN Location: See Figure 3-8 Page 28...

  • Page 39: Table 3-9: Cn7 Connector Pin Outs

    ROCKY-4786EV/EVG User Manual CN Pinouts: See Table 3-9 Connects a power source from a backplane with an ATX Connector. PIN NO. DESCRIPTION 5VSB ATX-ON Table 3-9: CN7 Connector Pin Outs Page 29...

  • Page 40: Figure 3-8: Atxctl Connector Locations

    ROCKY-4786EV/EVG User Manual Figure 3-8: ATXCTL Connector Locations Page 30...

  • Page 41: System Front Panel Connector

    ROCKY-4786EV/EVG User Manual 3.2.8 System Front Panel Connector CN Label: CN Type: 2x7 pin header CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 The system panel connector connects to: the system chassis front panel LEDs the chassis speaker the power switch the reset button.

  • Page 42: Irda Connector

    ROCKY-4786EV/EVG User Manual Figure 3-9: System Panel Connector Location 3.2.9 IrDA Connector CN Label: CN Type: 1x6 pin header CN Location: See Figure 3-10 CN Pinouts: See Table 3-11 Page 32...

  • Page 43: Table 3-11: Irda Connector Pinouts

    ROCKY-4786EV/EVG User Manual The integrated IrDA connector supports both the SIR and ASKIR infrared protocols. DESCRIPTION IR-RX IR-TX CIRRX Table 3-11: IrDA Connector Pinouts Page 33...

  • Page 44: Sata Drive Connectors

    ROCKY-4786EV/EVG User Manual Figure 3-10: IrDA Connector Location 3.2.10 SATA Drive Connectors CN Label: SATA1, SATA2 CN Type: 1x7 pin port CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 The SATA drive ports provide connectivity to SATA drives with a maximum data transfer rate of 150MB/s.

  • Page 45: Table 3-12: Sata Connector Pinouts

    ROCKY-4786EV/EVG User Manual DESCRIPTION DESCRIPTION Table 3-12: SATA Connector Pinouts CAUTION! Your SATA hard drives may come with both a 4P power connector and a SATA power interface. Attach either the 4P connector or the included SATA power DO NOT cable to your SATA hard drives.

  • Page 46: Figure 3-11: Sata Connector Locations

    ROCKY-4786EV/EVG User Manual Figure 3-11: SATA Connector Locations Page 36...

  • Page 47: Keyboard Connector

    ROCKY-4786EV/EVG User Manual NOTE: 1. SATA is supported by: • Windows 2000 SP4 • Windows XP SP1 • Windows 2003, or later versions. 2. Older OSes, such as Windows 98SE or ME, do not support the SATA interface. 3.2.11 Keyboard Connector...

  • Page 48: Figure 3-12: Cn5 Connector Location

    ROCKY-4786EV/EVG User Manual Figure 3-12: CN5 Connector Location Page 38...

  • Page 49: Atx-12V Power Source Connector

    ROCKY-4786EV/EVG User Manual 3.2.12 ATX-12V Power Source Connector CN Label: CN Type: 2x2 pin header CN Location: See Figure 3-13 CN Pinouts: See Table 3-14 This connector supports the ATX-12V power supply. PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V...

  • Page 50: External (Rear Panel) Connectors

    Figure 3-13: ATX Connector Location 3.3 External (Rear Panel) Connectors Figure 3-14 shows the ROCKY-4786EV/EVG CPU board rear panel. The peripheral connectors on the back panel can be connected to devices externally when the CPU card is installed in a chassis. The peripheral connectors on the rear panel are:...

  • Page 51: Ps/2 Connector

    ROCKY-4786EV/EVG User Manual Figure 3-14: ROCKY-4786EV/EVG CPU Board Rear Panel 3.3.1 PS/2 Connector CN Label: KB_MS1 CN Type: PS/2 CN Location: See Figure 3-14 (labeled number 1) CN Pinouts: See Table 3-15 Figure 3-15 shows PS/2 Pinout locations Page 41...

  • Page 52: Ethernet Connectors

    ROCKY-4786EV/EVG User Manual The PS/2 mouse and keyboard connectors are connected to a mouse and keyboard DESCRIPTION DESCRIPTION KB Data Clock Table 3-15: PS/2 Pinouts Figure 3-15: PS/2 Pinout locations 3.3.2 Ethernet Connectors CN Label: LAN1, LAN2 CN Type: RJ-45...

  • Page 53: Line Out Connector

    ROCKY-4786EV/EVG User Manual DESCRIPTION DESCRIPTION TXD+ TXD- GRN+ RXD+ GRN- CT_TXD YEL- CT_RXD YEL+ RXD- S GND S GND Table 3-16: RJ-45 Ethernet Connector Pinouts Figure 3-16: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked.

  • Page 54: Vga Connector

    ROCKY-4786EV/EVG User Manual 3.3.4 VGA Connector CN Label: VGA1 CN Type: See Figure 3-17 CN Location: See Figure 3-14 (labeled number 4) The standard 15-pin VGA connector connects to a CRT or LCD display monitor. DESCRIPTION DESCRIPTION No Connect Green...

  • Page 55: Installation

    ROCKY-4786EV/EVG User Manual Chapter Installation Page 45...

  • Page 56: Anti-Static Precautions

    ROCKY-4786EV/EVG and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the ROCKY-4786EV/EVG. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the ROCKY-4786EV/EVG or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 57 This helps to prevent potential ESD damage. Turn all power to the ROCKY-4786EV/EVG off: When working with the ROCKY-4786EV/EVG, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

  • Page 58: Rocky-4786Ev/Evg Cpu Card Installation

    4.3 ROCKY-4786EV/EVG CPU Card Installation WARNING! 1. Never run the CPU board without an appropriate heat sink and cooler that can be ordered from IEI Technology or purchased separately. 2. Be sure to use the CPU 12V power connector (CN10007) for the CPU power.

  • Page 59: Cpu Installation

    ROCKY-4786EV/EVG User Manual 4.3.1 CPU Installation WARNING! CPUs are expensive and sensitive components. When you install the CPU, please be careful not to damage it in anyway. Make sure you install it properly and ensure that a heat sink and CPU cooling fan is properly installed before you run the CPU Card or else both the CPU and the board will be damaged.

  • Page 60: Cooling Kit Cf-519 Installation

    ROCKY-4786EV/EVG User Manual Figure 4-1: Locking the CPU into the CPU Socket 4.3.2 Cooling Kit CF-519 Installation IEI provides a cooling kit designed for socket 478 CPUs. The cooling kit is comprises a CPU heat sink and a cooling fan.

  • Page 61: Dimm Module Installation

    ROCKY-4786EV/EVG User Manual Figure 4-2: Cooling Kit Support Bracket Step 2: Open the lever at the top of the heat sink. Lift the lever at the top of the cooling kit to loosen the cooling kit clamps. Step 3: Secure the cooling kit. Gently place the heat sink and cooling kit onto the CPU.

  • Page 62: Dimm Module Installation

    ROCKY-4786EV/EVG User Manual 4.3.3.2 DIMM Module Installation The ROCKY-4786EV/EVG CPU Board has two DDR SDRAM DIMM sockets. To install the DIMM modules, follow the instructions below. Step 4: Pull the two white handles on either side of the DIMM socket down.

  • Page 63: Jumper Settings

    OPEN a jumper means removing the plastic clip from a jumper. The ROCKY-4786EV/EVG includes one jumper shown in table and figure below. Description Label Type CF Setup...

  • Page 64: Figure 4-3: Jumper Locations

    ROCKY-4786EV/EVG User Manual Figure 4-3: Jumper Locations Page 54...

  • Page 65: Cf Card Setup

    ROCKY-4786EV/EVG User Manual 4.4.1 CF Card Setup Jumper Label: 2-pin header Jumper Type: Jumper Settings: See Table 4-2 Jumper Location: See Figure 4-3 The CompactFlash® slot is connected through an IDE connection. This jumper sets the CompactFlash® card as the master or slave IDE device.

  • Page 66: Internal Peripheral Device Connections

    ROCKY-4786EV/EVG User Manual After you have done one of the above, save your changes and exit the CMOS Setup menu. CLEAR CMOS 1-2 closed Normal (default) 2-3 closed Clear CMOS Table 4-3: Reset CMOS Jumper Settings 4.5 Internal Peripheral Device Connections This section outlines the installation of peripheral devices to the onboard connectors.

  • Page 67: Floppy Drive Connector (Fdd1)

    This section describes connecting devices to the external connectors on the ROCKY-4786EV/EVG. 4.6.1 Audio Line-out Connector The audio jack on the external peripheral interface enables the ROCKY-4786EV/EVG to be connected to a stereo sound setup. To install the audio devices, follow the steps below. Step 1: Identify the audio plugs.

  • Page 68: Lan Connection

    The ROCKY-4786EV/EVG has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the ROCKY-4786EV/EVG, please follow the instructions below. Step 1: Locate the female DB-15 connector. The location of the female DB-15 connector is shown in Chapter 3.

  • Page 69: Software Installation

    Step 0: 4.7 Software Installation All the drivers for the ROCKY-4786EV/EVG are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 70: Figure 4-6: Introduction Screen

    ROCKY-4786EV/EVG User Manual NOTE: If the installation program doesn't start automatically: Click "Start->My Computer->CD Drive->autorun.exe" Step 2: The driver main menu appears (Figure 4-6). Figure 4-6: Introduction Screen Step 3: Click ROCKY-4786EV/EVG. Step 4: A new screen with a list of available drivers appears (Figure 4-7).

  • Page 71: Figure 4-7: Available Drivers

    ROCKY-4786EV/EVG User Manual Figure 4-7: Available Drivers Step 5: Install all of the necessary drivers in this menu. S t e p 0 : Page 61...

  • Page 72: Award Bios Setup

    ROCKY-4786EV/EVG User Manual Chapter Award BIOS Setup Page 62...

  • Page 73: Introduction

    ROCKY-4786EV/EVG User Manual 5.1 Introduction A licensed copy of Phoenix Award BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options you may change.

  • Page 74: Getting Help

    ROCKY-4786EV/EVG User Manual General help, only for Status Page Setup Menu and Option Page Setup Menu Item help Previous values for the page menu items Fail-safe defaults for the current page menu items Optimized defaults for the current page menu items...

  • Page 75: Main Bios Menu

    ROCKY-4786EV/EVG User Manual 5.1.5 Main BIOS Menu Once the BIOS opens, the main menu (BIOS Menu 1) appears. BIOS Menu 1: Award BIOS CMOS Setup Utility NOTE: The following sections will completely describe the menus listed below and the configuration options available to users.

  • Page 76: Load Fail-Safe Defaults

    ROCKY-4786EV/EVG User Manual PCIPnP Configurations: Changes the advanced PCI/PnP Settings PC Health Status: Monitors essential system parameters Frequency/Voltage Control: Configures the CPU Clock Ratio, Auto Detect DIMM/PCI CLk and Spread Spectrum settings The following user configurable options are also available in the BIOS Main Menu...

  • Page 77: Standard Cmos Features

    ROCKY-4786EV/EVG User Manual Exit Without Saving If you have finished making configuration changes but do not want to save them and you want to exit the BIOS menus, select this option. 5.2 Standard CMOS Features The Standard CMOS Features menu (BIOS Menu 2) changes basic BIOS configuration options.

  • Page 78: Drive A [1.44M, 3.5In]

    ROCKY-4786EV/EVG User Manual Primary IDE Slave Secondary IDE Master Secondary IDE Slave The IDE Configuration menu (BIOS Menu 3) allows you to set or change the configurations for the IDE devices installed in the system. If an IDE device is detected, and one of the above listed four BIOS configuration options are selected, the IDE configuration options shown in Section 5.2.1 appear.

  • Page 79: Ega

    ROCKY-4786EV/EVG User Manual EGA/VGA Selected when the adapter for the primary system EFAULT monitor is one of the following: SEGA SVGA CGA 40 The system will power up in 40 column mode The system will power up in 80 column mode CGA 80 A monochrome monitor is used.

  • Page 80: Ide Channel Master

    ROCKY-4786EV/EVG User Manual The Base Memory is NOT user configurable. The POST will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the CPU card or 640K for systems with 640K or more memory installed on the motherboard.

  • Page 81: Ide Channel 0/1 Master/Slave [Auto]

    ROCKY-4786EV/EVG User Manual Selecting IDE HDD Auto-Detection option and pressing the “E ” key will enable the NTER BIOS to automatically detect the HDD type. Do not set this option manually. IDE Channel 0/1 Master/Slave [Auto] The IDE Channel option allows you to activate or deactivate the following drive channels:...

  • Page 82: Advanced Bios Features

    ROCKY-4786EV/EVG User Manual Capacity The Capacity specification tells the user the storage capacity of the HDD installed in the system. Cylinder The Cylinder specification shows the number of cylinders (tracks) on the HDD installed in the system. Head The Head specification shows the number of logical heads on the HDD installed in the system.

  • Page 83: Virus Warning [Disabled]

    ROCKY-4786EV/EVG User Manual BIOS Menu 4: Advanced BIOS Features Once the Advanced BIOS Features menu is selected, two menu options and a host of configuration options are available. The two menu options are: CPU Feature Hard Disk Boot Priority To access these menus, use the arrow keys to select the menu option and press the “E...

  • Page 84: Cpu L1 & L2 Cache [Enabled]

    ROCKY-4786EV/EVG User Manual to access the boot sector or HDD partition table. NOTE: Many disk diagnostic programs can cause the above warning message to appear when the program attempts to access the boot sector table. If you run such a program, it is recommended that you first disable the virus protection function before hand.

  • Page 85: Boot Other Device [Enabled]

    ROCKY-4786EV/EVG User Manual Third Boot Device [D : LS120] EFAULT The Boot Device configuration options allow you to select the order of devices the computer will boot from. Using the default values, the system will first look for an HDD to boot from.

  • Page 86: Boot Up Floppy Seek [Enabled]

    ROCKY-4786EV/EVG User Manual Disabled Default physical/logical drive assignations. EFAULT Boot Up Floppy Seek [Enabled] During the POST, BIOS will determine if the floppy disk drive installed has 40 or 80 tracks. 360K FDDs have 40 tracks while 760K, 1.2M and 1.44M FDDs all have 80 tracks...

  • Page 87: Typematic Rate (Chars/Sec) [6]

    ROCKY-4786EV/EVG User Manual but it will then wait a moment, and, if the key is still down, it will begin to report that the key has been depressed repeatedly. Such a feature would be used to accelerate cursor movements with the arrow keys.

  • Page 88: Apic Mode [Enabled]

    ROCKY-4786EV/EVG User Manual The Security Option configuration option allows you to limit access to the system and Setup or just to the Setup. Setup The system will not boot and access to Setup will be EFAULT denied if the correct password is not entered at the prompt.

  • Page 89: Cpu Feature

    ROCKY-4786EV/EVG User Manual OS Select For DRAM > 64MB [Non-OS2] The OS Select For DRAM > 64MB option allows you to specify the operating system you are using. Only select this if you are using the OS/2 operating system If you are not using the OS/2 operating system then...

  • Page 90: Thermal Management [Thermal Monitor 1]

    ROCKY-4786EV/EVG User Manual BIOS Menu 5: CPU Feature Thermal Management [Thermal Monitor 1] The Thermal Management configuration option allows you to select the thermal monitor the CPU will use to monitor its own operating temperature. Once the thermal monitor detects that the CPU is reaching its maximum operating temperature, the thermal monitor will automatically throttle the CPU (reduce the number of CPU processing cycles) in order to cool the CPU down to a safe operating temperature.

  • Page 91: Hard Disk Boot Priority

    ROCKY-4786EV/EVG User Manual 5.3.2 Hard Disk Boot Priority The Hard Disk Boot Priority menu (BIOS Menu 6) is shown below. BIOS Menu 6: Hard Disk Boot Priority Page 81...

  • Page 92: Advanced Chipset Features

    ROCKY-4786EV/EVG User Manual 5.4 Advanced Chipset Features The Advanced Chipset Features menu (BIOS Menu 7) allows you to change the configuration for the chipset configuration options. BIOS Menu 7: Advanced Chipset Features DRAM Timing Selectable [Manual] The DRAM Timing Selectable configuration option allows you to select whether the manufacturer recommended settings for the following DRAM configuration options are automatically detected by the BIOS or if you manually select the DRAM settings.

  • Page 93: Cas Latency Time [2]

    ROCKY-4786EV/EVG User Manual CAS Latency Time [2] The CAS Latency Time configuration option refers to the Column Address Strobe (CAS) delay time. (To be able to change this configuration option the DRAM Timing Selectable configuration option must be set to “Manual”) The following configuration options are...

  • Page 94: Memory Frequency For [Ddr266]

    ROCKY-4786EV/EVG User Manual option the DRAM RAS# Precharge configuration option must be set to “Manual”) The following configuration options are available 4 clocks 3 clocks (D EFAULT 2 clocks Memory Frequency For [DDR266] The Memory Frequency For configuration option allows you to manually select the DDR type.

  • Page 95: Delay Prior To Thermal [16 Min.]

    ROCKY-4786EV/EVG User Manual are using older ISA expansion cards, please refer to the documentation that came with the card to see if it is necessary to reserve the space. Disabled Memory is not reserved for ISA expansion cards EFAULT Enabled Memory is reserved for ISA expansion cards Delay Prior to Thermal [16 Min.]...

  • Page 96: Init Display First [Pci Slot]

    ROCKY-4786EV/EVG User Manual Init Display First [PCI Slot] The Init Display First option selects whether to boot from the PCI slot or the onboard AGP. PCI Slot The system will boot from the PCI graphics card. EFAULT The system will boot from the AGP graphics card...

  • Page 97: Integrated Peripherals

    ROCKY-4786EV/EVG User Manual Auto The system will automatically determine the display EFAULT device type. The display device type will be set as CRT The display device type will be set as EFP 5.5 Integrated Peripherals The Integrated Peripherals menu (BIOS Menu 8) allows you to change the configuration option for peripheral devices.

  • Page 98: Ide Hdd Block Mode [Enabled]

    On-Chip Primary PCI IDE [Enabled] The On-Chip Primary PCI IDE option allows you to determine whether or not the ROCKY-4786EV/EVG will use the integrated primary IDE channel. Disabled The CPU card will not use the primary IDE channel...

  • Page 99: Ide Udma [Auto]

    ROCKY-4786EV/EVG User Manual IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO Auto Allows the computer to select the correct mode EFAULT PIO mode 0 selected with a maximum transfer rate of 3.3MBps PIO mode 1 selected with a maximum transfer rate of 5.2MBps...

  • Page 100: Onboard Device

    ROCKY-4786EV/EVG User Manual channel On Chip Serial ATA [Disabled] The On Chip Serial ATA (SATA) option allows you to determine the operational status of the onboard SATA controller. Disabled The SATA controller is disabled EFAULT Auto The SATA controller is automatically arranged...

  • Page 101: Usb Controller [Enabled]

    ROCKY-4786EV/EVG User Manual BIOS Menu 10: OnBoard Device [Integrated Peripherals] USB Controller [Enabled] The USB Controller option allows you to activate or deactivate the onboard USB controller. Enabled The USB controller is activated EFAULT Disabled The USB controller is deactivated USB 2.0 Controller [Enabled]...

  • Page 102: Superio Device

    ROCKY-4786EV/EVG User Manual Disabled USB keyboard support no provided by BIOS EFAULT USB keyboard support is provided by BIOS Enabled AC97 Audio Select [Auto] The AC97 Audio Select option allows the user to select the standard that will be used by the system.

  • Page 103: Power On Function [Button Only]

    ROCKY-4786EV/EVG User Manual BIOS Menu 11: SuperIO Device [Integrated Peripherals] POWER ON Function [BUTTON ONLY] The POWER ON Function option allows you to select the method you use to turn on the system. Password When you turn on the computer you will be...

  • Page 104: Kb Power On Password [Enter]

    ROCKY-4786EV/EVG User Manual keyboard's wake-up or power-on button to start up the computer. x KB Power ON Password [Enter] The KB Power ON Password option can only be specified if you have selected the Password as the POWER ON Function option. To set the password, place the cursor on the password option and click “E...

  • Page 105: Onboard Serial Port 1 [3F8/Irq4]

    ROCKY-4786EV/EVG User Manual Enabled Select this option if FDDs are connected to the board and will use the onboard FDD controller. Onboard Serial Port 1 [3F8/IRQ4] The Onboard Serial Port 1 option allows you to select the I/O address and IRQ for the onboard serial port.

  • Page 106: Rxd, Txd Active [Hi,Lo]

    ROCKY-4786EV/EVG User Manual Normal COM2 is enabled and the IR device disabled EFAULT x RxD, TxD Active [Hi,Lo] The RxD, TxD Active BIOS option allows you to set the infra-red reception (RxD) and transmission (TxD) polarity. (This option can only be selected if the UART is set in IrDA mode or ASKIR mode.) The following configuration options are available,...

  • Page 107: Parallel Port Mode [Spp]

    ROCKY-4786EV/EVG User Manual Parallel Port Mode [SPP] The Parallel Port Mode selection allows you to select the mode the parallel port will operate in. The parallel port will operate in the standard parallel EFAULT port (SPP) mode. This parallel port mode will work with most parallel port devices but is slow.

  • Page 108: Power Management Setup

    ROCKY-4786EV/EVG User Manual If the ECP mode is selected in the Parallel Port Mode configuration option, you will be able to configure the ECP Mode Use DMA option. This option determines the DMA channel the parallel port uses when it is in the ECP mode.

  • Page 109: Power-Supply Type [At]

    ROCKY-4786EV/EVG User Manual BIOS Menu 12: Power Management Setup Power-Supply Type [AT] The following configuration options are available, AT (D EFAULT ACPI Function [Enabled] The ACPI Function option allows you to enable or disable the ACPI function. Disabled The ACPI function is enabled...

  • Page 110: Run Vgabios If S3 Resume [Auto]

    ROCKY-4786EV/EVG User Manual S3(STR) System appears off. The CPU has no power; RAM is in slow refresh; the power supply is in a reduced power mode. The BIOS will be able to support both the S1 and the S3 S1&S3 suspend states described above.

  • Page 111: Video Off Method [Dpms]

    ROCKY-4786EV/EVG User Manual and the HDD Power Down time for maximum power saving. The minimum and maximum power settings are shown below: Suspend Mode HDD Power Down Min. Saving 1 hour 15 minutes 1 minute 1 minute Max. Saving Video Off Method [DPMS] The Video Off Method option allows you to specify what happens to the monitor in a power down mode.

  • Page 112: Modem Use Irq [3]

    ROCKY-4786EV/EVG User Manual The Suspend Type option allows you to determine what suspend state the CPU will go into when the system is in the suspend state. Stop Grant When the CPU is in the stop grant state the bus EFAULT clock (BCLK) continues to run.

  • Page 113: Hdd Power Down [Disabled]

    ROCKY-4786EV/EVG User Manual 4 Min 8 Min 12 Min 20 Min 30 Min 40 Min 1 Hour HDD Power Down [Disabled] The HDD Power Down option allows you to specify how long the computer must wait for no activity before the HDD powers down. If you disable this option the HDD will not power down.

  • Page 114: Wake-Up On Lan(I82562Et) [Enabled]

    ROCKY-4786EV/EVG User Manual The Soft –Off by PWR-BTTN option allows you to define how the system responds when the power button is pushed. You may choose to allow the system to be either turned off completely or enter into a suspend mode.

  • Page 115: Resume By Alarm [Disabled]

    ROCKY-4786EV/EVG User Manual If you selected either the S3(STR) or the S1&S3 option in the ACPI Suspend Type option, you will be able to configure the USB KB Wake-Up From S3. This option allows you to wake the system from an S3 suspend state using the keyboard.

  • Page 116: Pnp/Pci Configurations

    ROCKY-4786EV/EVG User Manual Reload Global Timer Events The Reload Global Timer Events field has the following BIOS configuration options Primary IDE 0 Primary IDE 1 Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D]# All the above options have “Disabled” as their default value. When disabled, if any activity occurs on these devices during a suspended state, the system will not be roused.

  • Page 117: Pnp Os Installed [No]

    ROCKY-4786EV/EVG User Manual PNP OS Installed [No] The PNP OS Installed option allows you to determine whether the Plug and Play devices connected to your system will be configured by the operating system or the BIOS. (Default) If the operating system does not meet the Plug and Play specifications, this option allows the BIOS to configure all the devices in the system.
  • Page 118 ROCKY-4786EV/EVG User Manual If you select manual in the Resources Controlled By option then you will be able to configure the IRQ Resources. To do this, select IRQ Resources and press E . A new NTER menu will appear (BIOS Menu 14).

  • Page 119: Dma Resources [Press Enter]

    ROCKY-4786EV/EVG User Manual IRQ-15 assigned to The above options all have the same default and the same options. These are listed below. The IRQ is assigned to legacy ISA for devices PCI Device EFAULT compliant with the original PC AT bus specification,...

  • Page 120: Pc Health Status

    ROCKY-4786EV/EVG User Manual PCI/VGA Palette Snoop [Disabled] The PCI/VGA Palette Snoop option allows you determine whether or not some special VGA cards, high-end hardware MPEG decoders and other similar devices are allowed to look at the VGA palette on the video card so these devices can determine what colors are in use.

  • Page 121: Frequency/Voltage Control

    ROCKY-4786EV/EVG User Manual System Temperature The following temperatures are monitored: System Temperature CPU Temperature Voltages The following voltages are monitored CPU Vcore +1.5 V +3.3 V +5 V +12 V -12 V Fan Speeds The following fan speeds are monitored:...

  • Page 122: Auto Detect Dimm/Pci Clk [Enabled]

    ROCKY-4786EV/EVG User Manual BIOS Menu 16: Frequency/Voltage Control The following system parameters are controlled by the Frequency/Voltage Control menu (BIOS Menu 16). Auto Detect DIMM/PCI CLk [Enabled] The Auto Detect DIMM/PCI CLk option allows BIOS to monitor power consumption to the AGP, PCI and SDRAM DIMM slots and reduce EMI (Electromagnetic Interference) by turning them off when unoccupied or inactive.
  • Page 123 ROCKY-4786EV/EVG User Manual Disabled Does not monitor system clocking EFAULT Page 113...

  • Page 124: Abios Options

    ROCKY-4786EV/EVG User Manual Appendix BIOS Options Page 114...
  • Page 125 ROCKY-4786EV/EVG User Manual Below is a list of BIOS configuration options in the BIOS chapter. 　 Load Fail-Safe Defaults .......................66 　 Load Optimized Defaults.....................66 　 Set Supervisor Password....................66 　 Set User Password ......................66 　 Save & Exit Setup ........................66 　...
  • Page 126 ROCKY-4786EV/EVG User Manual 　 Swap Floppy Drive [Disabled] ....................75 　 Boot Up Floppy Seek [Enabled] ..................76 　 Boot Up Numlock Status [On] ....................76 　 Gate A20 Option [Fast] ......................76 　 Typematic Rate Setting [Disabled]..................76 　 x Typematic Rate (Chars/sec) [6] ..................77 　...
  • Page 127 ROCKY-4786EV/EVG User Manual 　 SATA Port ..........................90 　 USB Controller [Enabled]....................91 　 USB 2.0 Controller [Enabled]....................91 　 USB Keyboard Support [Disabled] ..................91 　 AC97 Audio Select [Auto] ....................92 　 I82562ET LAN (10/100M) [Disabled] ...................92 　 POWER ON Function [BUTTON ONLY] ................93 　...
  • Page 128 ROCKY-4786EV/EVG User Manual 　 Wake-Up On LAN(I82562ET) [Enabled]................104 　 Power On by Ring [Enabled].................... 104 　 x USB KB Wake-Up From S3 [Disabled]................. 104 　 Resume by Alarm [Disabled] ................... 105 　 x Date(of Month) Alarm [0] ....................105 　...

  • Page 129: B Terminology

    ROCKY-4786EV/EVG User Manual Appendix Terminology Page 119...
  • Page 130 ROCKY-4786EV/EVG User Manual AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 131 ROCKY-4786EV/EVG User Manual Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 132 ROCKY-4786EV/EVG User Manual Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 133: C Digital I/O Interface

    ROCKY-4786EV/EVG User Manual Appendix Digital I/O Interface Page 123...

  • Page 134: Introduction

    ROCKY-4786EV/EVG User Manual C.1 Introduction The DIO connector on the ROCKY-4786EV/EVG is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 135: Assembly Language Samples

    ROCKY-4786EV/EVG User Manual C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 136: D Watchdog Timer

    ROCKY-4786EV/EVG User Manual Appendix Watchdog Timer Page 126...
  • Page 137 ROCKY-4786EV/EVG User Manual NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
  • Page 138 ROCKY-4786EV/EVG User Manual NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 139: E Address Mapping

    ROCKY-4786EV/EVG User Manual Appendix Address Mapping Page 129...

  • Page 140: I/O Address Map

    ROCKY-4786EV/EVG User Manual E.1 I/O Address Map I/O address Description Range 000-01F DMA Controller 020-021 Interrupt Controller 040-043 System time 060-06F Keyboard Controller 070-07F System CMOS/Real time Clock 080-09F DMA Controller 0A0-0A1 Interrupt Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor...

  • Page 141: Irq Mapping Table

    ROCKY-4786EV/EVG User Manual E.3 IRQ Mapping Table IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard IRQ9 ACPI IRQ2 Available IRQ10 IRQ3 COM2 IRQ11 LAN/USB2.0/SATA IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 SMBus Controller IRQ13 IRQ6 IRQ14 Primary IDE IRQ7 Available IRQ15...
  • Page 142 ROCKY-4786EV/EVG User Manual Appendix Hazardous Materials Disclosure Page 132...
  • Page 143 ROCKY-4786EV/EVG User Manual F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 144 ROCKY-4786EV/EVG User Manual Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 145 ROCKY-4786EV/EVG User Manual 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

This manual is also suitable for:

Rocky-4786evg

Table of Contents
