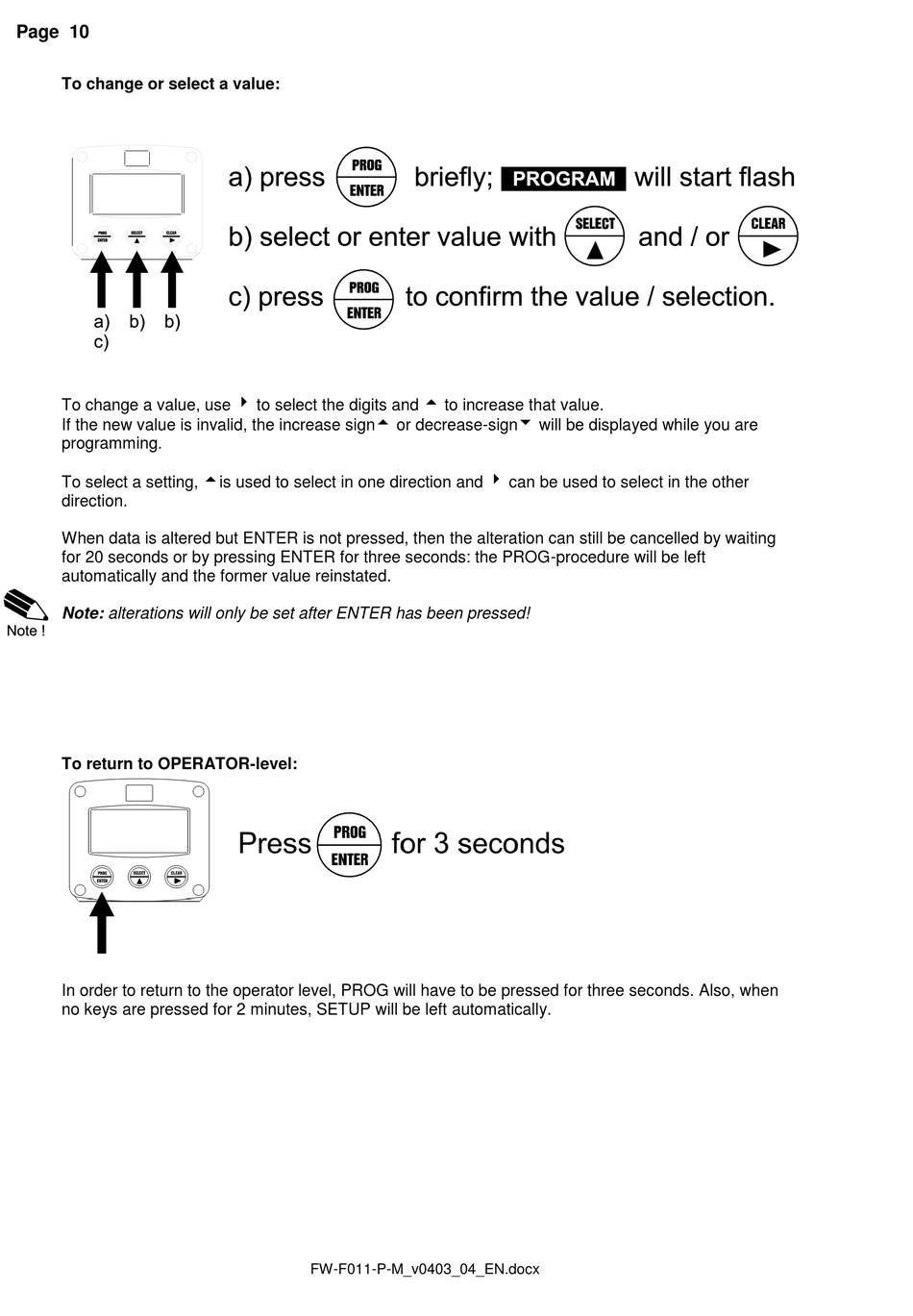

Fluidwell F Series Manual page 10

Page 10
To change or select a value:
To change a value, use  to select the digits and  to increase that value.
If the new value is invalid, the increase sign or decrease-sign will be displayed while you are
programming.
To select a setting, is used to select in one direction and  can be used to select in the other
direction.
When data is altered but ENTER is not pressed, then the alteration can still be cancelled by waiting
for 20 seconds or by pressing ENTER for three seconds: the PROG-procedure will be left
automatically and the former value reinstated.
Note: alterations will only be set after ENTER has been pressed!
To return to OPERATOR-level:
In order to return to the operator level, PROG will have to be pressed for three seconds. Also, when
no keys are pressed for 2 minutes, SETUP will be left automatically.
FW-F011-P-M_v0403_04_EN.docx
