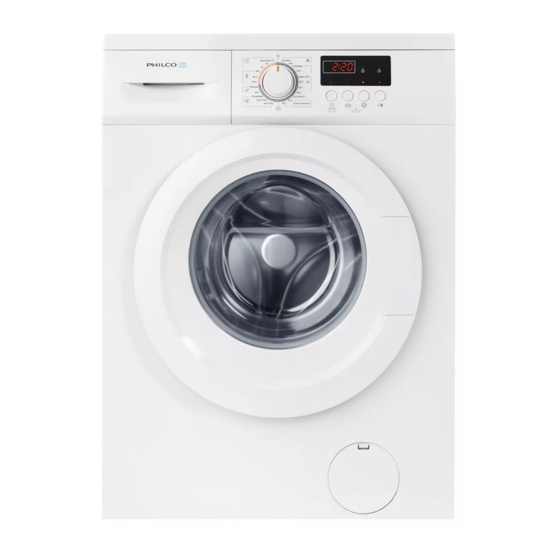

Washing Machine

OWNER'S MANUAL

PLD 106 E

Table of Contents

Summary of Contents for Philco PLD 106 E

Page 1 Washing Machine OWNER’S MANUAL PLD 106 E...
Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s. Revision 03/2022...
Page 3: Table Of Contents
INSTALLATION ..............................10 PRODUCT DESCRIPTION ................................10 INSTALLATION ....................................11 OPERATIONS..............................15 QUICK START .....................................15 BEFORE EACH WASHING ................................16 DETERGENT DISPENSER ................................16 CONTROL PANEL (PLD 106 E) ..............................18 OPTION ........................................18 OTHER FUNCTIONS ..................................19 PROGRAMMES ....................................21 WASHING PROGRAMMES TABLE ...............................22 MAINTENANCES .............................23 CLEANING AND CARE ..................................23 CLEANING THE INLET FILTER ..............................24...
Page 4: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR YOUR SAFETY,THE INFORMATION IN THIS MANUAL MUST BE FOLLOWED TO MINIMIZE THE RISK OF FIRE OR EXPLOSION, ELECTRIC SHOCK, OR TO PREVENT PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. EXPLANATION OF THE SYMBOLS: WARNING! THIS COMBINATION OF SYMBOL AND SIGNAL WORD INDICATES A POTENTIALLY DANGEROUS SITUATION WHICH MAY RESULT IN DEATH OR SERIOUS INJURIES UNLESS IT’S AVOIDED.
Page 5 WARNING! THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTIONS CONCERNING SAFE USE OF THE APPLIANCE AND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
Page 7 - THE APPLIANCE SHOULD ONLY BE CONNECTED TO THE WATER SUPPLY AND THE DRAIN USING NEW HOSES, NOT USING HOSES THAT HAVE ALREADY BEEN USED. - THE APPLIANCE SHOULD BE DISCONNECTED FROM THE MAINS BEFORE ANY MAINTENANCE. - THE POWER CORD PLUG MUST BE CONNECTED TO A GROUNDED THREE-POLE ELECTRIC OUTLET.
Page 8 - DO NOT WASH OR DRY ITEMS THAT HAVE BEEN CLEANED, WASHED, STAINED OR SOAKED IN FLAMMABLE OR EXPLOSIVE SUBSTANCES (SUCH AS WAX, OIL, PAINT, GASOLINE, DEGREASING AGENTS, DRY CLEANING SUBSTANCES, PETROLEUM, ETC.). THIS COULD CAUSE A FIRE OR AN EXPLOSION. THOSE ITEMS SHOULD BE WASHED IN HAND BEFORE USING THEM IN THE APPLIANCE.
Page 9 - A WASHING MACHINE WITH A SINGLE SUPPLY VALVE MAY ONLY BE CONNECTED TO COLD WATER SUPPLY. IF POSSIBLE, AN APPLIANCE WITH TWO SUPPLY VALVES SHOULD BE CONNECTED TO THE HOT WATER SUPPLY AND THE COLD WATER SUPPLY. THESE SAFETY INSTRUCTIONS SHOULD BE READ AND FOLLOWED CAREFULLY AND KEPT FOR FUTURE REFERENCE.
Page 10 OPERATING THE APPLIANCE - BEFORE WASHING THE CLOTHES AT FIRST TIME, THE PRODUCT SHALL BE OPERATED IN ONE ROUND OF THE WHOLE PROCEDURES WITHOUT THE CLOTHES INSIDE. - FLAMMABLE AND EXPLOSIVE OR TOXIC SOLVENTS ARE FORBIDDEN. GASOLINE AND ALCOHOL ETC. SHALL NOT BE USED AS DETERGENTS.
Page 11 PACKAGING/OLD APPLIANCE THIS MARKING INDICATES THAT THIS PRODUCT SHOULD NOT BE DISPOSED WITH OTHER HOUSEHOLD WASTES THROUGHOUT THE EU. TO PREVENT POSSIBLE HARM TO THE ENVIRONMENT OR HUMAN HEALTH FROM UNCONTROLLED WASTE DISPOSAL,RECYCLE IT RESPONSIBLY TO PROMOTE THE SUSTAINABLE REUSE OF MATERIAL RESOURCES.
Page 12: Installation
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! Accessories Transport hole Supply hose cold Supply hose hot Drain hose Owner’s manual plug water water (optional) support (optional) EN - 10 Copyright ©...
Page 13: Installation
Installation Installation area Warning! Before installing the machine, the location characterized as follows shall be selected: 1. Rigid, dry, and level surface 2. Avoid direct sunlight 3. Sufficient ventilation 4. Room temperature is above 0°C 5. Keep far away from the heat resources such as coal or gas. Unpacking the washing machine Warning! triangle foam is removed with the bottom one together.
Page 14 Levelling the washing machine Warning! tighten the nuts. foot Raise Lower Connect Water Supply Hose Warning! will decrease automatically for some program. Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe. 1. Connection between ordinary tap and inlet hose. slide bushing clamp nut Loosen clamp nut and...
Page 15 2. Connection between screw tap and inlet hose. slide bushing Tap with threads and inlet hose Special tap for washing machine water supply hose water Inlet valve Drain Hose Warning! There are two ways to place the end of drain hose: 1.
Page 17: Operations
OPERATIONS Quick Start Caution! without clothes in as follows. 1. Before Washing Main wash Softener Prewash Plug in Open tap Load Close door Add detergent Note! 2. Washing Spin Speed Select Select function or Start up Programme default Note! 3. After Washing digital screen.
Page 18: Before Each Washing
Before Each Washing maybe damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. foaming detergent suitable for machine washing properly. Knot the long strips, zip or button Put small clothes into the...
Page 19 Caution! Programme Programme Cotton 30 °C Spin Only Cotton 40 °C Drain Only Cotton 60 °C Rinse & Spin Cotton 90 °C Delicate 30 °C Synthetic Delicate Synthetic 40 °C Mix 60 °C Drum Clean Mix 40 °C Cotton Intensive 40 °C Cotton Intensive 60 °C Cold Wash Cold Wash 20 °C...
Page 20: Control Panel (Pld 106 E)
Control Panel (PLD 106 E) Quick Wash 15΄ Synthetic 30΄ 40°C Cold Wash 45΄ 20°C 40°C Cotton 30°C 60°C 40°C Delicate 60°C 30°C 90°C Rinse&Spin ECO 40-60°C Drain Only 40°C Spin Only 0°C Cotton Intensive Spin Speed Note! Start/Pause Press the button to start or pause the washing cycle.
Page 21: Other Functions
Programme Option Programme Option Delay Extra Rinse Delay Extra Rinse Cotton 30 °C Drain Only Cotton 40 °C Rinse & Spin Cotton 60 °C Delicate 30 °C Cotton 90 °C Delicate Synthetic Mix 60 °C Synthetic 40 °C Mix 40 °C Drum Clean Spin Only Cold Wash...
Page 22 Child Lock To avoid mis operation by children. > > Spin Speed Spin Choose the Start Programme buzzer beep. Caution! Temp. The temperature is: Cold ,20 °C, 30 °C, 40 °C, 60 °C, 90 °C Speed The speed is: Programme Default Speed Programme Default Speed...
Page 23: Programmes
Programmes Programmes are available according to the laundry type. Programmes Cotton/Normal Synthetic Wash synthetic articles, for example: shirts, coats, blending. loose string construction and easily forming bubbles. DailyWash Cotton Eco Delicate fabrics. Drum Clean green. When this procedure is performed, the clothes or ether washing cannot be added.
Page 24: Washing Programmes Table
Washing Programmes Table Model: PLD 106 E Programme Load (kg) Temp. (°C) Default Time Default Synthetic Cold 2:20 Synthetic 40 °C 2:20 Cold Wash Cold 1:00 Cold Wash 20 °C 1:01 Cotton 30 °C 2:40 Cotton 40 °C 2:40 Cotton 60 °C 2:45 Cotton 90 °C...
Page 25: Maintenances
MAINTENANCES Cleaning And Care Warning! Cleaning The Cabinet Note! or chemical products,etc. Cleaning The Drum Never use steel wool. Note! Cleaning The Door Seal And Glass Wipe the glass and seal after each wash to remove lint and stains. If Remove any coins, buttons and other objects from the seal after each wash.
Page 26: Cleaning The Inlet Filter
Cleaning The Inlet Filter Note! Washing the filter in the tap 1. Close the tap. 2. Remove the water supply hose from the tap. 3. Clean the filter. 4. Reconnect the water supply hose. Washing the filter in washing machine: after being washed.
Page 27: Cleaning The Drain Pump Filter
Cleaning The Drain Pump Filter Warning! Open the Service filter Open the filter Remove extraneous Close the lower cover by turning to the matter Caution! basin. pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the EN - 25 Copyright ©...
Page 28: Trouble Shooting
Trouble Shooting First try to find a solution to the problem. If not, contact the service centre. Description Reason Solution Washing machine Door is not closed properly. cannot startup. Washer’s safety protection design is Door can’t be opened. Disconnect the power, restart the product. The connection between inlet pipe or outlet hose is not tight.
Page 29: Technical Specifications
Technical Specifications Power Supply MAX. Current 10 A Standard Water Pressure Washing Dimension Model Net Weight rated Power Capacity (W/D/H) mm PLD 106 E 595/400/850 2000W EN - 27 Copyright © 2020, Fast ČR, a. s. Revision 03/2022...
Page 30: Product Information Sheet
PRODUCT INFORMATION SHEET Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 Supplier's name or trademark: PHILCO Supplier's address: U Sanitasu 1621 Říčany 251 01, Czech Republic Model identifier: PLD 106 E General product parameters: Washmachine Parameter Value Parameter Value Height...
Page 31 Minimum duration of the guarantee offered by the supplier: 24 months This product has been designed to release silver ions during the washing cycle Additional information: is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - Copyright © 2020, Fast ČR, a. s.
Page 32 Note! in above mentioned table. Remarks: The energy efficiency class is from A(highest efficiency) to D (lowest efficiency). Energy consumption per year, based on 220 standard washing cycles for standard programme at 60 °C and will depend on how the appliance is used. Water consumption per year based on 220 standard washing cycles for standard programme at 60 °C and 40 °C at full and partial load.
Page 33 The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. Subject to change without notice. EN - 3 Copyright ©...
Page 34 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES shall not be treated as household waste. Please, dispose of this product at your applicable collection European Union or other European states you may return your products to your local retailer when natural resources and help in preventing the potential negative impact on the environment and local authorities or the nearest waste collection centre for further details.
Page 35 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
Page 36 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
Page 37 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
