Page 1: Washing Machine

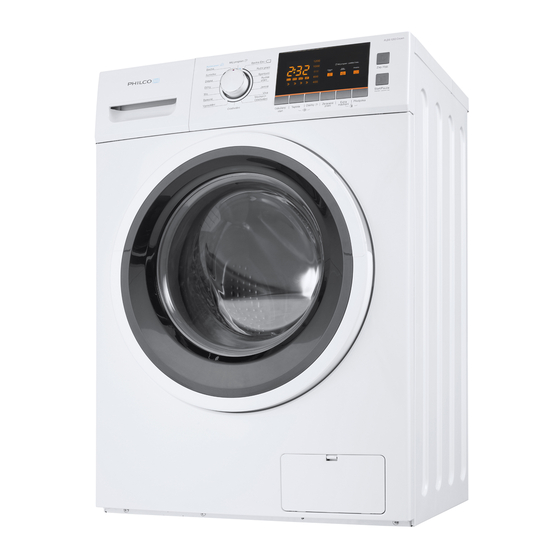

WASHING MACHINE OWNER’S MANUAL PLD 1483 Crown PLD 1273 Crown PLDS 1483 Crown PLDS 1263 Crown PLDS 1063 Crown PLD 16106 Crown... - Page 2 You’ll fi nd many answers to common problems in the chart of troubleshooting tips. If you review the chart of Troubleshooting Tips fi rst, you may not need to call for service. Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual.
-
Page 3: Table Of Contents
CONTENTS PART 1: SAFETY PRECAUTIONS ........................2 PART 2: OVERVIEW OF WASHING MACHINE ....................4 PART 3: INSTALL WASHING MACHINE ......................6 PART 4: OPERATE WASHING MACHINE ....................... 10 • Checklist and Preparation before Washing Clothes ......................10 • View of Control Panel ................................. 14 •... -
Page 4: Part 1: Safety Precautions
PART 1: SAFETY PRECAUTIONS Safety Precautions • Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine. • Pull out its plug and cut off water supply after the operation. •... - Page 5 • Packing materials may be dangerous to the kids. • Please keep all packing materials (plastic bags, foams etc) far away from the kids. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases. •...
- Page 6 • Do not climb up and sit on top cover of the machine. • Do not lean against machine door. • Please do not close the door with excessive forces. If it is found diffi cult to close the door, please check if the excessive clothes are put in or distributed well.
-
Page 7: Part 2: Overview Of Washing Machine
PART 2: OVERVIEW OF WASHING MACHINE Component Detergent Drawer Door Service Panel Control Pane Power Plug Outlet Hose Detergent Box EN - 5 Copyright © 2015, Fast ČR, a. s. 11/2015... - Page 8 Accessories Transport Inlet pipe Inlet pipe Outlet hose hole plug H (optional) support (optional) EN - 6 Copyright © 2015, Fast ČR, a. s. 11/2015...
-
Page 9: Part 3: Install Washing Machine
PART 3: Install Washing Machine Unpacking the washing machine Unpack your washing machine and check if there is any damage during the transportation. Also make sure that all the items (as shown in Page 5) in the attached bag are received. If there is any damage to the washing machine during the transportation, or any item is missing, please contact the local dealer immediately. -
Page 10: Connect Inlet Pipe
Put a solid cylinder (e.g. pop cans) oppositely on the top cover of the washing machine from in the left, right, front and back directions. If the cylinder keeps stable, the washing machine is positioned level. If it rolls, the washing machine is positioned unlevel. The rolling direction is the direction of lower ground surface. -
Page 11: Electrical Connection
Connect it to the branch drain pipe of the trough. It can drain the water up and down, outlet hose shall not be installed ata height beyond 100cm and its end shall not be immersed in water. Position outlet hose properly so that the fl oor will not be damaged by water leakage. NOTE: If the machine has outlet hose support, please install it like the following pictures. - Page 12 When connecting and pulling out the plug, hold the plug tightly and then pull it out. Do not pull power cord forcibly. If power cord is damaged or has any sign of being broken, special power cord must be selected or purchased from its manufacturer or service center for replacement.
-
Page 13: Part 4: Operate Washing Machine
PART 4: OPERATE WASHING MACHINE Checklist and Preparation before Washing Clothes Please read this operation method carefully to avoid the troubles of washing machine and damages of clothes. Check if the fi rst-washed clothes will bed decolorized. After a white towel touched with liquid detergent is used to wash the invisible corners of the clothes, check if the white towel is stained with clothes‘... - Page 14 NOTE: Keep detergents and additives in safe and dry places out of touch by kids. Please take out the items out of the pockets. Please check the pockets of the clothes to be washed, empty the rigid items such as decorations and coins, otherwise washing machine may be damaged or have abnormal troubles.
- Page 15 To protect baby skin Baby articles (baby clothes and towels) including napkins shall be washed separately. If they are washed together with the adults‘ clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning without the detergent residues. It is suggested that the parts that are easily stained such as white sockets, collars and sleeves etc.
-
Page 16: Quick Start
Quick Start 10 Press the 1 Install the washing machine [start/pause] 2 Open the door and 9 Select the desired Load the laundry programme 8 Press the On/Off 3 Measure out the detergent 4 Close the door 7 Plug the power supply 5 Put down (hang up) 6 Turn on the water tap the drain pipe... -
Page 18: Select The Procedure
Washing Clothes at fi rst time Before washing clothes at fi rst time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows: Connect power source and water. Put a little detergent into the box and close it. Press the button “On/Off ”. - Page 19 First, turn the rotary switch to select the corresponding procedures according to the types of textiles. Second, select the proper temperature according to the dirtiness. Generally, the higher the temperature is, the more the power is consumed. Last, select the proper revolution speed. The higher the revolution speed is, the drier the textiles are spun, but higher the noises will also be increased.
- Page 20 The main function can be selected as follows: Prewash The Prewash function can get an extra wash before main wash. Speed Wash The function can decrease the washing time. Extra Rinse The laundry will undergo extra rinse once after you select it. Delay Delay function can be set with this button, the delaying the time is 0-24h.
- Page 21 EN - 19 Copyright © 2015, Fast ČR, a. s. 11/2015...
- Page 22 EN - 20 Copyright © 2015, Fast ČR, a. s. 11/2015...
-
Page 23: Maintenance
PART 5: MAINTENANCE Before your maintenance starts, please do pull out the power plug or disconnect power and close the tap. WARNING: Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases are generated or exploded. Never use water to sprinkle and wash the washing machine. - Page 24 WARNING: To avoid burning, it shall be done after the hot water inside the machine cools down. Clean detergent box and grooves Clean detergent drawer and grooves Press down the arrow location on softener cover inside the drawer. Lift the clip up and take out softener cover and wash all grooves with water.
- Page 25 WARNING: Pull out the power plug to avoid electrical shock before washing. After using the washing machine, pull out the power cord and close the door tightly to avoid pinching the kids. Remove foreign matters Drain Pump Filter: Drain pump fi lter can fi lter the yarns and small foreign matters from the washings. Clean the fi lter periodically to ensure the normal operation of washing machine.
-
Page 26: Troubleshooting
Troubleshooting Troubles Reason Solution Check if the door is closed tightly. Check if power plug is inserted well. Washing machine cannot Check if water supply tap is opened. start up Check if button “Start/Pause” is pressed. Check if button “On/Off ” is pressed. Machine‘s safety protection Door cannot be opened Disconnect the power. -
Page 27: Remove The Problems
Remove the problems Display LED Description Reason Solution Restart after the door is Door is not closed properly. Door lock closed. problem Please call up service line if there are still troubles. Open the tap or wait till Tap is not opened or water the water supply becomes fl ows too slowly. -
Page 28: Part 6: Appendix
PART 6: APPENDIX Care Lable The label and sign on the fabric can help you to choose the best way to launder your clothes. Normal wash Hand wash Bleach Chlorine bleach Tumble dry. Medium may be used (max 150°C) Warm wash Chlorine bleach Tumble dry. - Page 30 PART 7: INFORMATION SHEET Information Sheet INFORMATION SHEET: Philco Philco brand: Brand Philco PLD 16106 PLD 1483 PLD 1273 PLDS 1483 PLDS 1263 PLDS 1063 Product number Crown Crown Crown Crown Crown Crown Washing capacity (kg) - cotton 60 °C Energy effi ciency class (A... low electricity...
-
Page 31: Packaging Materials
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. - Page 32 NOTES EN - 30 Copyright © 2015, Fast ČR, a. s. 11/2015...
