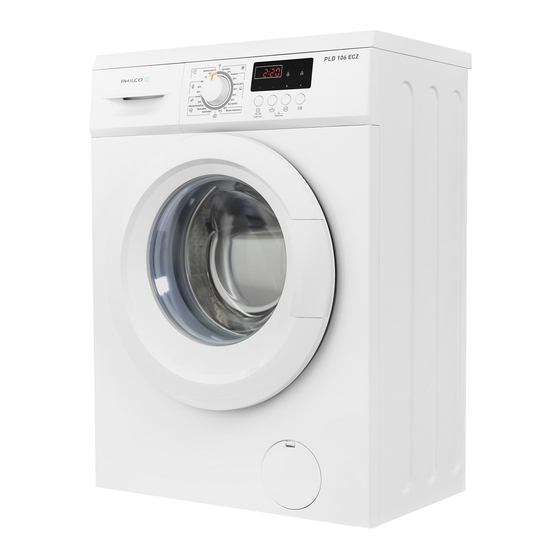

- Page 1 Washing Machine OWNER’S MANUAL PLD 106 ECZ PLD 106 EPL PLD 106 EHU...
- Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s. Revision 10/2022...
-
Page 3: Table Of Contents
INSTALLATION ....................................11 OPERATIONS..............................15 QUICK START .....................................15 BEFORE EACH WASHING ................................16 DETERGENT DISPENSER ................................16 CONTROL PANEL (PLD 106 ECZ / PLD 106 EPL / PLD 106 EHU) ..................18 OPTION ........................................18 OTHER FUNCTIONS ..................................19 PROGRAMMES ....................................21 WASHING PROGRAMMES TABLE ...............................22 MAINTENANCES .............................23 CLEANING AND CARE ..................................23... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS p SAFETY INSTRUCTIONS FOR YOUR SAFETY,THE INFORMATION IN THIS MANUAL MUST BE FOLLOWED TO MINIMIZE THE RISK OF FIRE OR EXPLOSION, ELECTRIC SHOCK, OR TO PREVENT PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. EXPLANATION OF THE SYMBOLS: WARNING! THIS COMBINATION OF SYMBOL AND SIGNAL WORD INDICATES A POTENTIALLY DANGEROUS SITUATION WHICH MAY RESULT IN... - Page 5 WARNING! THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTIONS CONCERNING SAFE USE OF THE APPLIANCE AND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
- Page 6 THIS APPLIANCE IS INTENDED TO BE USED ONLY IN HOUSEHOLDS AND NOT IN SIMILAR PREMISES, SUCH AS: - KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; - APPLIANCES USED APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; - APPLIANCES USED IN BED AND BREAKFAST FACILITIES; - APPLIANCES USED IN CATERING AND OTHER SIMILAR NONVENDING ENVIRONMENTS THIS APPLIANCE IS INTENDED FOR WASHING FABRICS FOR...
- Page 7 - THE APPLIANCE SHOULD ONLY BE CONNECTED TO THE WATER SUPPLY AND THE DRAIN USING NEW HOSES, NOT USING HOSES THAT HAVE ALREADY BEEN USED. - THE APPLIANCE SHOULD BE DISCONNECTED FROM THE MAINS BEFORE ANY MAINTENANCE. - THE POWER CORD PLUG MUST BE CONNECTED TO A GROUNDED THREE-POLE ELECTRIC OUTLET.
- Page 8 - DO NOT WASH OR DRY ITEMS THAT HAVE BEEN CLEANED, WASHED, STAINED OR SOAKED IN FLAMMABLE OR EXPLOSIVE SUBSTANCES (SUCH AS WAX, OIL, PAINT, GASOLINE, DEGREASING AGENTS, DRY CLEANING SUBSTANCES, PETROLEUM, ETC.). THIS COULD CAUSE A FIRE OR AN EXPLOSION. THOSE ITEMS SHOULD BE WASHED IN HAND BEFORE USING THEM IN THE APPLIANCE.
- Page 9 - A WASHING MACHINE WITH A SINGLE SUPPLY VALVE MAY ONLY BE CONNECTED TO COLD WATER SUPPLY. IF POSSIBLE, AN APPLIANCE WITH TWO SUPPLY VALVES SHOULD BE CONNECTED TO THE HOT WATER SUPPLY AND THE COLD WATER SUPPLY. THESE SAFETY INSTRUCTIONS SHOULD BE READ AND FOLLOWED CAREFULLY AND KEPT FOR FUTURE REFERENCE.
- Page 10 OPERATING THE APPLIANCE - BEFORE WASHING THE CLOTHES AT FIRST TIME, THE PRODUCT SHALL BE OPERATED IN ONE ROUND OF THE WHOLE PROCEDURES WITHOUT THE CLOTHES INSIDE. - FLAMMABLE AND EXPLOSIVE OR TOXIC SOLVENTS ARE FORBIDDEN. GASOLINE AND ALCOHOL ETC. SHALL NOT BE USED AS DETERGENTS.
- Page 11 PACKAGING/OLD APPLIANCE THIS MARKING INDICATES THAT THIS PRODUCT SHOULD NOT BE DISPOSED WITH OTHER HOUSEHOLD WASTES THROUGHOUT THE EU. TO PREVENT POSSIBLE HARM TO THE ENVIRONMENT OR HUMAN HEALTH FROM UNCONTROLLED WASTE DISPOSAL,RECYCLE IT RESPONSIBLY TO PROMOTE THE SUSTAINABLE REUSE OF MATERIAL RESOURCES.
-
Page 12: Installation
INSTALLATION p Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport hole Supply hose cold Supply hose hot Drain hose Owner’s manual plug water water (optional) support (optional) -
Page 13: Installation
p Installation Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. Before installing the machine, the location characterized as follows shall be selected: 1. Rigid, dry, and level surface 2. Avoid direct sunlight 3. Sufficient ventilation 4. Room temperature is above 0°C 5. - Page 14 Levelling the washing machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. 1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2. Loosen the lock nut turn the feet until it closely contacts with the floor. 3. Adjust the legs and lock them with a spanner, make sure the machine is steady. Lock nut foot Raise Lower Connect Water Supply Hose Warning! • To prevent leakage or water damage, follow the instructions in this chapter! • Do not kink, crush, modify or sever water inlet hose.
- Page 15 2. Connection between screw tap and inlet hose. slide bushing Tap with threads and inlet hose Special tap for washing machine Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose Warning! • Do not kink or protract the drain hose. • Position drain hose properly .otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.
- Page 16 Trough Hose Retainer Max.100cm Min.60cm Warning! • When installing drain hose, fix it properly with a rope. • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. EN - 14 Copyright © 2020, Fast ČR, a. s. Revision 10/2022...
-
Page 17: Operations
OPERATIONS p Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener Prewash Plug in Open tap Load Close door Add detergent Note! • Detergent need to be added in “case I“ after selecting pre-washing for machines with this function. 2. Washing Spin Speed Select Select function or Start up Programme default... -
Page 18: Before Each Washing
p Before Each Washing • The working condition of the washer should be(0-40)°C.lf used under 0°C,the inlet valve and draining system maybe damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. • Please check the labels and the explanation of using detergent before wash. Use non-foaming or less- foaming detergent suitable for machine washing properly. - Page 19 Caution! • Detergent only need to be added in „ case I “after selecting pre-washing for machines with this function. Programme Programme Cotton 30 °C Spin Only Cotton 40 °C Drain Only Cotton 60 °C Rinse & Spin Cotton 90 °C Delicate 30 °C Synthetic Delicate Synthetic 40 °C Mix 60 °C ...
-
Page 20: Control Panel (Pld 106 Ecz / Pld 106 Epl / Pld 106 Ehu)
Control Panel (PLD 106 ECZ / PLD 106 EPL / PLD 106 EHU) ● Quick Wash 15΄ Synthetic 30΄ 40°C Cold Wash 45΄ 20°C 40°C Cotton 30°C 60°C 40°C Delicate 60°C 30°C 90°C Rinse&Spin ECO 40-60°C Drain Only 40°C Spin Only 40°C... -
Page 21: Other Functions
Programme Option Programme Option Delay Extra Rinse Delay Extra Rinse Cotton 30 °C Drain Only Cotton 40 °C Rinse & Spin Cotton 60 °C Delicate 30 °C Cotton 90 °C Delicate ... - Page 22 Child Lock To avoid mis operation by children. > > Spin Speed Spin Choose the Start Press [Extra Rinse] and [No Spin]/[Spin Speed] 3 sec. till Programme buzzer beep. Caution! • Press the two button 3sec. also to be released the function. • The “Child Lock” will lock all buttons except [OFF]. • Cut off the power supply, the kid’s protection is to be released. • If you want to change the program on child lock condition, you should unlock the child lock first, then rotate the knob to OFF position, finally choose the program you want. Temp. The temperature is: Cold ,20 °C, 30 °C, 40 °C, 60 °C, 90 °C Speed The speed is:...
-
Page 23: Programmes
p Programmes Programmes are available according to the laundry type. Programmes Cotton/Normal Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. DailyWash lt is suitable for washing few and not very dirty clothes quickly. Cotton Eco To increase the washing effects, washing time is increased. Delicate For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics. Drum Clean lt applys 90 °C high temperature sterilization to make the clothes washing more green. -
Page 24: Washing Programmes Table
Washing Programmes Table Model: PLD 106 ECZ / PLD 106 EPL / PLD 106 EHU Programme Load (kg) Temp. (°C) Default Time Default Synthetic Cold 2:20 Synthetic 40 °C 2:20 Cold Wash Cold 1:00 Cold Wash 20 °C 1:01 Cotton 30 °C... -
Page 25: Maintenances
MAINTENANCES p Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed. Note! • Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products,etc. Cleaning The Drum The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool. Note! • Don’t put laundry in the washing machine during the drum cleaning. Cleaning The Door Seal And Glass Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks. -
Page 26: Cleaning The Inlet Filter
p Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1. Close the tap. 2. Remove the water supply hose from the tap. 3. Clean the filter. 4. Reconnect the water supply hose. Washing the filter in washing machine: 1. Screw off the inlet pipe from the backside of the machine. -
Page 27: Cleaning The Drain Pump Filter
p Cleaning The Drain Pump Filter Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. • Clean the filter periodically to ensure the normal operation of washing machine. Open the Service filter Open the filter Remove extraneous Close the lower cover by turning to the matter counter clockwise Caution! • Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak; • Some machines don’t have emergency drain hose, rotate lower cover cap directly to make water run into basin. -
Page 28: Trouble Shooting
p Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem. If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed. Check if Door is not closed properly. cannot startup. the clothes is stuck. Washer’s safety protection design is Door can’t be opened. Disconnect the power, restart the product. -
Page 29: Technical Specifications
Standard Water Pressure 0.05 MPa - 1MPa Washing Dimension Model Rated Power Capacity (W/D/H) mm Weight PLD 106 ECZ / PLD 106 EPL / PLD 106 EHU 6.0kg 595/400/850 52kg 2000W EN - 27 Copyright © 2020, Fast ČR, a. s. Revision 10/2022... -
Page 30: Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2016 Supplier's name or trademark: PHILCO Supplier's address: FAST ČR, a.s. U Sanitasu 1621 Říčany 251 01, Czech Republic Model identifier: PLD 106 ECZ / PLD 106 EPL / PLD 106 EHU General product parameters: Washmachine Parameter... - Page 31 Minimum duration of the guarantee offered by the supplier: 24 months This product has been designed to release silver ions during the washing cycle Additional information: Weblink to the supplier’s website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - 29 Copyright © 2020, Fast ČR, a. s. Revision 10/2022...
- Page 32 Note! • Programme setting for testing in accordance with applicable standard En60456. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the applicance is used,and maybe different with the parameters in above mentioned table. Remarks: 1 The energy efficiency class is from A(highest efficiency) to D (lowest efficiency). 2 Energy consumption per year, based on 220 standard washing cycles for standard programme at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
- Page 33 The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis. Subject to change without notice. EN - 31 Copyright ©...
- Page 34 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your...
