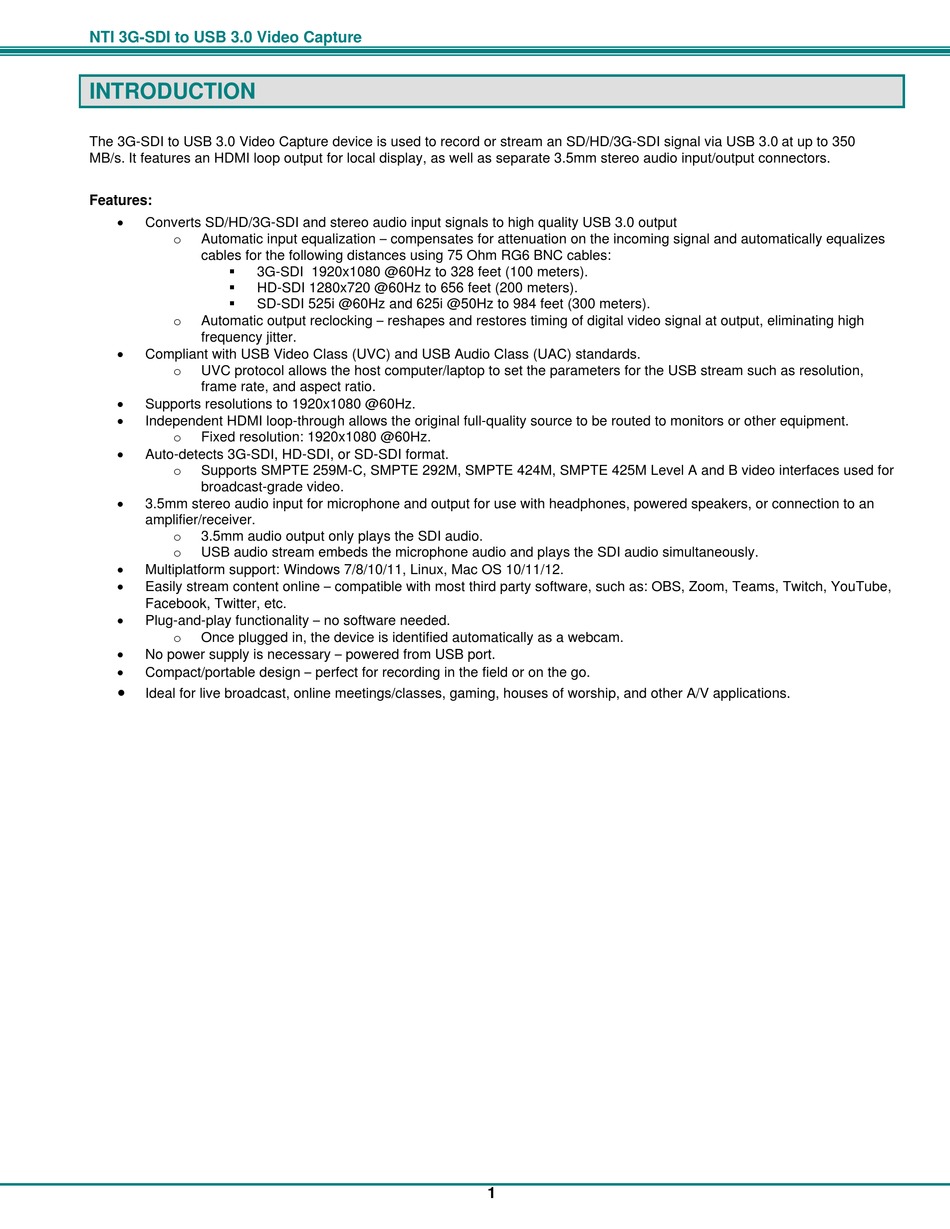

NTI 3G-SDI to USB 3.0 Video Capture

INTRODUCTION

The 3G-SDI to USB 3.0 Video Capture device is used to record or stream an SD/HD/3G-SDI signal via USB 3.0 at up to 350
MB/s. It features an HDMI loop output for local display, as well as separate 3.5mm stereo audio input/output connectors.
Features:

Converts SD/HD/3G-SDI and stereo audio input signals to high quality USB 3.0 output
Automatic input equalization – compensates for attenuation on the incoming signal and automatically equalizes
o
cables for the following distances using 75 Ohm RG6 BNC cables:

3G-SDI 1920x1080 @60Hz to 328 feet (100 meters).

HD-SDI 1280x720 @60Hz to 656 feet (200 meters).

SD-SDI 525i @60Hz and 625i @50Hz to 984 feet (300 meters).
Automatic output reclocking – reshapes and restores timing of digital video signal at output, eliminating high
o
frequency jitter.

Compliant with USB Video Class (UVC) and USB Audio Class (UAC) standards.
UVC protocol allows the host computer/laptop to set the parameters for the USB stream such as resolution,
o
frame rate, and aspect ratio.

Supports resolutions to 1920x1080 @60Hz.

Independent HDMI loop-through allows the original full-quality source to be routed to monitors or other equipment.
Fixed resolution: 1920x1080 @60Hz.
o

Auto-detects 3G-SDI, HD-SDI, or SD-SDI format.
Supports SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B video interfaces used for
o
broadcast-grade video.

3.5mm stereo audio input for microphone and output for use with headphones, powered speakers, or connection to an
amplifier/receiver.
3.5mm audio output only plays the SDI audio.
o
USB audio stream embeds the microphone audio and plays the SDI audio simultaneously.
o

Multiplatform support: Windows 7/8/10/11, Linux, Mac OS 10/11/12.

Easily stream content online – compatible with most third party software, such as: OBS, Zoom, Teams, Twitch, YouTube,
Facebook, Twitter, etc.

Plug-and-play functionality – no software needed.
Once plugged in, the device is identified automatically as a webcam.
o

No power supply is necessary – powered from USB port.

Compact/portable design – perfect for recording in the field or on the go.

Ideal for live broadcast, online meetings/classes, gaming, houses of worship, and other A/V applications.
