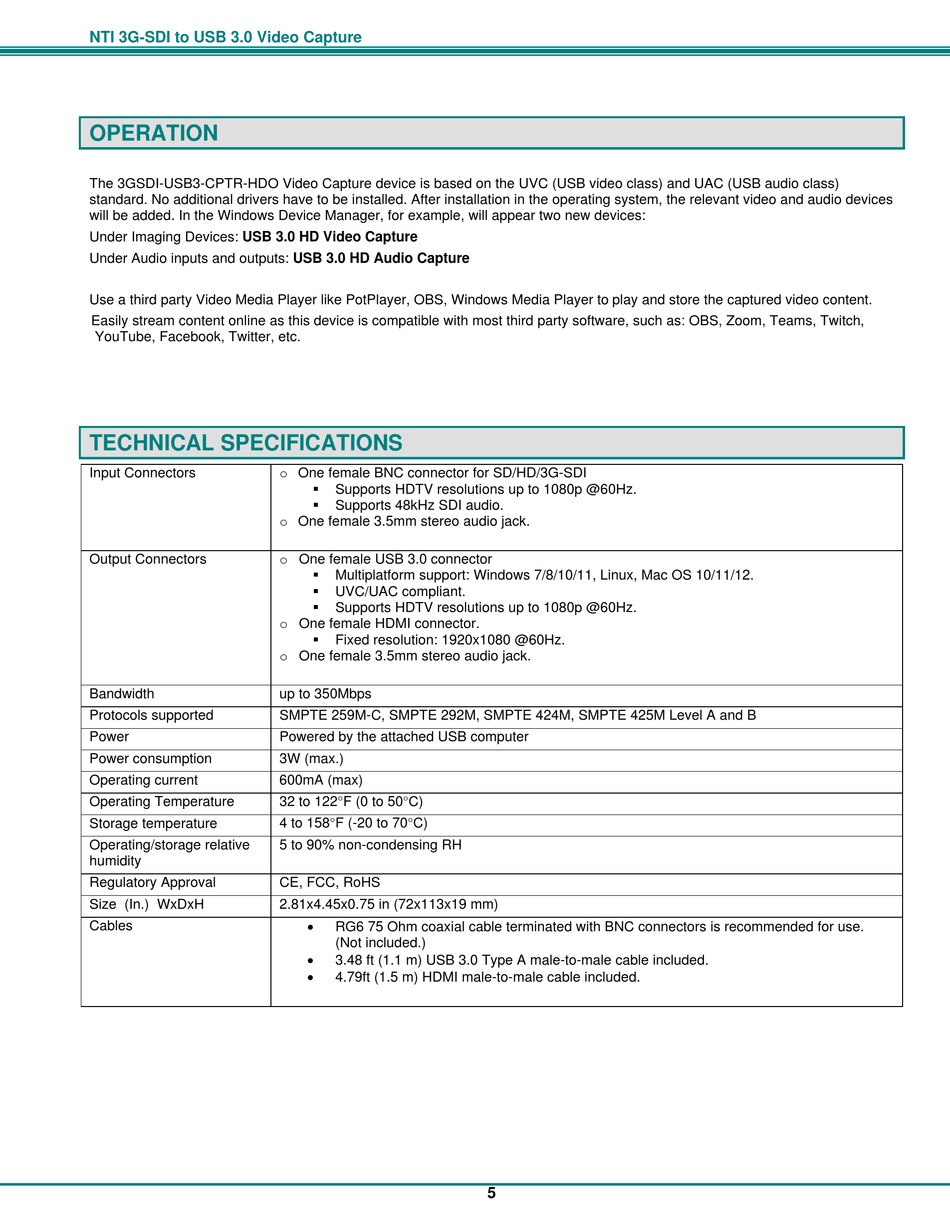

NTI 3G-SDI to USB 3.0 Video Capture

OPERATION

The 3GSDI-USB3-CPTR-HDO Video Capture device is based on the UVC (USB video class) and UAC (USB audio class)
standard. No additional drivers have to be installed. After installation in the operating system, the relevant video and audio devices
will be added. In the Windows Device Manager, for example, will appear two new devices:
Under Imaging Devices: USB 3.0 HD Video Capture
Under Audio inputs and outputs: USB 3.0 HD Audio Capture
Use a third party Video Media Player like PotPlayer, OBS, Windows Media Player to play and store the captured video content.
Easily stream content online as this device is compatible with most third party software, such as: OBS, Zoom, Teams, Twitch,
YouTube, Facebook, Twitter, etc.

TECHNICAL SPECIFICATIONS

Input Connectors
Output Connectors
Bandwidth
Protocols supported
Power
Power consumption
Operating current
Operating Temperature
Storage temperature
Operating/storage relative
humidity
Regulatory Approval
Size (In.) WxDxH
Cables
o One female BNC connector for SD/HD/3G-SDI

Supports HDTV resolutions up to 1080p @60Hz.

Supports 48kHz SDI audio.
o One female 3.5mm stereo audio jack.
o One female USB 3.0 connector

Multiplatform support: Windows 7/8/10/11, Linux, Mac OS 10/11/12.

UVC/UAC compliant.

Supports HDTV resolutions up to 1080p @60Hz.
o One female HDMI connector.

Fixed resolution: 1920x1080 @60Hz.
o One female 3.5mm stereo audio jack.
up to 350Mbps
SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B
Powered by the attached USB computer
3W (max.)
600mA (max)
32 to 122°F (0 to 50°C)
4 to 158°F (-20 to 70°C)
5 to 90% non-condensing RH
CE, FCC, RoHS
2.81x4.45x0.75 in (72x113x19 mm)

RG6 75 Ohm coaxial cable terminated with BNC connectors is recommended for use.
(Not included.)

3.48 ft (1.1 m) USB 3.0 Type A male-to-male cable included.

4.79ft (1.5 m) HDMI male-to-male cable included.
