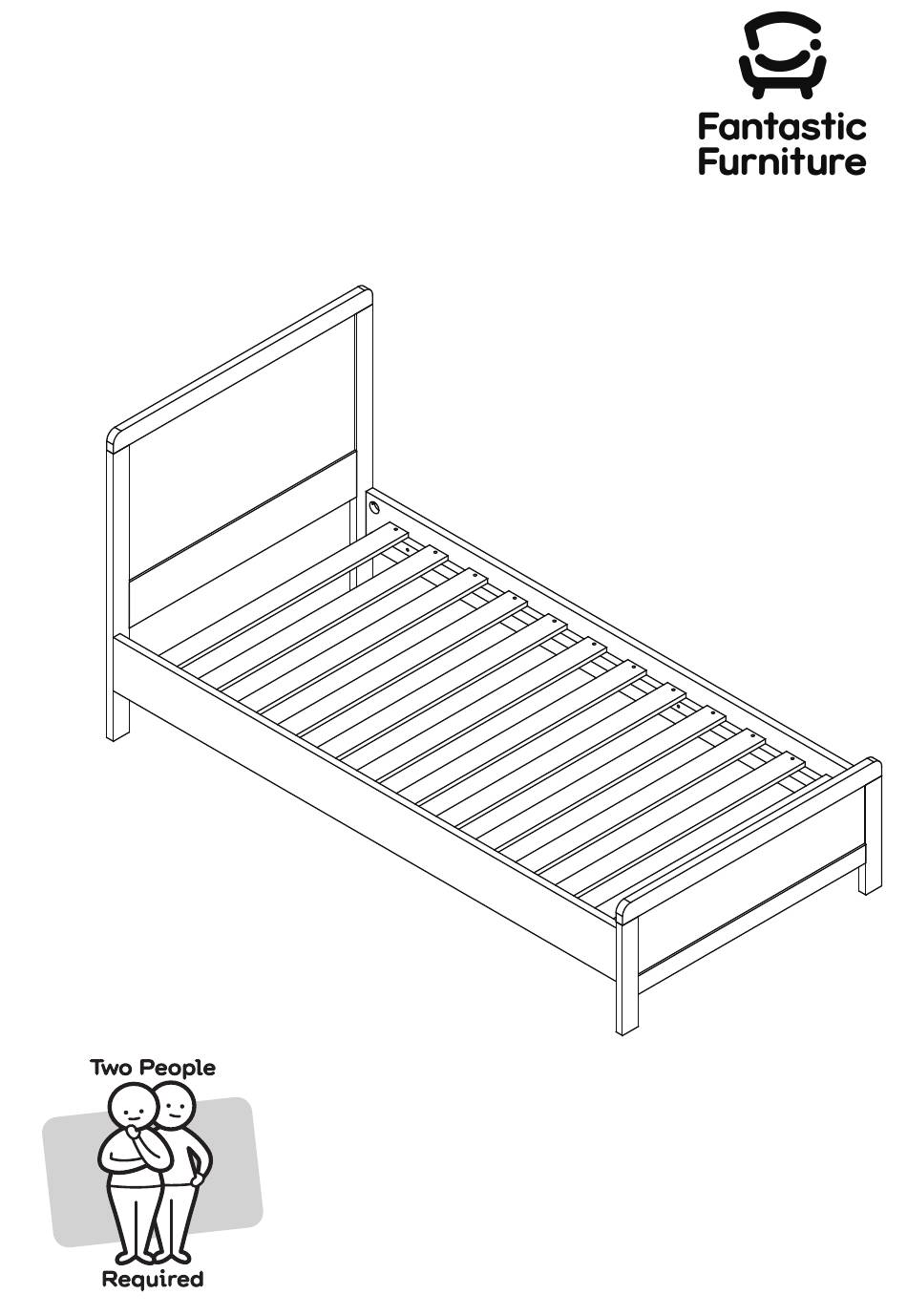

  • Page 1 Version 1.0 Oasis Bed Single fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Rail (P1) DO NOT USE Rail (P4) Other tools you need: Back Phillips Head Screwdriver; Hammer Panel (P5) Parts list Rail 2 x Rails (P1); Rail (P3) Side Rail Rail (P2); (P2) (P6) Rail (P3);...
  • Page 5 Step 1 You will need (P1) 6 x Threaded 6 x Nuts Rods (H4) (H9) √ (P3) × (P4) Insert 6 x nuts (H9) into the holes in rails (P1, P3, P4). Ensure the lines in the nuts (H9) face incoming threaded rods as shown in the image above.
  • Page 6 Step 3 Non textured side (P3) (P5) (P2) (P4) Slide back panel (P5) into the grooves of rails (P2, P3, P4). Step 4 You will need 2 x Half Round 2 x Hexagonal Nuts (H6) Nuts (H3) (P3) (P1) 4 x Dowels 1 x Spanner (H1) (H11)
  • Page 7 Step 5 You will need (P1) 4 x Threaded 4 x Nuts Rods (H4) (H9) √ (P9) (P10) × Insert 4 x nuts (H9) into the holes in rails (P1, P9, P10). Ensure the lines in the nuts (H9) face incoming threaded rods as shown in the image above.
  • Page 8 Step 7 (P9) Non textured side (P11) (P8) (P10) Slide back panel (P11) into the grooves of rails (P8, P9, P10). Step 8 You will need 2 x Half Round 2 x Hexagonal Nuts (H6) Nuts (H3) (P9) (P1) 4 x Dowels 1 x Spanner (H1) (H11)
  • Page 9 Step 9 You will need (P9) (P1) 4 x Threaded 2 x Plastic Glides (H7) Rods (H4) 4 x Small Hole Hammer Stickers (H10) (P10) Attach 4 x threaded rods (H4) into rails (P9, P10). Attach 2 x plastic glides (H7) to the end of rails (P9, P10) by gently tapping with a hammer.
  • Page 10 Step 11 You will need (P9) 2 x Dowels 4 x Half Round (H1) Nuts (H3) (P6) (P10) 4 x Hexagonal 1 x Spanner Nuts (H6) (H11) Two People (P6) Insert 2 x dowels (H1) into 2 x side rails (P6). Attach rails (P9, P10) to 2 x side rails (P6) and secure using 4 x hexagonal nuts (H6) and 4 x half round nuts (H3), tightening with the spanner (H11).
  • Page 11 Step 13 You will need 24 x Screws Phillips Head (P6) (P7) (H2) Screwdriver (P6) Attach the 12 x slats (P7) to the 2 x side rails (P6) using 24 x screws (H2), tightening with a phillips head screwdriver. Step 14 You will need (P1) 6 x Large Hole...

  • Page 12: Job Complete

    Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 12...
