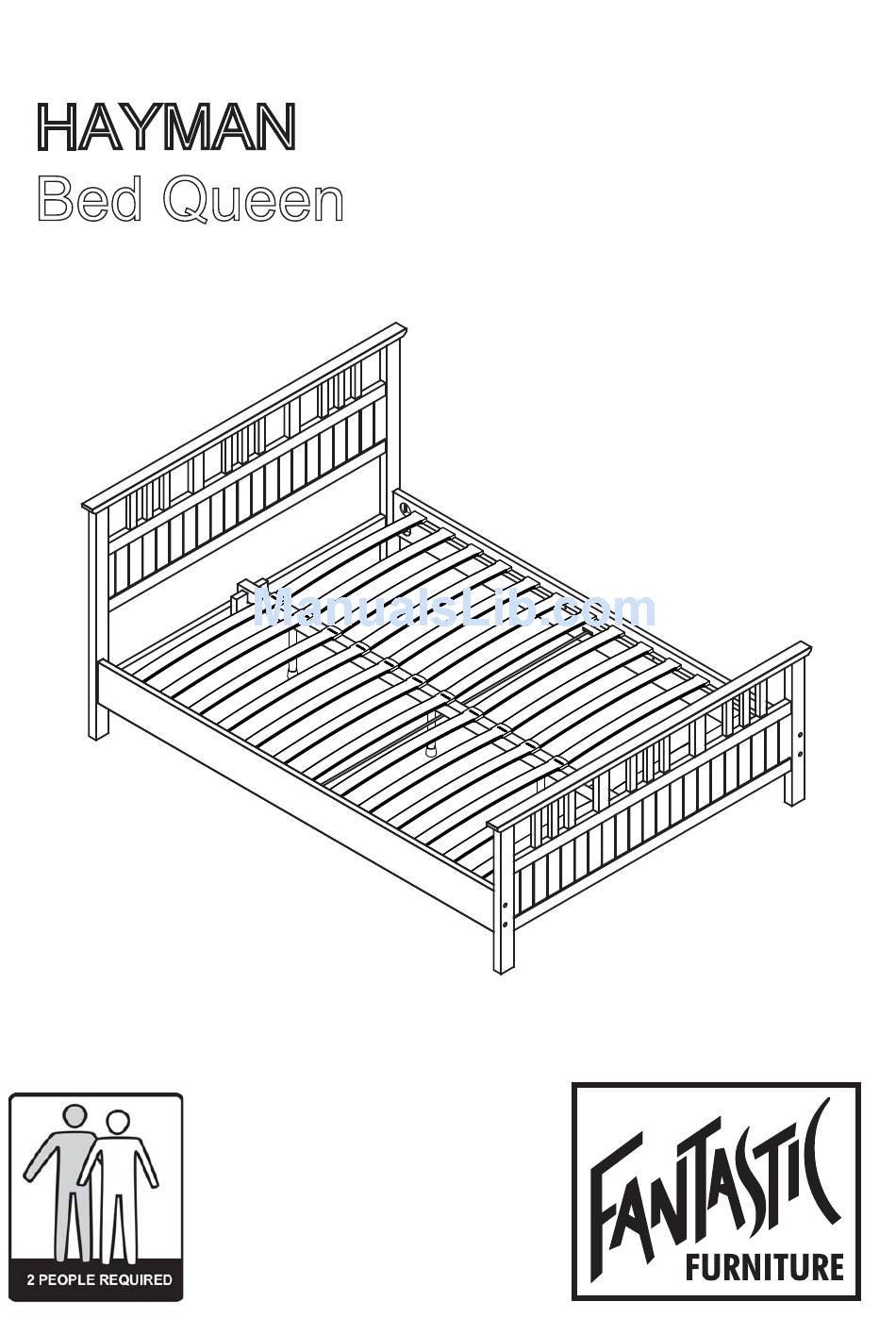

  • Page 1 Assembly Instructions HAYMAN Bed Queen VER 1.1...
  • Page 3 Support Side Rail (P5) (P2) Bedfoot (P3) 28 x End Connectors 14 x Centre Connectors 28 x Fantastic Furniture ComfortSlats Queen 8 x Inside 8 x Half Round 4 x Washers 4 x Small Screws 1 x Allen Key Hexagonal...
  • Page 4 Step 1 You will need: 3 x Long Bolts (H11) 1 x Allen Key (Medium) (P4) (H6) (P5) (P5) (P5) Attach 3 x Support Legs (P5) to Central Rail (P4) with 3 x Long Bolts (H11) using Allen Key (H6). Make sure the side with smaller holes of the Step 2 supporter (P7) is facing the Bedhead (P1).
  • Page 5 Make sure the side with smaller holes of the Step 3 supporter (P6) is facing the Bedfoot (P3). You will need: 3 x Long Screws (H10) (P3) (P6) Attach Supporter (P6) to Bedfoot (P3) with 3 x Long Screws (H10). Step 4 You will need: 4 x Inside...
  • Page 6 Step 5 You will need: 4 x Inside Hexagonal Bolts (H1) 4 x Half Round Nuts (P2) (H2) (P3) 4 x Hexagonal Nuts (H4) 1 x Allen Key (Large) (H12) 1 x Spanner (H7) (P2) Push 4 x Inside Hexagonal Bolts (H1) through Bedfoot (P3) and attach with Side Rails (P2) with 4 x Half Round Nuts (H2), and 4 x Hexagonal Nuts (H4) using Spanner (H7).
  • Page 7 28 x Fantastic Furniture ComfortSlats Queen 14 x Centre Connectors Push 2 End Connectors, 2 Fantastic Furniture ComfortSlats Queen and a Centre Connector together. Insert the full slat into the side rail and centre rail one by one. Page 7...
  • Page 8 Sometimes it makes it easier to line up the hole if you press down in the middle of the slat to flatten it out. Repeat for every bed slat until finished. The job is now complete! In the interest of our environment Please dispose of all packaging thoughtfully.
