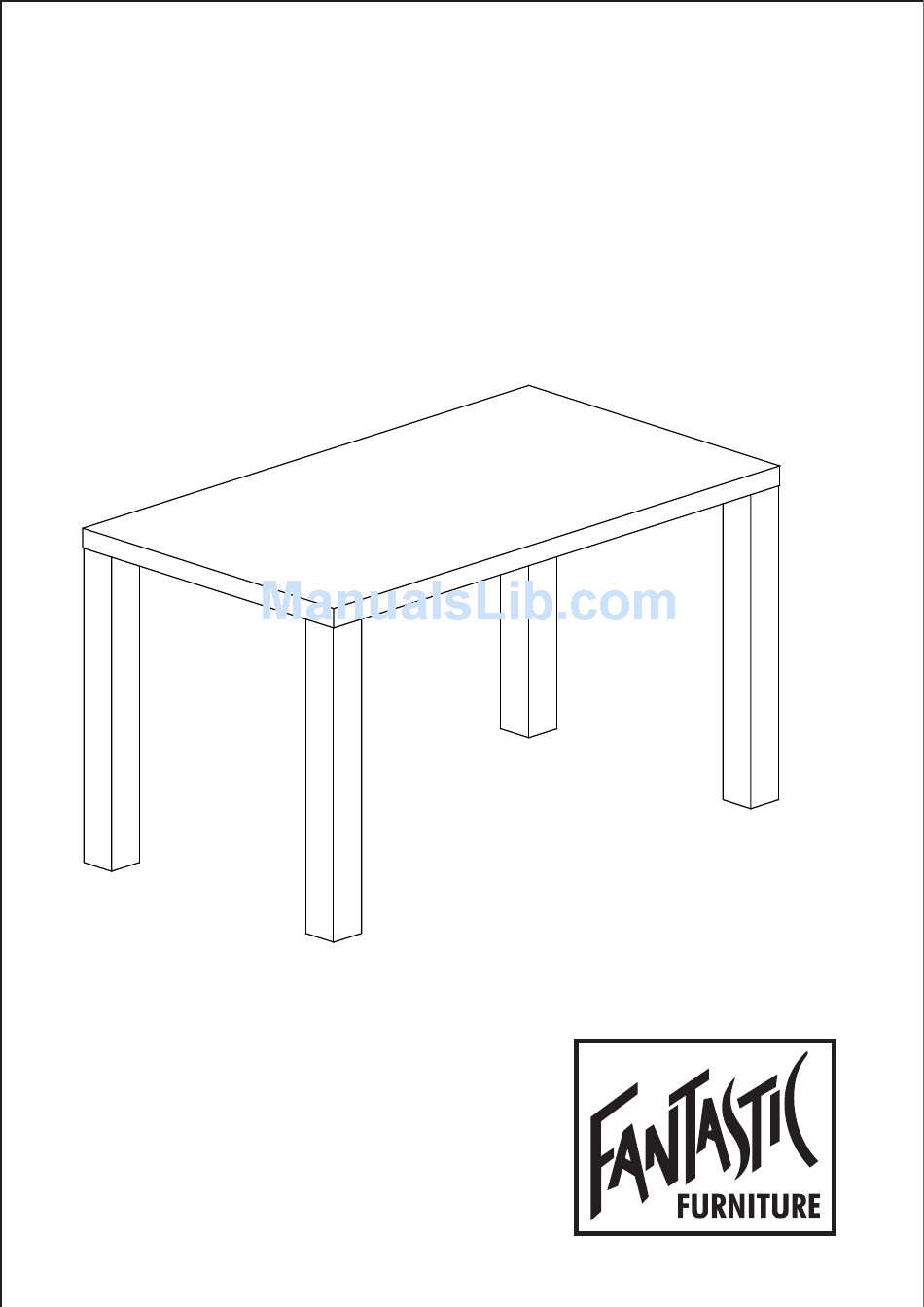

- Page 1 Assembly Instructions VOGUE Dining Table...
- Page 2 STOP! Before you start... Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Separate and identify each component from the Carefully identify each component, especially hardware pack and rest each one in its proper those that are similar.
-
Page 3: What You Need
What you Need To Assemble the Body (Tools not provided) Flat BladeScrewdriver Phillips Head Screwdriver Mallet Page 3... - Page 4 Step 1 Step 2 You will need: Page 4...
- Page 5 Step 3 You will need: Step 4 You will need: Page 5...
- Page 6 Step 5 The job is now complete! In the interest of our environment Please dispose of all packaging thoughtfully. Page 6...
- Page 7 Assembly Instructions DALTON Dining Chair...
- Page 9 What You Need 2 x FRONT LEGS 2 x SHORT IRON 1 x BACK FRAME 1 x SEAT FRAME (P3) (H1) (P2) (P1) Spanner 2 x LONG IRON 4 x LONG BOLTS 6 x SHORT BOLTS 2 x Washers (H2) (H3) (H4) (H5)
- Page 10 Step 2 You will need: 2 x Short Irons (H2) 4 x Short Bolts (H4) 2 x Washers (H5) 2 x Short Bolts (H3) (P2) (P1) Rest seat frame(P2) to back frame(P1) to attach bollts. Step 2a You will need: 2 x LONG Iron s (H2) 4 x LONG Bolts...
- Page 11 Step 2b You will need: 2 x Washers (H5) 2 x Short Bolts (H3) Insert short bolts(H3) and washers(H5) and hand tighten to 80%. Step 3 You will need: Spanner (Tools not provided) (P1) (P2) Level chair to sit on a flat surface,then fully tighten bolts from Step2 a,b. The job is now complete! In the interest of our environment Please dispose of all packaging thoughtfully...
