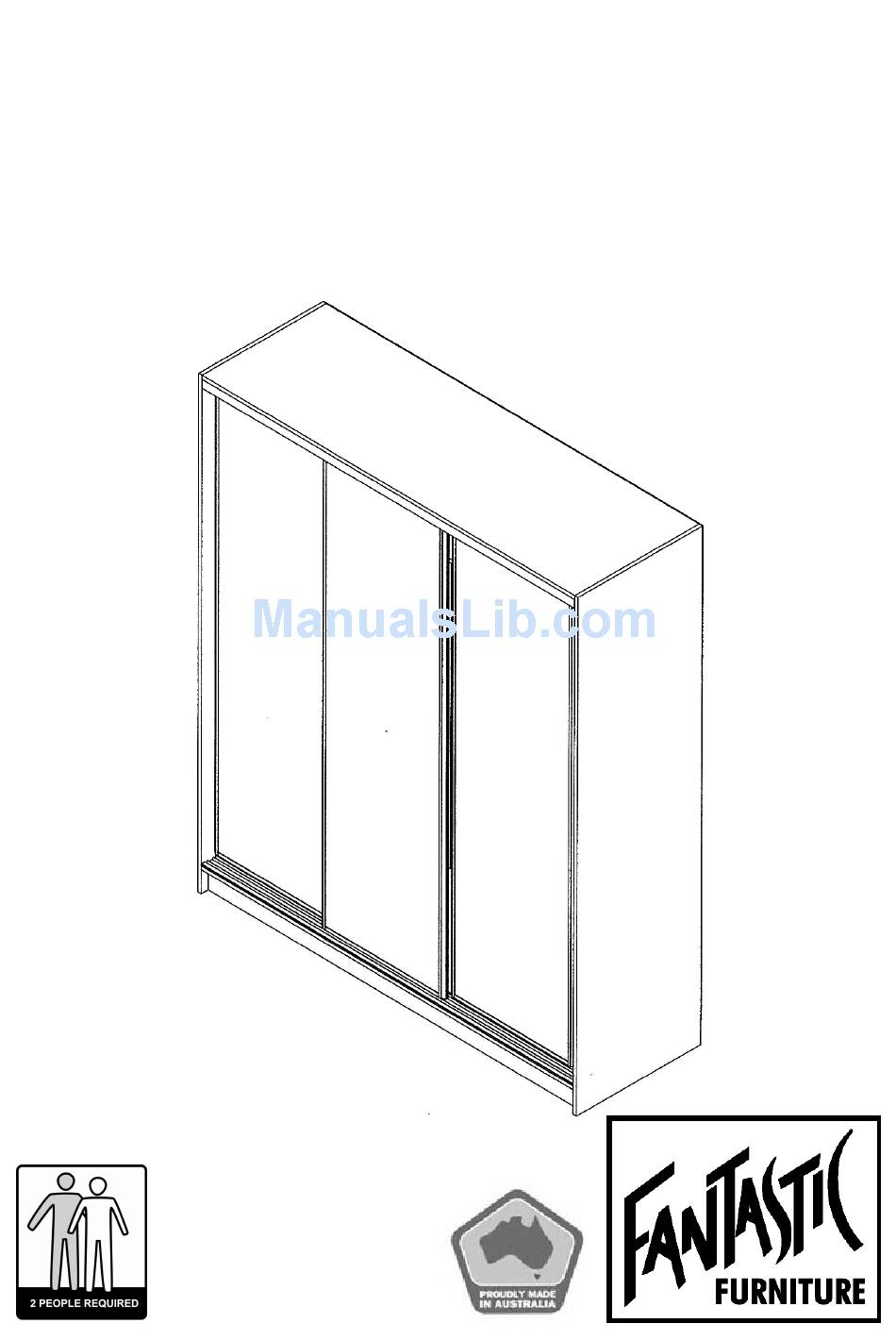

- Page 1 Assembly Instructions HOME ROBE 3 Door 1800mm...
- Page 2 It is recommended the wardrobe is assembled in the room that it is intended for. (CLEAR FLOOR SPACE IN ROOM IF REQUIRED)
- Page 3 Hammer 2 x 28MM NIB SCREW 3 x Hanging Rails 3 x BAGS OF NAILS 2 x T Z FITTING 20 X CONFIRMAT SCREW CAPS 28 x CONFIRMAT SCREWS 2 x Wall Fixing Brackets 8 x 5/8 PAN HEAD SCREWS 6 x Hanging Rail Brackets 6 x 1/2 6g C/S SCREWS Page 3...
- Page 4 STEP 1 Towards top edge TZ Fitting Knock into Parts 1 INSERT TZ FITTINGS INTO PARTS 1 IN HOLES PROVIDED, AS SHOWN INSERT THE PANELS ONTO PART 4 AS SHOWN IN PICTURE Page 4...
- Page 5 STEP 2 CONFIRMAT SCREWS THROUGH PART 7 USING THE HOLES PROVIDED INTO PARTS 6 MAKE SURE THE EDGED SIDE OF 8 IS FACING THE FRONT INSERT THE PANELS 6 & 8 BETWEEN PARTS 3, 7 & 9 AS SHOWN IN PICTURE. NOTE: BEFORE FIXING DIVISION (8) TO PANELS 7 &...
- Page 6 STEP 3 CONFIRMAT SCREW & CAP 28MM NIB SCREW THROUGH TZ FITTING INTO PART 3 INSERT THE GABLE (5) INTO THE GUIDE HOLES OF PANEL 3, 7 & 9 TO COMPLETE THE MAIN CARCASS. INSERT ALL CONFIRMAT SCREWS AND CAPS INTO THE CARCASS USING THE HOLES PROVIDED.
- Page 7 STEP 4 MAKE SURE THE UNIT IS SQUARE WHEN NAILING BACK PANELS USING THE BAGS OF NAILS, NAIL ON THE BACK PANELS TO THE MAIN CARCASS, MAKING SURE TO NAIL CLOSE TO THE EDGES SO THE NAIL GOES INTO THE PARTICLE BOARD BEHIND IT. Page 7...
- Page 8 STEP 5 USING THE GUIDE HOLES PROVIDED IN PANELS 4,5 & 6 INSERT THE HANGING RAIL BRACKETS AND SCREW IN BRACKETS WITH 1/2 6g C/S SCREWS AT THE TOP OF THE UNIT AND IN TURN INSERT THE HANGING RAIL INTO THESE BRACKETS YOUR CARCASS IS NOW COMPLETE In the interest of our environment Please dispose of all packaging thoughtfully.
-
Page 9: Door Assembly
DOOR ASSEMBLY Philips Head Screwdriver (Not Supplied) TOP TRACK 8 x 5/8 PAN HEAD SCREWS SLIDING DOOR BOTTOM TRACK Page 9... -
Page 10: Base Panel
STEP 6 TOP TRACK BOTTOM TRACK USING THE 5/8 PAN HEAD SCREWS PROVIDED, SCREW IN THE TOP AND BOTTOM TRACK, USING THE HOLES PROVIDED IN THE TRACK. MAKE SURE THAT THE FRONT EDGE OF THE WARDROBE AND THE FRONT EDGE OF THE TRACK LINE UP (AS SHOWN). BASE PANEL Page 10... - Page 11 STEP 7 TO FIT THE DOORS INTO THE UNIT HOLD THE ASSEMBLED DOOR BY THE SIDES AND LINE UP THE TOP INTO THE BACK GROVE OF THE TOP TRACK. THEN CONTINUE TO INSERT THE DOOR INTO THE BOTTOM TRACK, MAKING SURE THE WHEELS ON THE DOOR SLIDE INTO THE BACK GROVE OF THE BOTTOM TRACK (AS SHOWN IN PICTURE) THE WHEELS ON THE BOTTOM OF THE DOOR MUST BOTH GO INTO THIS SLOT...
- Page 12 STEP 8 TO FIT THE DOORS INTO THE UNIT HOLD THE ASSEMBLED DOOR BY THE SIDES AND LINE UP THE TOP INTO THE FRONT GROVE OF THE TOP TRACK. THEN CONTINUE TO INSERT THE DOOR INTO THE BOTTOM TRACK, MAKING SURE THE WHEELS ON THE DOOR SLIDE INTO THE FRONT GROVE OF THE BOTTOM TRACK (AS SHOWN IN PICTURE) THE WHEELS ON THE BOTTOM OF THE DOOR MUST BOTH GO INTO THIS SLOT...
- Page 13 STEP 9 IF YOU NEED TO ADJUST THE DOORS VIEW OF BACK OF DOOR ADJUSTABLE SCREWS BOTTOM DOOR ROLLERS IF YOUR DOORS DO NOT SIT FLUSH AGAINST THE SIDE OF THE WARDROBE YOU WILL NEED TO ADJUST THE DOORS. USING A PHILLIPS HEAD SCREW DRIVER, SCREW FROM THE BACK THE ADJUSTABLE SCREW UP OR DOWN TO SQUARE UP THE DOOR Page 13...
- Page 14 YOUR UNIT IS NOW COMPLETE In the interest of our environment Please dispose of all packaging thoughtfully. CAUTION We recommend all units to be screwed to the wall using the wall · brackets supplied. Consult your hardware specialist for which fastener is recommended. Page 14...
