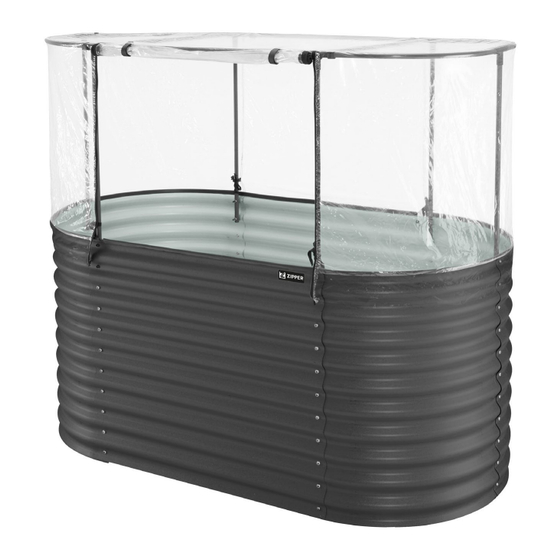

- Page 1 BETRIEBSANLEITUNG HOCHBEET MIT ABDECKUNG Übersetzung / Translation USER MANUAL RAISED GARDEN BED WITH COVER ZI-BGWH150 EAN: 9120039234632 Edition: 27.10.2021 – Revision 00 – TrT – DE/EN...
-
Page 2: Sicherheitszeichen / Safety Signs
Persönliche Schutzausrütung Sicherheitshandschuhe für die Mon- tage tragen Wear personal-safety equipment safety gloves for assmebling TECHNIK / TECHNICS Lieferumfang / delivery content ZI-BGWH150 Grundrahmen / base frame Qty. Qty. Aufsatz / top cover Qty. -
Page 3: Technische Daten / Technical Data
PRODUKTSICHERHEITSHINWEISE /PRODUCT SAFETY INFORMATION Technische Daten / technical data ZI-BGWH150 Beet-material / 0,6 mm verzinktes Stahlblech / bed material 0,6 mm galvernised steel sheet Farbe / RAL 7016 color-code Rahmenmaterial Aufsatz / verzinkter Stahl / galvernised steel frame-material top Folien/Plattenmaterial /... -
Page 4: Montage / Assembly
Verbinden sie die Seitenelemente (P1, P3) wie abebildet mit den Schrauben/Scheiben/Muttern (F1). HINWEIS: Die beiden oberen Bohrungen frei lassen. (EN) Assembly of side panels Connect the side panels (P1, P3) with the screws/washers/nuts (F1) as shown above. NOTE: Always leave the upper two bore holes free. ZIPPER MASCHINEN GmbH www.zipper-maschinen.at ZI-BGWH150... - Page 5 2. As illustrated above, insert the struts (2, 3, and 4) into the connectors (S1). Connect the curved struts (3) with a T-shaped connector (S2). Now place the connections (S1, 2) onto the struts (1). ZIPPER MASCHINEN GmbH www.zipper-maschinen.at ZI-BGWH150...
-
Page 6: Betrieb / Operation
Lift/set down load with knees bent and back straight. • • Do not lift/set down load jerkily. Carry • Carry load with both hands as close to body as possible. • Carry load with straight back. ZIPPER MASCHINEN GmbH www.zipper-maschinen.at ZI-BGWH150... -
Page 7: Reinigung / Cleaning
If you buy a new machine or an equivalent device from your specialist dealer, he is obliged in certain countries to dispose of your old machine properly. ZIPPER MASCHINEN GmbH www.zipper-maschinen.at ZI-BGWH150... -
Page 8: Product Monitoring
V i e l e n D a n k f ü r I h r e M i t a r b e i t ! / T h a n k y o u f o r y o u r k i n d c o o p e r a t i o ! Kontaktadresse / Contact address Z.I.P.P.E.R MASCHINEN GmbH AUSTRIA • 4707 Schlüsslberg • Gewerbepark 8 Tel +43 7248 61116 – 700 info@zipper-maschinen.at ZIPPER MASCHINEN GmbH www.zipper-maschinen.at ZI-BGWH150...
