- Page 1 PSDC 08128 v.1.2 PSDC 12V/8A/8x1A Power supply for up to 8 analog cameras PTC/TOPIC. EN** Edition: 10 from 17.10.2016 Supersedes the edition: 9 from 25.05.2015...
-
Page 2: Table Of Contents
PSDC08128 Features: 8x1A/12V DC power output for powering FPS technical output of fuse activation 8 analog cameras indication output voltage adjustment 12V÷15V DC protections: SCP short-circuit protection 8 outputs protected with 1A fuses ... -
Page 3: Technical Description

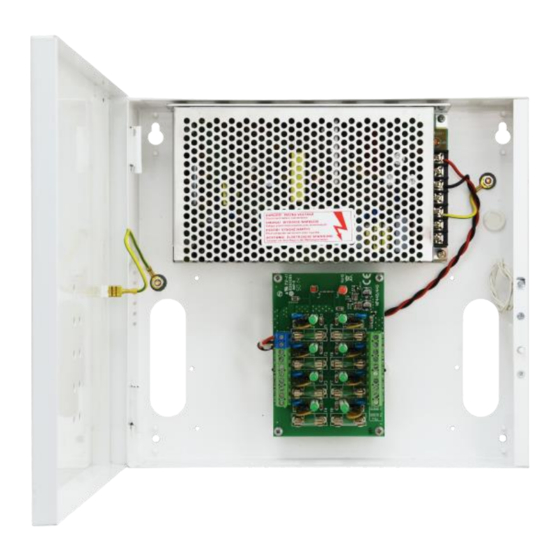

PSDC08128 1. Technical description. 1.1 General description. The PSDC08128 stabilized power supply is designed to supply analog cameras or other devices requiring stabilized voltage of 12V DC. The output voltage adjustment range is adjusted via a potentiometer within the range of 12V÷15V DC. - Page 4 PSDC08128 Fig. 2. The view of the PSU’s pcb. Table 2. Elements of the PSU (see fig. 3). Element no. Description L-N 230V AC power connectors, PE protection connector LED indication of DC power status, main module of the PSU PSU module , potentiometer, output voltage adjustment within the range of 12V÷15V DC...
-
Page 5: Specifications
PSDC08128 1.4. Specifications: - electrical specifications (tab.3) - mechanical specifications (tab.4) - operation safety (tab.5) - operating specifications (tab.6) Electrical specifications (tab. 3). 176 ÷ 264V AC Supply voltage Current consumption 0,9A@230VAC max. PSU power 120W max. Efficiency Output voltage... -
Page 6: Installation
PSDC08128 2. Installation. 2.1 Requirements. The stabilized PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V/AC interference and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +50°C. -
Page 7: Technical Outputs
PSDC08128 Fig. 4 The view of the PSU panel. 3.2 Technical outputs. The PSU has indication outputs that allow transferring information about a failure or tampering. FPS - output indicating a fuse failure (outputs of the LB8/AW fuse strip).
