Skope TME ActiveCore Service Manual

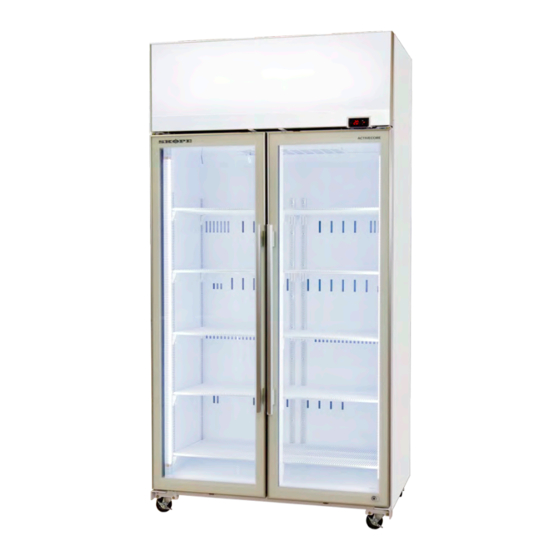

Top mount vertical fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TME/SKT ActiveCore
SKOPE Top Mount Vertical Fridge

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TME ActiveCore and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skope TME ActiveCore

Summary of Contents for Skope TME ActiveCore

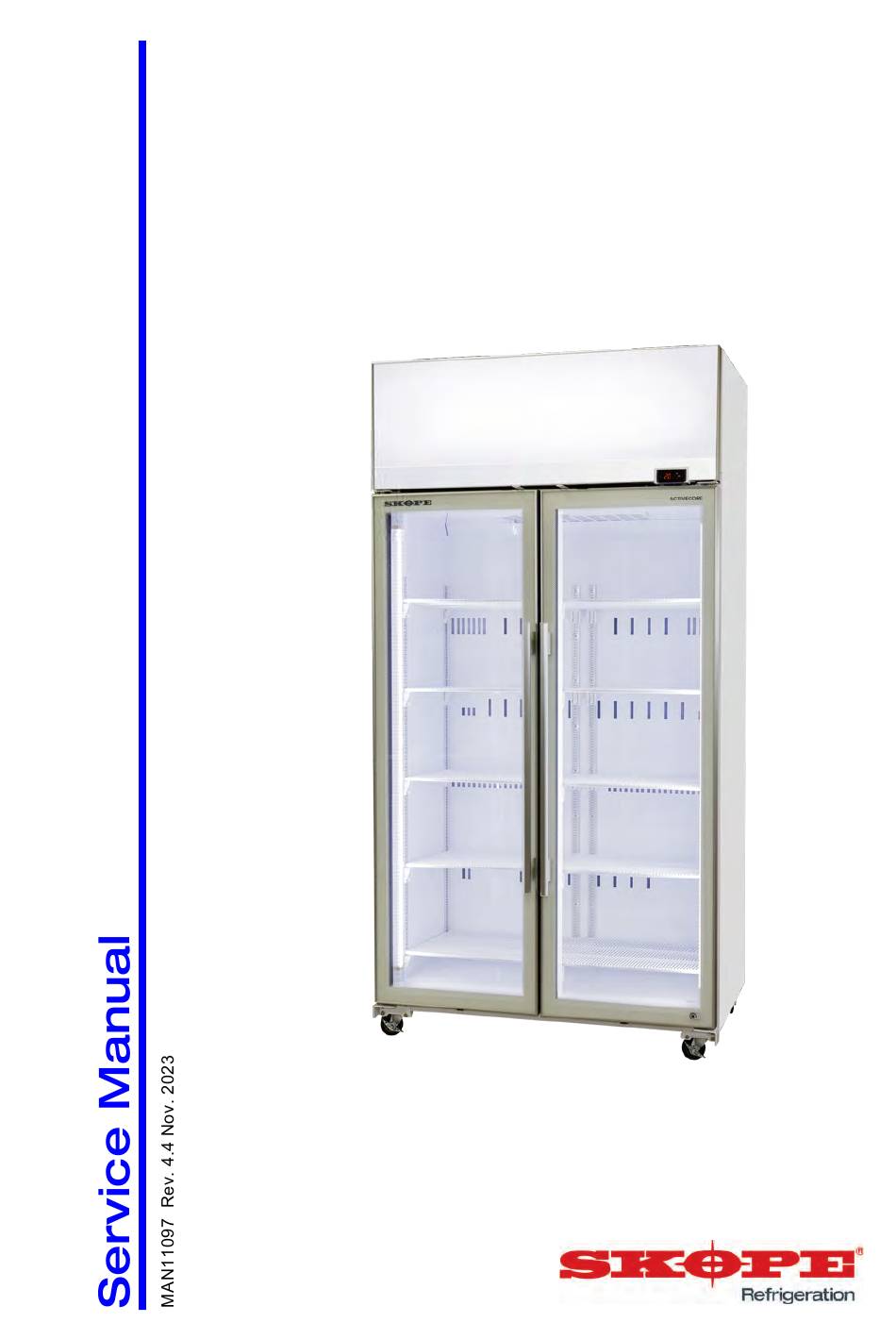

  • Page 1 TME/SKT ActiveCore SKOPE Top Mount Vertical Fridge...
  • Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner.

  • Page 3: Table Of Contents

    Reversing the Hinges ........29 SKOPE TME/SKT ActiveCore...
  • Page 4 Cabinet and Refrigeration Unit ....... .71 SKOPE TME/SKT ActiveCore Service Manual...

  • Page 5: Specifications

    SKOPE TME/SKT ActiveCore 1 Specifications Models This service manual is applicable to the SKOPE TME and SKT ActiveCore top mount fridges listed in the table below. Refer to the relevant product specification sheet (available on the SKOPE website: www.skope.com) for specifications.

  • Page 6: Installation

    SKOPE TME/SKT ActiveCore 2 Installation Positioning the Cabinet Climate Class The fridge is designed to operate within a climate class 5 environment (40°C @ 40% relative humidity). We recommend that you put the fridge in the coolest place possible because it will use less power and last longer.

  • Page 7: Door Handles

    SKOPE TME/SKT ActiveCore Door Handles Fitting Door For transit purposes door handles may be packed separately inside the cabinet. If the door handle/s are packed separately, follow the procedure below. Handles Procedure 1: To fit a door handle 1. Remove the handle/s from inside the cabinet by carefully cutting the cable ties securing the handle, and remove the packaging.

  • Page 8: Shelves

    SKOPE TME/SKT ActiveCore Procedure 2: To remove a door handle 1. Open the door, and peel back the door gasket from behind the handle mounts on the inside of the door frame. 2. Unscrew the handle mounts through the holes on the inside of the door frame (top and bottom screws only), and remove the handle.

  • Page 9: Repositioning Shelves

    SKOPE TME/SKT ActiveCore Procedure 4: To slide a shelf clip up and down Shelf clip 1. Pull the shelf clip tab up and slide the shelf clip up or down as required. Once in position, ensure the shelf clip is locked into place.
  • Page 10 SKOPE TME/SKT ActiveCore Procedure 7: To lower the top shelf light and ticket strip 1. Isolate the fridge from the power supply (see “Replacement Procedures” on page 23). 2. Unclip the shelf light assembly from the front of the shelf.

  • Page 11: Electronic Controller

    To ensure efficient operation, the electronic controller automatically forces a defrost cycle when required. The electronic controller is pre-programmed. SKOPE does not recommend that settings be changed unless it is absolutely necessary. Faceplate Because the electronic controller plays such an important role, it’s helpful to know the parts of the faceplate you may use.

  • Page 12: Running The Fridge

    SKOPE TME/SKT ActiveCore Table 2: Controller faceplate No. Item Description Digital display of cabinet temperature or messages. The temperature is what the sensor inside the fridge detects, and not necessarily the product temperature. However, they may be very close depending on how the controller is set to sense temperature.

  • Page 13: Temperature Probes

    SKOPE TME/SKT ActiveCore The evaporator fan starts approximately 3 seconds (parameter F0) after the compressor and condenser fan. To verify, check that the FAN light is lit on the electronic controller. Temperature Two temperature probes feed data to the electronic controller: the control probe and the evaporator probe.

  • Page 14: Downward Tendency Protection

    SKOPE TME/SKT ActiveCore Table 4: Alarms Display Description Refrigeration system error. An alarm sounds. The controller turns the fridge off to avoid damage. Investigate fault with refrigeration system. Control probe fault. An alarm sounds. Evaporator probe fault. An alarm sounds.

  • Page 15: Hardware Setup

    Compressor/fans (2, 4, 5) Lights (1) Programming the Electronic Controller The electronic controller parameter configuration program is set by SKOPE at the factory. A label on the controller box indicates the parameter configuration program number (e.g. the ActiveCore Series use program ‘081’).

  • Page 16: Normal And Energy Saving Modes

    Setpoint and 15°C for other specialist applications if required (see below). SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. Procedure 9: To view and adjust the temperature setpoint 1.

  • Page 17: Parameters

    SKOPE TME/SKT ActiveCore Parameters Follow the steps below to access the locked parameters. Procedure 10: To access the locked parameters 1. Press and hold the Set (mute) button for 5 seconds until the display shows ‘PS’. 2. Press the Set (mute) button to access the password parameter, ‘0’ is displayed.
  • Page 18 1. Only make program modifications with reference to relevant Operating Manual. 2. This parameter sheet is exclusively for SKOPE refrigeration systems with its dedicated Carel controller. 3. Any alteration from this program may adversely affect the SKOPE Refrigeration System operation.
  • Page 19 SKOPE TME/SKT ActiveCore Parameter list – Program 101: ActiveCore Series S4 EVO (continued over page) Electronic Controller Parameter Sheet Revision: Full List ActiveCore Top & Bottom Mount Application SKOPE S4 EVO Controller Type SET0 PZSKC0H002K (Rev 1.414) Controller Model & Revision...
  • Page 20 1. Only make program modifications with reference to relevant Operating Manual. 2. This programming sheet is exclusively for SKOPE refrigeration systems with its dedicated Carel controller. 3. Any alteration from this program may adversely affect the SKOPE Refrigeration System operation.
  • Page 21 SKOPE TME/SKT ActiveCore Parameter list – Program 105: ActiveCore Series Solid Door S4 EVO (continued over page) Electronic Controller Parameter Sheet Revision: Full List ActiveCore Top & Bottom Mount (Solid Door) Application SKOPE S4 EVO Controller Type SET0 PZSKC0H002K (Rev 1.414) Controller Model &...
  • Page 22 1. Only make program modifications with reference to relevant Operating Manual. 2. This programming sheet is exclusively for SKOPE refrigeration systems with its dedicated Carel controller. 3. Any alteration from this program may adversely affect the SKOPE Refrigeration System operation.

  • Page 23: Replacement Procedures

    SKOPE TME/SKT ActiveCore 4 Replacement Procedures Lighting Depending on the model, the cabinet may be fitted with an LED tube sign light, LED tube interior side light/s, LED modular interior side lights, or LED modular shelf lights. See the table below for light tube specifications. Before replacing a light, determine the light specification and part number, and replace with the same light type.

  • Page 24: Modular Lighting

    SKOPE TME/SKT ActiveCore Procedure 11: To replace an LED tube side light 1. Isolate the fridge from the power supply. Diffuser 2. Remove the diffuser by squeezing it until it is released from the aluminium housing, and then push the diffuser out of the way.
  • Page 25 SKOPE TME/SKT ActiveCore Table 8: Modular lighting fault diagnostics (continued) Problem Possible cause Repair Check and clean plug connection in side Plug not connected properly. light channel, behind the loom cover. Modular light component not working. Faulty modular lighting Replace faulty modular lighting component.

  • Page 26: Sign Light

    SKOPE TME/SKT ActiveCore Procedure 13: To replace an LED modular side light component (continued) Once clipped in place, the plastic casing should line up with the front face of the cabinet opening, providing a neat finish. 6. Screw the assembly into place with the three fixing screws.

  • Page 27: Doors

    SKOPE TME/SKT ActiveCore Procedure 16: To replace the sign light (continued) 4. To provide adequate space for tube removal, undo and remove the middle locating screw and loosen the two outside slot screws to lower the top reflector (with LED tube).

  • Page 28: Replacing The Gasket

    SKOPE TME/SKT ActiveCore Replacing the The one-piece door gasket clips into the door frame and runs around the perimeter of the door. Remove the gasket by peeling it from the door frame, starting at a corner. Gasket If the gasket is out of shape after refitting, use a hair dryer to heat and reshape it.

  • Page 29: Replacing The Torsion Bar

    SKOPE TME/SKT ActiveCore Procedure 21: To adjust the door tension 1. Remove the split pin from the capstan at the bottom hinge. 2. Remove the tension bracket from the bottom hinge. 3. Use a tool to apply tension to the door via the...
  • Page 30 13. Remove all labels from the door, and clean off any adhesive left by the labels. 14. Refit the door (see page 28). 15. Apply the SKOPE logo label to the top left hand corner of the door. Use the label backing to align the label as pictured.

  • Page 31: Refrigeration Unit

    SKOPE TME/SKT ActiveCore Refrigeration Unit Refrigeration The SKOPE ActiveCore refrigeration unit is an electronically controlled removable unit.For servicing or transportation, the refrigeration unit unplugs and lifts off the TME cabinet. Some Unit Assembly minor servicing can be performed without removing the refrigeration unit.

  • Page 32: Activecore Remote

    SKOPE TME/SKT ActiveCore ActiveCore Refer to the SKOPE ActiveCore Remote Specification instruction sheet (PRN80029) and Remote Guidelines for SKOPE Remote Refrigeration instruction sheet (PRN2362) for information. Unit cover Unit rating/serial number label Compressor Refrigeration unit front view Condenser coil Compressor...
  • Page 33 SKOPE TME/SKT ActiveCore Procedure 24: To diagnose a problem 1. Do NOT initially fit system gauges. 2. Is the refrigeration system simply overloaded? Interview fridge owner to determine if there has been any high heat loads. Visually check entire cabinet body, and seals for any air leakage. Check product temperatures are in fact warm.

  • Page 34: Removing The Unit

    SKOPE TME/SKT ActiveCore Short of refrigerant SKOPE recommends leak detection using high pressure dry nitrogen with pressure testing and soap bubbles. Ensure all refrigerant is reclaimed from the system before introducing nitrogen. Do not mix refrigerant and nitrogen to detect leaks.

  • Page 35: Replacing The Unit

    New spare part refrigeration units supplied by SKOPE are not supplied with the evaporator tub lid, top strap brackets and hold down brackets. When replacing a faulty top mount refrigeration unit, retain these parts for use on the new spare part replacement unit.

  • Page 36: Unit Electrics Box Assembly

    Hold down bracket Procedure 27: To replace a unit with a SKOPE supplied spare part refrigeration unit 1. Isolate the fridge from the power supply and remove the existing unit (see page 34). 2. On the new unit, push the bottom plugs out of the bottom of the evaporator box.

  • Page 37: Unit Cover

    SKOPE TME/SKT ActiveCore Procedure 28: To remove and open the unit electrics box assembly 1. Isolate the fridge from the power supply. 2. If present, unclip the electronic controller from the top of the electrics box. 3. Undo the two fixing screws at the bottom of the electrics box cover, and remove the cover.

  • Page 38: Evaporator Fan

    SKOPE TME/SKT ActiveCore Procedure 30: To access the condenser fan assembly 1. Isolate the fridge from the power supply and remove the refrigeration unit (see page 34). 2. Remove the unit cover (see page 37). 3. Open the electrics box and unplug the condenser fan motor plug (see page 35).
  • Page 39 SKOPE TME/SKT ActiveCore The fan motor and fan blade are fixed to the evaporator shroud via the brackets. The shroud (complete with fan motor and fan blade) can be lifted off the evaporator tub once the refrigeration unit cover has been removed.

  • Page 40: Compressor

    SKOPE TME/SKT ActiveCore Procedure 35: To replace the fan motor (continued) 4. Attach to the replacement motor. • Ensure that the flexible cord points towards the bottom of the evaporator tub once reinstalled. • Take care to re-cable tie the fan and temperature probe flexible cords back onto the mounting bracket to prevent high frequency vibration.

  • Page 41: Compressor Electrics

    SKOPE TME/SKT ActiveCore Compressor The compressor electrics are located on the front of the compressor (see image below). Electrics To access the compressor electrics, remove the refrigeration unit (see page 34) and unit cover (see page 37). The capacitor unclips from the relay cover, and the relay cover unclips from the compressor.

  • Page 42: Electronic Controller

    SKOPE TME/SKT ActiveCore Electronic Controller Electronic The electronic controller is located within the electronic controller box assembly. Controller Location Procedure 37: To access the controller 1. Isolate the fridge from the power supply. 2. Open the electronic controller box assembly by undoing the two fixing screws at the rear of the assembly.

  • Page 43: Control Probe

    SKOPE TME/SKT ActiveCore Control Probe The control probe is cable tied to a bracket on the evaporator fan motor bracket. Procedure 39: To replace the control probe 1. Remove the evaporator fan assembly (see page 38). 2. Detach the probe from the evaporator fan shroud bracket and trace the probe cable back to the unit electrics box and unplug (see page 35).

  • Page 44: Maintenance

    SKOPE TME/SKT ActiveCore 5 Maintenance Cleaning Cabinet Wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. As with any maintenance, ensure the fridge is unplugged from the power supply before cleaning.

  • Page 45: Wiring

    SKOPE TME/SKT ActiveCore 6 Wiring Model: TME650 Series Isolation GNYE Switch S1-L P1-L P1-N S1-N EMC Filter T1-2 T1-1 T1-5 Pressure Switch S15-1 P15-1 P15-2 S15-2 Compressor Start T1-3 S5-2 P5-2 Overload Carel Relay Smart Controller S5-1 P5-1 S2-4 P2-4...

  • Page 46: Model: Tme1000 Series

    SKOPE TME/SKT ActiveCore Model: TME1000 Series GNYE S1-L P1-L P1-N S1-N EMC Filter T1-2 T1-1 T1-5 Pressure Switch S15-1 P15-1 P15-2 S15-2 Compressor Start T1-3 S5-2 P5-2 Carel Overload Relay Smart Controller S5-1 P5-1 S2-4 P2-4 P2-1 S2-1 Compressor Comp.

  • Page 47: Model: Skt650 Series

    SKOPE TME/SKT ActiveCore Model: SKT650 Series Isolation GNYE Switch S1-L P1-L P1-N S1-N EMC Filter T1-2 T1-1 T1-5 Pressure Switch S15-1 P15-1 P15-2 S15-2 Compressor Start T1-3 S5-2 P5-2 Overload Carel Relay Smart Controller S5-1 P5-1 S2-4 P2-4 P2-1 S2-1 Compressor Comp.

  • Page 48: Model: Skt1000 Series

    SKOPE TME/SKT ActiveCore Model: SKT1000 Series GNYE S1-L P1-L P1-N S1-N EMC Filter T1-2 T1-1 T1-5 Pressure Switch S15-1 P15-1 P15-2 S15-2 Compressor Start T1-3 S5-2 P5-2 Overload Carel Relay Smart Controller S5-1 P5-1 S2-4 P2-4 P2-1 S2-1 Compressor Comp.

  • Page 49: Model: Tme1500 Series And Skt1500 Series

    SKOPE TME/SKT ActiveCore Model: TME1500 Series and SKT1500 Series G NY E S 1-L P 1-L P 1-N S 1-N EM C F ilter T1 -2 T 1-1 T1 -5 P ressu re S witch S 15-1 P 15-1 P 1 5-2 S 1 5-2...

  • Page 50: Spare Parts

    SKOPE TME/SKT ActiveCore 7 Spare Parts Cabinet Assembly TME650 Series, SKT650 Series – Cabinet Assembly 16 * Spare Parts Service Manual...
  • Page 51 Check the part colour before ordering. If the colour differs from the list above, state the specific colour when ordering. * If key lock/s are fitted, please contact SKOPE for part number. ** When ordered as a spare part, the refrigeration unit does not include evaporator box lid, top metal strap brackets, or hold down brackets.

  • Page 52: Tme1000 Series, Skt1000 Series - Cabinet Assembly

    SKOPE TME/SKT ActiveCore TME1000 Series, SKT1000 Series – Cabinet Assembly 20 * 11 12 Table 14: Parts – Cabinet assembly: TME1000 series, SKT1000 series Part No. Description Unpainted/standard Colour: White Colour: Black Shelf clip – HB0070205867 PLM10903BK Shelf support strip HB0070110331 –...
  • Page 53 Check the part colour before ordering. If the colour differs from the list above, state the specific colour when ordering. * If key lock/s are fitted, contact SKOPE for the part number. ** When ordered as a spare part, the refrigeration unit does not include evaporator box lid, top metal strap brackets, or hold down brackets.

  • Page 54: Tme1500 Series, Skt1500 Series - Cabinet Assembly

    SKOPE TME/SKT ActiveCore TME1500 Series, SKT1500 Series – Cabinet Assembly 28 * 14 16 Table 15: Parts – Cabinet assembly: TME1500 series, SKT1500 series SKOPE Part No. Description Unpainted/standard Colour: White Colour: Black Shelf clip – HB0070205867 PLM10903BK Shelf support strip HB0070110331 –...

  • Page 55: Door Assembly

    Check the part colour before ordering. If the colour differs from the list above, state the specific colour when ordering. * If key lock/s are fitted, please contact SKOPE for part number. ** When ordered as a spare part, the refrigeration unit does not include evaporator box lid, top metal strap brackets, or hold down brackets.

  • Page 56: Glass Door

    SKOPE TME/SKT ActiveCore Door Assembly Glass Door Spare Parts Service Manual...
  • Page 57 SKOPE TME/SKT ActiveCore Table 16: Parts – Glass door assembly TME650 series, SKT650 series SKOPE Part No. Description Unpainted/standard Colour: White Colour: Black Door assembly – right hand – HB0070824789 GLD11403RH-BK HAN11195/0844-AS (silver, for white Door handle – HAN11195/0844-49 door)

  • Page 58: Solid Door

    SKOPE TME/SKT ActiveCore Solid Door Spare Parts Service Manual...
  • Page 59 SKOPE TME/SKT ActiveCore Table 18: Parts – Solid door assembly SKT650S-A SKOPE Part No. Description Unpainted/standard Colour: White Colour: Black Door assembly – right hand MT65SZ/D40 MT65SZ/D40-32 MT65SZ/D40-49 Magnetic gasket GKT0432SK – – Bush PLM5075 – – Torsion bar REF5014 –...

  • Page 60: Lighting

    SKOPE TME/SKT ActiveCore Lighting Modular Light Assembly SKT650-ACX SKT1000-ACX SKT1500-ACX Spare Parts Service Manual...
  • Page 61 SKOPE TME/SKT ActiveCore Table 21: Parts – Shelf light assembly SKT650-ACX SKOPE Part No. Description Unpainted/standard Colour: White Colour: Black Shelf light module ELL11048 – – Ticket strip PLE11038-600 – – Light/ticket strip clip PLM11037 – – Side loom FLX11066 –...

  • Page 62: Side Light Assembly

    SKOPE TME/SKT ActiveCore Side Light Assembly LED module side LED tube side LED module pillar light assembly light assembly light assembly Table 24: Parts – LED tube side light assembly TME650/1000/1500 Series Description SKOPE Part No. Side light assembly – right hand HB0070825407 Side light assembly –...

  • Page 63: Lit Sign Assembly

    SKOPE TME/SKT ActiveCore Lit Sign Assembly Table 27: Parts – Lit sign assembly TME650-AC/ACX, SKT650-AC/ACX Description SKOPE Part No. Sign assembly (excluding LED tube) HB0070825410 Eco-Point 11 watt frosted T8 LED tube (Ø26 mm × 600 mm) ELL10741 Sign panel (transparent)

  • Page 64: Unit Assembly

    SKOPE TME/SKT ActiveCore Unit Assembly UTHCCI-0002 Spare Parts Service Manual...
  • Page 65 SKOPE TME/SKT ActiveCore Table 30: Parts – Unit assembly UTHCCI-0002 TME650/1000 series, SKT650/1000 series Description SKOPE Part No. Unit assembly* HB0070823484 Evaporator box HB0070510928A Evaporator box lid HB0070511356 Evaporator coil HB0070702232 Evaporator fan motor HB0074000512 Evaporator fan blade HB0074000313A Evaporator fan shroud...

  • Page 66: Uthcci-0004

    SKOPE TME/SKT ActiveCore UTHCCI-0004 Spare Parts Service Manual...
  • Page 67 SKOPE TME/SKT ActiveCore Table 31: Parts – Unit assembly UTHCCI-0004 TME1500 series, SKT1500 series Description SKOPE Part No. Unit assembly* HB0070826577 Evaporator box HB0070510928 Evaporator box lid HB0070511356 Evaporator coil HB0070702232A Evaporator fan motor HB0074000581 Evaporator fan blade HB0074000313A Evaporator fan shroud...

  • Page 68: Utsccr-0001 (Remote)

    SKOPE TME/SKT ActiveCore UTSCCR-0001 (Remote) Table 32: Parts – Unit assembly UTSCCR-0002 (remote) SKOPE Part No. Description Unpainted/standard Colour: White Colour: Black Unit assembly* UTSCCR-0001 – – Ventilation fan ELM10347 – – Tyco 2-way bridge ELZ11199-RD – – Evaporator tub HB0070510928A –...

  • Page 69: Unit Electrics Box Assembly

    SKOPE TME/SKT ActiveCore Unit Electrics Box Assembly Table 33: Parts – Unit electrics box assembly SKOPE Part No. Description Unpainted/standard Colour: White Colour: Black Unit electrics box assembly HB0070825230 – – Electronic controller assembly (inc. CAREL S4 HB0070825231 – –...

  • Page 70: Troubleshooting

    SKOPE TME/SKT ActiveCore 8 Troubleshooting Controller Alarms Alarms signal unexpected operational changes in the fridge. When an alarm is activated, use the following charts to assist with fault diagnosis and service as necessary. Table 34: Electronic controller alarms Alarm Possible cause Repair •...

  • Page 71: Cabinet And Refrigeration Unit

    SKOPE TME/SKT ActiveCore Cabinet and Refrigeration Unit For problems with the cabinet and refrigeration unit use the following table. Table 35: Cabinet and unit troubleshooting Problem Possible cause Repair • Cabinet not operating • Loss of power supply • Check mains power supply.
  • Page 72 SKOPE TME/SKT ActiveCore Table 35: Cabinet and unit troubleshooting (continued) Problem Possible cause Repair • Moisture build up on • High humidity. • Check ambient operating temperature and reposition fridge door or exterior. if necessary. • Frequent door opening. •...
  • Page 73 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...

This manual is also suitable for:
