U-Reach CF121 User Manual

Cf 1-1 portable copier
Hide thumbs Also See for CF121:
Table of Contents

Advertisement

Quick Links

Download this manual

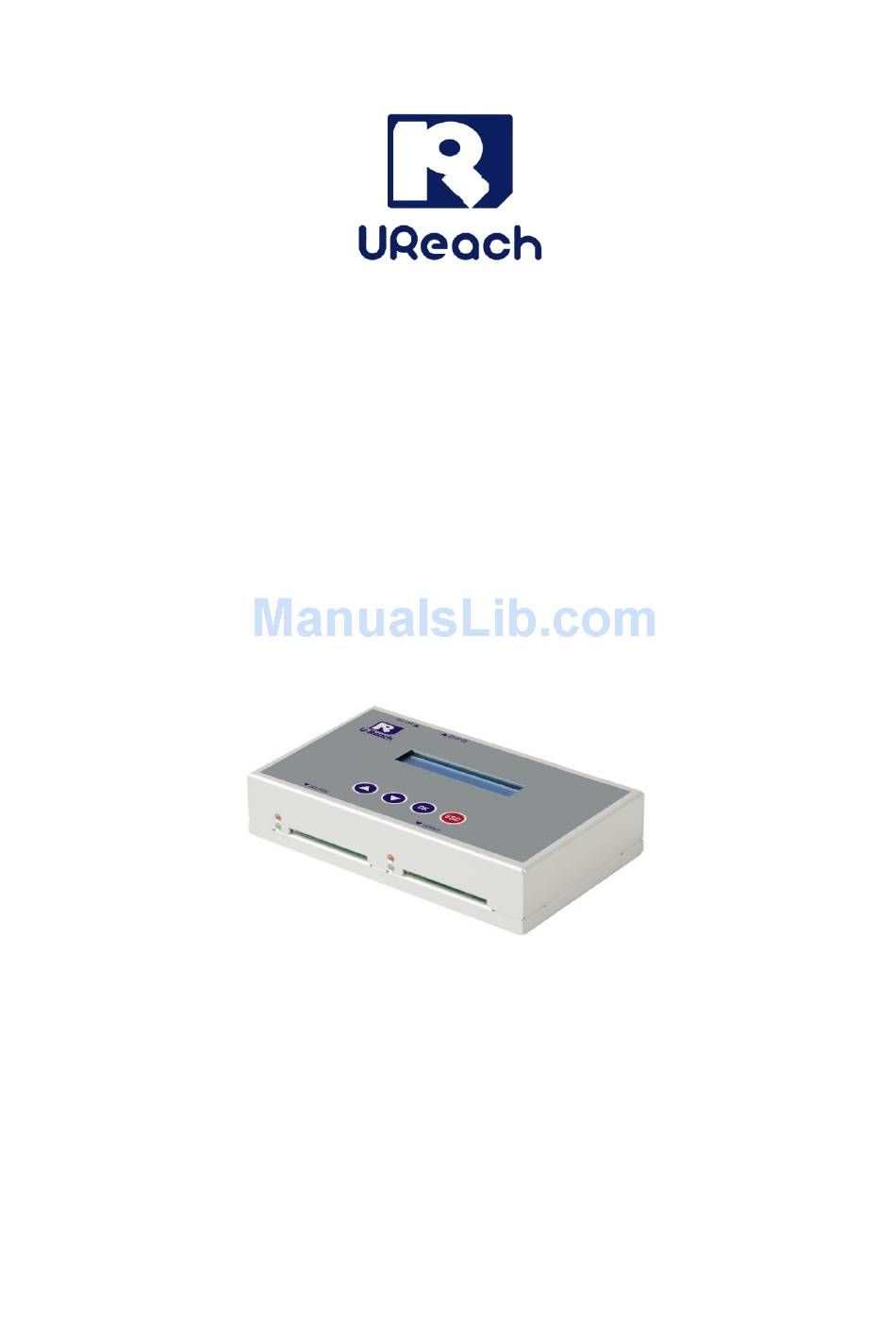

CF 1-1 Portable Copier
CF121
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF121 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Reach CF121

Summary of Contents for U-Reach CF121

  • Page 1 CF 1-1 Portable Copier CF121 User Manual V1.0...

  • Page 2: Table Of Contents

    Index Product Disclaimer ......................3 Warranty ........................... 3 Piracy Statement ....................... 3 Important Notice ....................... 4 Notice Symbols ........................4 Product Overview ......................5 Hardware Overview ......................6 Function Table ........................7 Function ..........................9 1. Copy ....................... 9 2. Compare ....................... 10 3.

  • Page 3: Product Disclaimer

    An extended warranty may be purchased. Telephone and email support is available for the life of the product as defined by U-Reach. All warranties are region specific and will be defined per the market region in which the product was purchased.

  • Page 4: Important Notice

     Using the Copy+Compare function provides the most flawless duplication.  Damage incurred due to noncompliance with U-Reach operating instructions will void  the warranty. Store the equipment safely when not in use and keep out of the reach of children.

  • Page 5: Product Overview

    Product Overview The new CF1-1 duplicator was designed with diversified media compatibility and high-speed performance in mind to not only flawlessly duplicate large capacity targets, but it is also portable so that you can copy CF cards anywhere. The user-friendly interface offers stress free operation with no steep learning curve to climb.

  • Page 6: Hardware Overview

    Hardware Overview Front View Control Button ▲: Backward ▼: Forward OK: Confirm Esc: Cancel Red: Fail Source Port Green: Pass LCD Display Product Name CF Duplicator 2. Compare Function Total Data Capacity Copy 7695M Function Copied % 0:27 (2)270M Copied Data Capacity Copied Time...

  • Page 7: Function Table

    Function Table Function Description 1. Copy Data and whole media duplication only. 2. Compare Bit-for-bit comparison between the source and target flash medias. First copies, then compares the target to the source once duplication 3. Copy+Compare is completed. This feature will show CF card’s brand, FW Version, S/N, capacity, file 4.
  • Page 8 7.3 Power Off Time Between Copy&Compare Sets the power off time between Copy and Compare. 7.4 CF Transfer Mode Sets data transmission speed. 7.5 Set to Default Reverts everything back to the original manufacturer settings.

  • Page 9: Function

    Function 1. Copy Before executing this function, please read “Setup Before Copy” to better understand the copy process and results. CF Duplicator Copy 7695M 1. Copy (Data) 0:27 (2)270M Copy Area Copy area setting ➡ [7. Setup >> 7.1 Copy Area] Before duplication, select the data area with "Copy area".

  • Page 10: Compare

    CF Duplicator 3.Copy+Compare ★ How to Ensure Duplication is Correct? CF121 provides the most precise "compare function" to provide our clients with the most reliable duplications. Using function [2. Compare] or [3. Copy+Compare] is strongly recommended for guaranteed copy accuracy.

  • Page 11: Show Cf Info

    4. Show CF Info Check CF card Information Go to function 4 and press "OK" to start to a read of CF card’s Information. It will show 4 Information. CF card’s brand, FW Version, S/N and capacity. Use ▲▼ to view the Information.

  • Page 12: Utility

    6. Utility 6.1 Do Format User is responsible for verification of targets’ quality. Testing a few Caution completed targets in a mass production environment for quality control is recommended. 6.1.1 Auto Format This function formats flash into FAT. Plug in the flash media and press "OK". The system will automatically detect its capacity, then format the media per its capacity.
  • Page 13 ★ Erase the Flash Card Flash data will be wiped out. Please make sure to backup all important Caution data before using this function. 6.2 Quick Erase This function erases flash data while keeping the format if the original flash format is FAT16/32.
  • Page 14 Note Use the▲▼buttons to view the status of each port during erase. 6.5 System Update Save the firmware in a CF card and insert the card to source port. Go to function [6.5] system Update, and press OK to update duplicator’s firmware. [Utility] 5.

  • Page 15: Setup

    7. Setup 7.1 Copy Area ➊ Copy Area: System and Files Also known as "Quick Copy”. The source’s format is automatically analyzed and if it’s recognizable, such as, FAT 16/32/64, NTFS, or Linux ext. 2/3/4, the system will copy the data only, rather than the entire flash.
  • Page 16 7.3 Power Off Time Between Copy+Compare The use of this setting is highly advised as it prevents data loss due to unstable flash. Users can set the time gap of power supply between copy and compare. The time gap can be set from 0 to 15 seconds. The default is "0". [Power Off Time Between] 7.4 CF Transfer Mode There are 7 CF transfer mode options to choose from.

  • Page 17: Specification

    Specification Model Name CF121 Targets Maximum 3.9GB/min(66MB/sec.) Transfer Speed *Actual performance is dependent on CF transfer speeds* 1:15 Supports the latest market available capacity Designed 1:23 Capacity support capability up-to 2TB 1:31 Specification Operating Type Standalone, FPGA based operation (Non-PC based)
