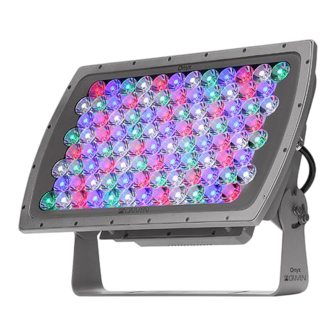

Griven Onyx User Manual

Onyx / Onyx XQ
AL4052 / AL4436
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Inrush current / Corrente di spunto
Power / Potenza massima
Nominal current / Corrente nominale
Power factor / Rifasamento
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche
Dimensions
12,5mm
0,49in
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.00
Date: 11/06/2018
96 High output LEDS additive syntesis: RGBW-millions of colours, DW- from 2700°K to 6500°K
Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
AL4052
17,7 Kg (39 Lbs)
Iron/Alluminum, scratch resistant paint
-40°C to 50°C ( -40°F to122°F)
100-277 VAC 50/60Hz
70A @230VAC cold start
1,38A@230VAC
cos.φ = 0,98
USITT DMX-512 - RDM
4-5-6 (RGBW), 2-3 (DW), 1 (Monochromatic)
561mm
22,08in
.
551048
AL4436
IK10
IP66
310 W
1,29A@230VAC
Electronic
I
1,7m.
Ultraspot
157,5mm
6,20in
page 1 of 8
