GoboLED 500

CU0715

Power consumption

Nominal current

Power supply

Inrush current

Power factor

Electrical class

Weight

Operating temperature

IP rating

IK rating

Housing

Thermal protection

Cable

Control

Channels

Source & colors

Gobos

Other features

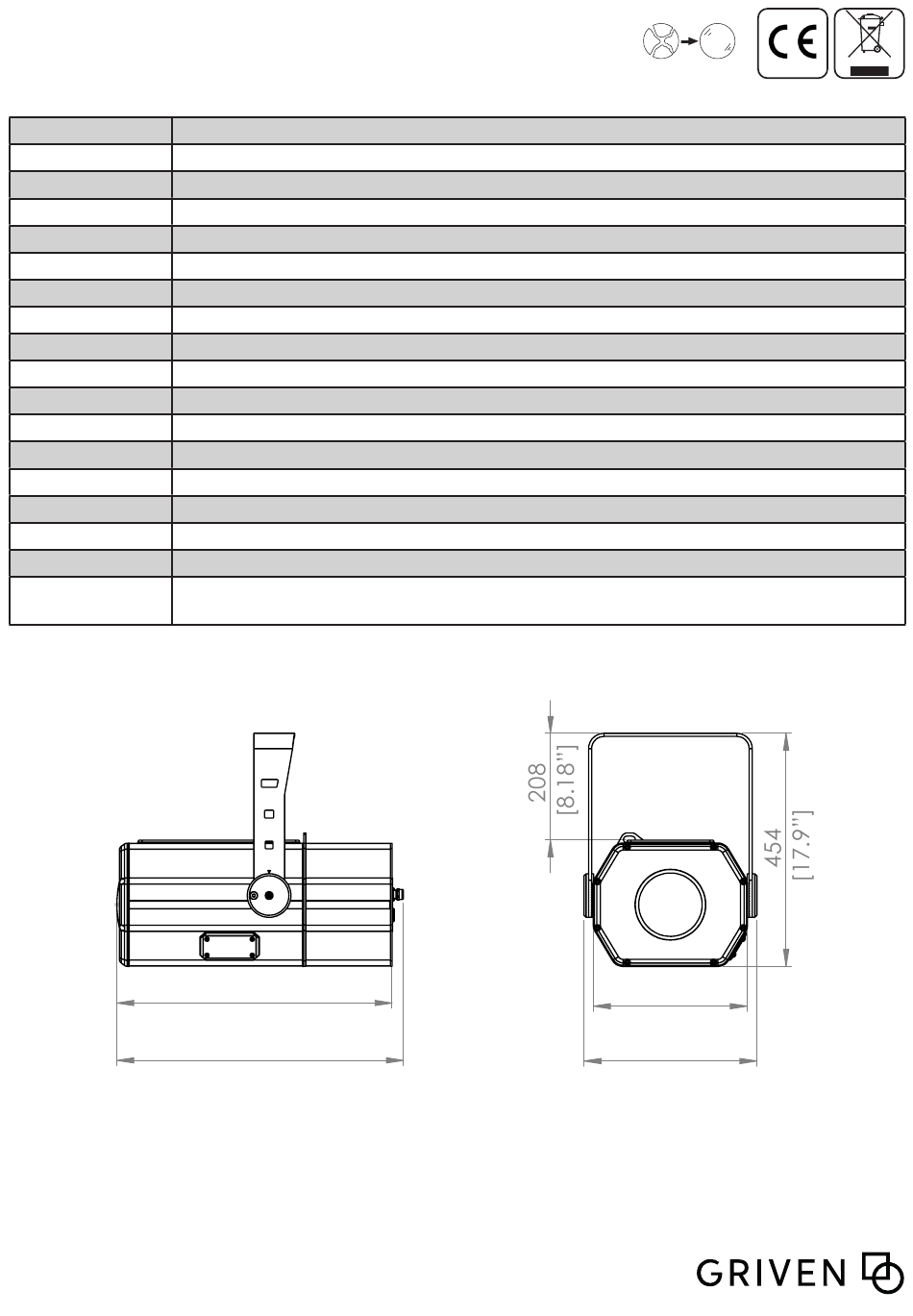

Dimensions

Griven S.r.l. - Via Bulgaria, 16

46042 Castel Goffredo

Mantova - Italy

User Manual

551093 Rev. 2.0

Date: 21/12/2023

Integrated electronic thermal protection management

1 high output LED 8000K, 8 colours+ white wheel

7 rotating gobos (ø27/22 mm) wheel + 4 fixed gobos plus effect wheel

2 prisms, linear 0-100% dimmer, strobe function (27.7 fps max), pulse and zap effect,

electronic blackout, motorized electronic focus, motorized linear zoom

536

[21"]

559

[22"]

Tel. +39.0376.779483

E-mail: sales@griven.com

Web: www.griven.com

400 W (LED+ motors + Heater)

1.8 A (LED+ motors + Heater)

100 - 240 VAC 50/60Hz

35 A @ 230 VAC, cold start, 1800 μs.

cos.φ= 0.95

30 Kg

-30°C to +50°C ( -22°F to 122°F )

IP66

IK07

Steel/alluminium, scratch resistant paint

1.5 m

USITT DMX-512, RDM

developing and improving all its products.

We reserve the right to change speciﬁcations without

prior notiﬁcation

300

[11.8"]

337

[13.7"]

page 1 of 20

Need help?

Do you have a question about the CU0715 and is the answer not in the manual?

Questions and answers

Summary of Contents for Griven CU0715

Page 1 Dimensions [21”] [11.8”] [13.7”] [22”] page 1 of 20 © Copyright Griven 2020 - GRIVEN S.r.l. is continuously Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 developing and improving all its products. E-mail: sales@griven.com 46042 Castel Goffredo We reserve the right to change speciﬁcations without Web: www.griven.com...
Page 2 Important notices - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the constructi operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
Page 3 Installation +45°/-45° A= M12 screw B=M8 screw CAUTION: prolonged staring at the LED source should be avoided by placing the fixture in a proper position. GoboLED 500 page 3 of 20...
Page 4 GR0250 safety cable ( sold separately) Preliminary operations In order to connect the unit to a DMX controller, pull out the input and output DMX cables from the back of the fixture. Follow the below reported instructions. Undo the 4 screws of the metal cover. Remove the cover and pull the cables out.
Page 5 Connection RED= DMX + DRAIN WIRE = GND BLACK= DMX - RED= DMX + DRAIN WIRE = GND BLACK= DMX - Blue= N (Neutral) Yellow/Green=GND Brown=L (Line) ATTENZIONE - WARNING ITA: I collegamenti dei cavi devono essere effettuati utilizzando il kit di collegamento opzionale. Seguire le istruzioni fornite insieme al kit di connessione.
Page 6 MENU button functions: ENTER button functions: UP button functions: DOWN button functions: Navigation mode: Navigation mode: Navigation mode: Navigation mode: -access the menu -access sub-menu -scroll down the menu -scroll up the menu -exit the menu Edit mode: Edit mode: Edit mode: Edit mode: -decrease the selected...
Page 7 ENTER ENTER ENTER >Main >Automatic >Program1 S01 >Scene DOWN ENTER Automatic Scene Program 1 Select scene Con rm DOWN Edit Scene 1 Program 1 from 1 to 30 scene DOWN ENTER >Program1 S01 Reset >Automatic DOWN Same as Program 1 Program 2 ENTER >Program1 S01...
Page 8 Automatic Master function ENTER >Address No programs running. The asterisk >No DMX aside indicates the active status. No DMX Hold DOWN ENTER >No DMX It runs Program #1. Play program 1 DOWN ENTER >No DMX >No DMX It runs Program #2. Play program 2 Play program 2 MENU...
Page 9 ENTER ENTER ENTER >Main Utility Shut-off time Utility Shut-off time DOWN ENTER Shut-off time 1 minute It sets the idle time after which DOWN DOWN the display turns o . ENTER Shut-off time 5 minutes DOWN ENTER Shut-off time 60 minutes It sets the speed of the fan: DOWN ENTER...
Page 10 ENTER ENTER ENTER ENTER >Information >Main >Information xxxxHxxM 0000H00M Fixture time Resettable time Information RESET ? RESET DONE DOWN DOWN ENTER >Information Serial Number Serial number xxxxx DOWN Back to “Address”. ENTER Software release >Information H:0000 F:0000 Software release DOWN NO ERROR ENTER >Information...
Page 11 DMX Chart Chn.l Function Values Led off DIMMING LED 6~240 Proportional dimming (Min. to Max.) 241~255 Led On No effect 6~10 Reset ( wait 5 seconds to activate ) 11~20 Pulse up 1 (slow) 21~30 Pulse up 2 31~40 Pulse up 3 41~50 Pulse up 4 51~60...
Page 12 Chn.l Function Values 69~73 Pink 74~82 Pink + Orrange 83~87 Orange 88~96 Orange + CTO 97~101 102~110 CTO + UV 111~115 116~125 UV + White 126~132 White 133~183 Proportional clockwise rotation 184~194 White 195~244 Proportional counterclockwise rotation 245~255 White 0~15 Open 16~30 Gobo 1...
Page 13 • On / Off identification: This command is used to identify the fixture you want to get access to (the identification happens by switching on all the LEDs at full intensity). • Manufacturer: it displays the name of the manufacturer (Griven). • Model description: it displays the fixture’s model.
Page 14 Configuration example Fixture 1 Fixture 1 Fixture 1 Fixture 1 DMX Addr: 001 DMX Addr: 014 DMX Addr: 027 DMX Addr: xxx DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT A= DMX controller B= 100-240 VAC 50/60 Hz C= 120 Ω...
Page 15 Gobos replacing ( rotating gobo wheel ) WARNING ! Disconnect the unit from mains supply prior to servicing. Undo the six screws to remove Locate the rotating gobo wheel. Lift the desired gobo holder. the cover. Ø27 mm ( max size of the gobo ) Ø22 mm (max size of the image) Put the tool provided along with Pull out the gobo holder.
Page 16 Fixed gobo wheel replacing WARNING ! Disconnect the unit from mains supply prior to servicing. Undo the six screws to remove Locate the fixed gobo wheel. the cover. Rotate the wheel manually until it reaches the position shown above, then loosen the two screws by using the tool provided.
Page 17 140mm Insert the heads of the screws in the bigger slots Push the wheel until the screws reach the end of the slots. of the new wheel. Tight the two screws by using the tool provided. At the end of the operations, close the cover by well cross-tightening the screws.
Page 18 WARNING! when replacing the gobos in the gobo wheel, the points position below must be respected. GoboLED 500 page 18 of 20...
Page 19 Gobos 7 integrated dichroic gobos available with the interchangeable rotating gobos wheel. ø 27 mm ø 22 mm Metal and dichroic Dichroic Dichroic Dichroic gobo size Dichroic Dichroic Dichroic Dichroic 4 printed gobos available with the xed gobos + animation e ect wheel. Additional metal gobos shipped with GOBOLED 500 Metal Metal...
Page 20 NOTE GoboLED 500 page 20 of 20...
