Simplex 4010ES Quick Reference Manual page 4

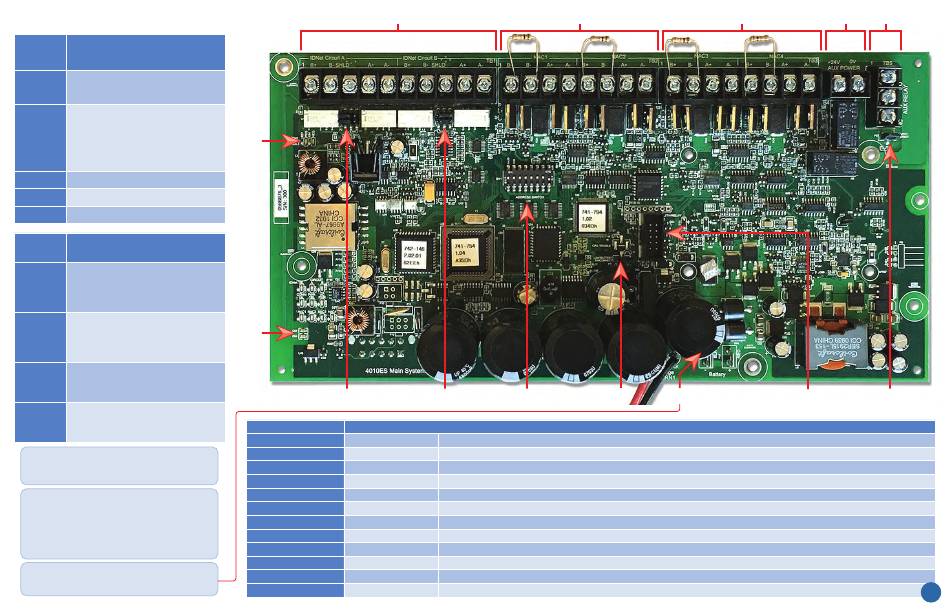

SIMPLEX 4010ES with MSS Main Board
Terminal
Block Descrip�on
and Switch
Single Channel, Dual Loop IDNet+ Circuit
TB1 which is electrically isolated and has
its own earth fault detec�on circuit
NAC wiring connec�ons.
These circuits are rated for Special
Applica�on and for regulated 24 VDC
TB2 & TB3
opera�on per UL864, 9th Edi�on.
(See 4010ES Installa�on Instruc�ons
for more details.)
TB4
24V non-rese�able Aux Power
TB5 Form C Programmable Aux Relay
SW1
Card Address Switch
P Connector
Descrip�on
and Switch
IDNet CIRCUIT B
CLASS B (Note 1)
P1
CLASS A, X
1-3, 2-4, 3-5, 4-6 (DEFAULT)
IDNet CIRCUIT B
CLASS B (Note 1)
P2
CLASS A, X
1-3, 2-4, 3-5, 4-6 (DEFAULT)
EARTH DETECT (Note 2)
ENABLE / DISABLE
P3
1-2 (DEFAULT) 2-3
LOW BATTERY DISCONNECT
DISABLE (DOMESTIC) ENABLE (CANADA)
P7
1-2 (DEFAULT) 2-3
Note 1: When jumpers are set for Class B on IDNet, you may
use both the B-side and the A-side to wire devices.
Thus, for Circuit B, you can have two pairs of wires per side or
four branches per circuit.
Note 2: Only one power module should be set for earth fault
monitoring for each loca�on within a system.
Normally, the MSS is set to monitor for earth faults. The earth
fault detec�on circuit detects a 10 Kohms (or less) stray
impedance to earth ground. The Expansion Ba�ery Charger
(XBC) may also be set to monitor for earth faults. If the XBC is
used to provide ba�ery backup for a 4010ES panel, disable
the earth fault detec�on on the XBC.
Note: The 4010ES ba�ery size is 33 Ah in the one-bay box and
50 Ah in the two-bay box.
The MSS charger is listed for 110 Ah UL and 50Ah ULC.
TB1
LED
1 & 2
LED
3 & 12
P1
P Connector & Switch
LED 1 IDNet POS. EARTH
LED 2 IDNet NEG. EARTH
LED 3
IDNet
LED 4 IDNet CIRCUIT A
LED 5 IDNet CIRCUIT B
LED 6 4100 COMMS
LED 7 GENERAL POWER TRBL
LED 8 AC POWER
LED 9 NAC 1
LED 10 NAC 2
LED 11
NAC 3
LED 12 NAC 4
TB2
P2 SW1 Card Address Switch P7
Descrip�on
ON = IDNet POS. EARTH
ON = IDNet NEG. EARTH
STEADY = NO DEVICE DETECTED BLINK = SHORT CIRCUIT TRBL
ON = CLASS A / OPEN TRBL
ON = CLASS A / OPEN TRBL
ON = COMM LOSS
STEADY = OVERCURRENT SINGLE BLINK = POS. EARTH DOUBLE BLINK = NEG. EARTH TRIPLE BLINK = BARRERY TRBL QUAD BLINK = CHARGER TRBL
ON = MSS POWER FROM AC MAIN
NAC 1 TRBL OR NAC 1 "ON"
NAC 1 TRBL OR NAC 2 "ON"
NAC 1 TRBL OR NAC 3 "ON"
NAC 1 TRBL OR NAC 4 "ON"
TB3 TB4
Battery Connections Optional City
or Relay Card
TB5
P3
