REVOLUTION SP FAN
MOTOR BRACKET

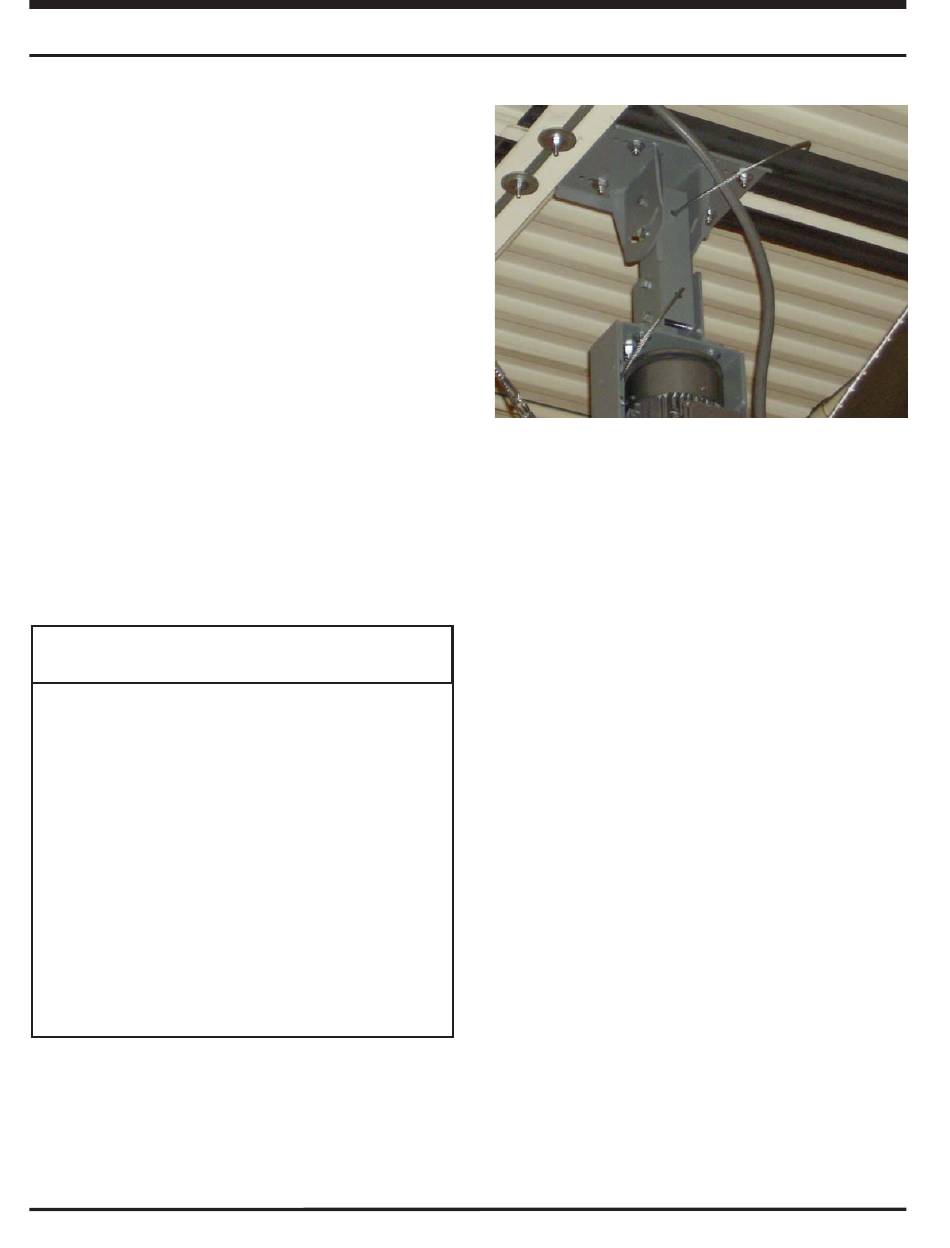

ATTACHMENT OF MOTOR BRACKET
The motor bracket attaches to the extension
tube with (2) ½" x 4½" long – grade 8 bolts,
washers and lock nuts. Position the motor
bracket so that one angle is on each side of the
extension tube. The bolts can be inserted
through the holes in the angles at the top of the
motor bracket and through the extension tube
and back through the second angle. Tighten
both lock nuts securely. When an extended
down tube is used, the smaller square tubing
(3" x 3") will telescope inside the larger square
tubing (3.5" x 3.5") The brackets on the top of
the motor bracket are bolted in slots to allow
the larger tube to bolt to the top of the motor.
The 3" x 3" tube should always bolt to the
ceiling bracket.
If the fan assembly is mounted directly to the
ceiling bracket without an extension tube, you
will need to purchase (4) ½" x ½" grade 8 bolts
locally to bolt the brackets together properfspy.
I M P O R TA N T ! ! !
SAFETY CABLES
Cables are included with this kit to wrap
around the bolted brackets at the ceiling and
the top of the extension tube. A second
cable should be wrapped through the bottom
of the extension tube and through the top of
the motor housing. When installing with
adjustable length extension tubes, a third
cable should be used to secure the center
bolted joint of the extension tubes. These
cables support the fan to the ceiling if one of
the bolted joints were to come loose.
Secure the cables with the cable clamps that
are provided. See figures to the right.
8
Pub. No. RFSP Rev. 5 - December 2010
