REVOLUTION SP FAN

MOTOR WIRING

The fan motor will receive three phase power
from the fan control box even if single phase
power is provided to the control box. Remove

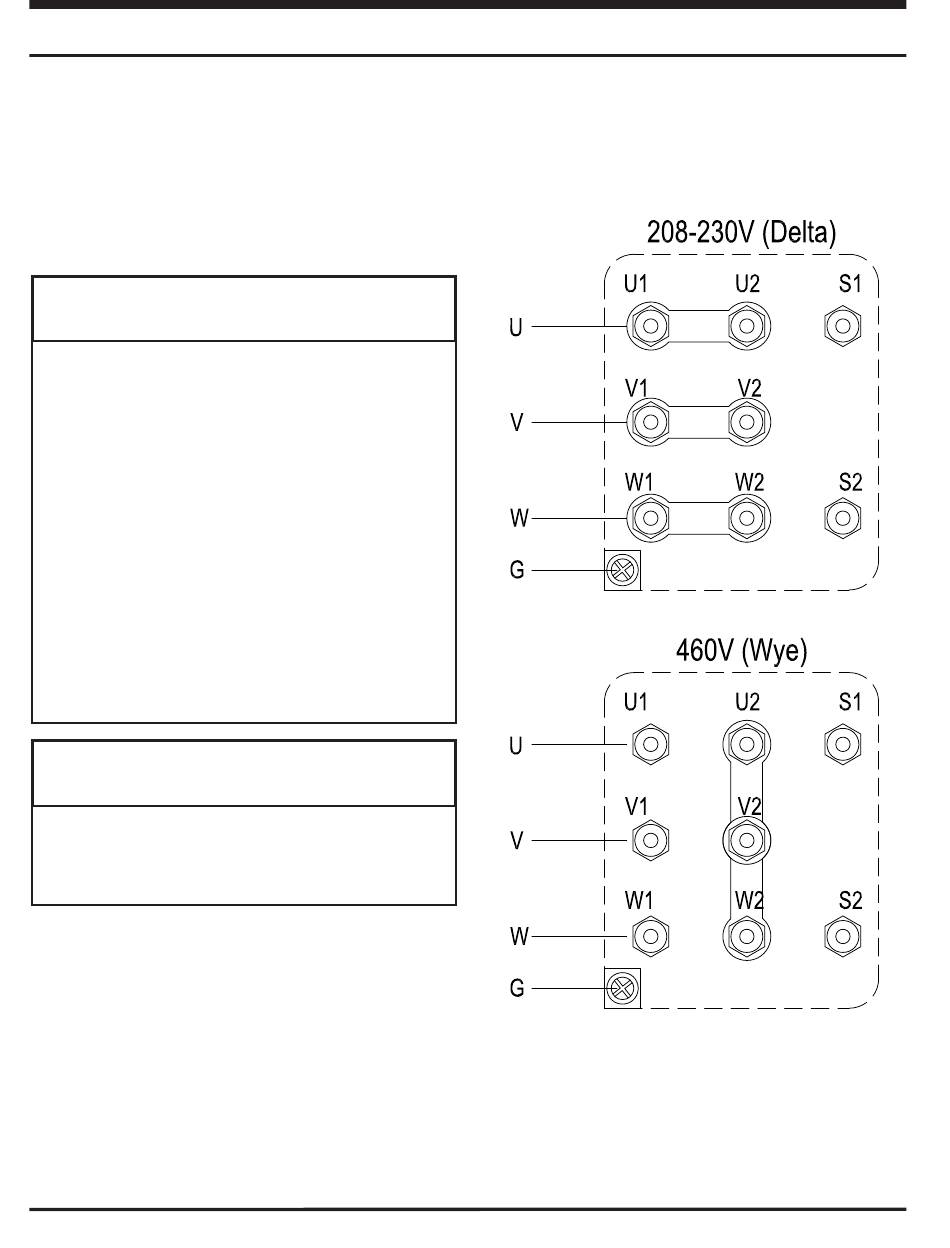

the cover from the motor junction box. Change
the wire leads as necessary for high or low
voltage. See the diagrams on this page below
for the appropriate wiring.
I M P O R TA N T ! ! !
Use one of the wire types listed below to
connect the fan control box to the motor.
Acceptable unshielded cable types:
THHN / THNW, rated for 600V and
75 deg. to 90 deg. Celsius
Acceptable shielded cable types:
RHH / RHW-2, rated for 600V and 75
deg to 90 deg. Celsius
Belden 29501 through 29507
RHH / RHW-2, tray rated for 600V
and 75 deg. to 90 deg. Celsius
Shawflex 2ACD / 3ACD or
equivalent.
I M P O R TA N T ! ! !
Do not use solid core wiring of any size
or insulation class for controller output /
motor leads.
CONDUIT RESTRICTIONS
AC supply lines for a controller MAY
share the same conduit with AC supply
lines for one or more additional
controllers.
AC supply lines for a controller and
output / motor leads for the same
controller or another controller MAY NOT
share the same conduit.
12
The conduit with the incoming power and the
conduit with the power going to the motor
should be separated by a minumun of 6"(152
mm)
