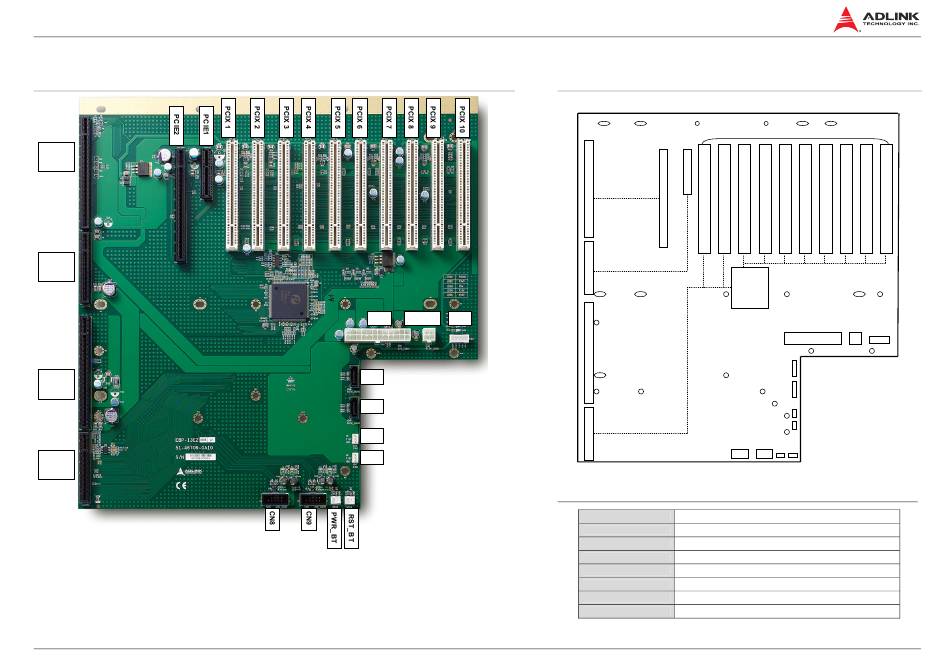

EBP-13E2
PICMG 1.3 Backplane

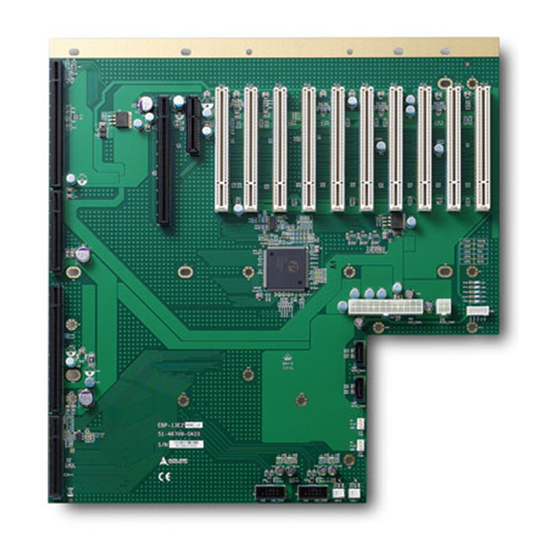

Backplane Layout
SHB
Slot 1
SHB
Slot 2
SHB
Slot 3
SHB
Slot 4
Part No.: 50-1Z070-1000
Quick Reference Guide
EBP-13E2
PICMG 1.3 Backplane
ATX12V
ATX
CN3
CN4
SATA
CN5
CN6
FAN
CN7
USB
— Rev. 1.00
Block Diagram
SHB
PCIe
PCIe
x16 Slot
x4 Slot
Specifications
Form Factor
PICMG 1.3 Backplane for full-size SHB
Dimensions
328 mm x 318 mm
SHB Slots
1
PCI Express Slots
1 PCIe x16, 1 PCIe x4
PCI slots
10
Peripheral Connectors
2 USB connectors (4 ports), 2 SATA connectors
Misc. Connectors
2 Fan connectors, Power/Reset connectors
Power Requirement
ATX (1x 24-pin ATX connector, 1x 4-pin ATX 12V connector)
PCI slots
PCI-to-PCI
Bridge
PCI Bus
24- pin ATX PWR
ATX 12V
LED Conn.
SATA 1/2
FAN 1/2
USB 1/2
PWR
RST
January 27, 2011
Status
Advertisement
Related Manuals for ADLINK Technology EBP-13E2
Summary of Contents for ADLINK Technology EBP-13E2
- Page 1 Quick Reference Guide EBP-13E2 PICMG 1.3 Backplane — Rev. 1.00 EBP-13E2 PICMG 1.3 Backplane Backplane Layout Block Diagram PCI slots PCIe PCIe x16 Slot x4 Slot Slot 1 Slot 2 PCI-to-PCI Bridge ATX12V PCI Bus Status 24- pin ATX PWR ATX 12V LED Conn.
- Page 2 Contact ADLINK Signal Web: http://www.adlinktech.com Ground Service: service@adlinktech.com +3.3V Tel: +886-2-8226-5877 Fax: +886-2-8226-5717 +12V -12V Copyright © 2011 ADLINK Technology Inc. Contents and specifications subject to change without notice. Note: Pin signals are actual voltages. Part No.: 50-1Z070-1000 January 27, 2011...
