Mocka Essentials 3 Cube
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
x16
x8
x16
E
F
G
x4
x12
x2
x4

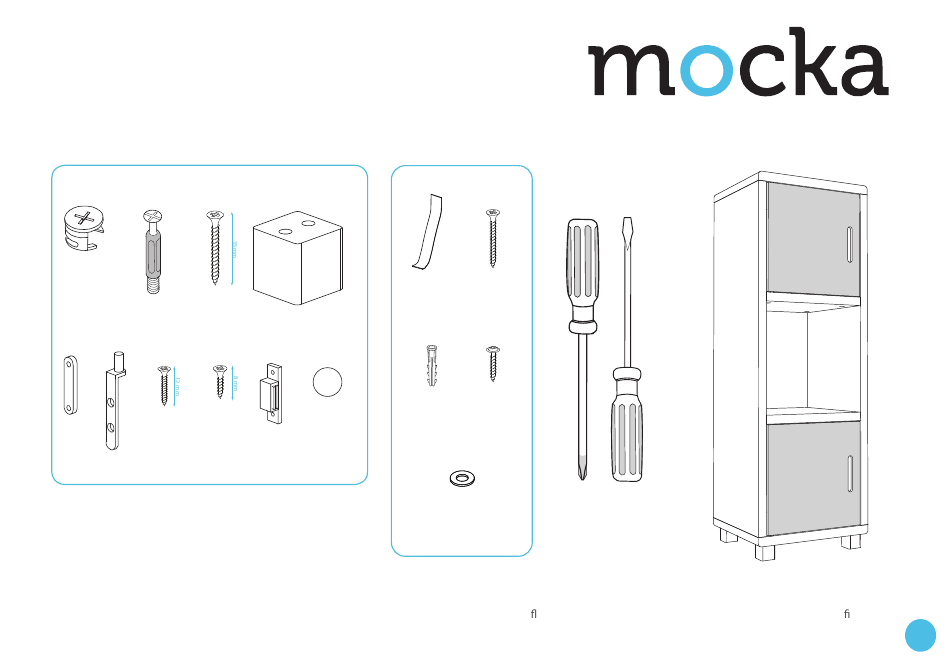

Hardware Supplied
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child attempts
to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
mocka.co.nz | mocka.com.au
C
D
x4
H
I
J
x16
x2
W
Wall
Safety
Screw
Strap
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
Phillips & Flathead
x1
screwdrivers required
Wall Strap
*We recommend using a athead screwdriver to tighten all locking nuts 100% before rt use.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Essentials 3 Cube
Summary of Contents for Mocka Essentials 3 Cube
- Page 1 Mocka Essentials 3 Cube Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Wall Safety Screw Strap wall r/washer anchor screw Hardware Supplied washer Phillips & Flathead WARNING: Any furniture that is not anchored to a wall has the screwdrivers required potential to tip over in certain circumstances, i.e.
- Page 2 Mocka Essentials 3 Cube Assembly Instructions First screw hardware (B) into side panels [1] and [4]. Slide both panels Tighten (A) with screwdriver. Slide cupboard back panel into grooves. together with the middle shelf, making sure the grooved ends line up.
- Page 3 Mocka Essentials 3 Cube Assembly Instructions Screw hardware (B) into base panel [7]. Place base panel on top of Attach feet blocks (D) to base panel [7] using long screws (C) and the side panels while sliding the ends of (B) into holes on the top of side pre-drilled holes in the base panel.
- Page 4 Mocka Essentials 3 Cube Assembly Instructions Flip the unit over so the feet stand on the floor. Attach the magnetic clip Screw hinge pins (F) into the holes in the cupboard door [5]. Then lower (I) inside the cupboard using screws (G). Check that the door closes.
- Page 5 Mocka Essentials 3 Cube Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Screw in hardware (B) into top panel [8]. Place panel on top of side Fasten clip plate (E) to the cupboard door using screws (H). Attach panels and slide the ends of (B) into holes. Insert hardware(A) into magnetic clip (I) inside the cupboard using screws (G).
- Page 6 Mocka Essentials 3 Cube Assembly Instructions Safety Strap Strap Washer wall anchor wall wall screw screw Once assembled lift furniture into place, do not drag. Attach safety Use a drill to create a small hole lining up with the top of the safety strap strap (W) to the top of the back side of the unit using screw (Y).
